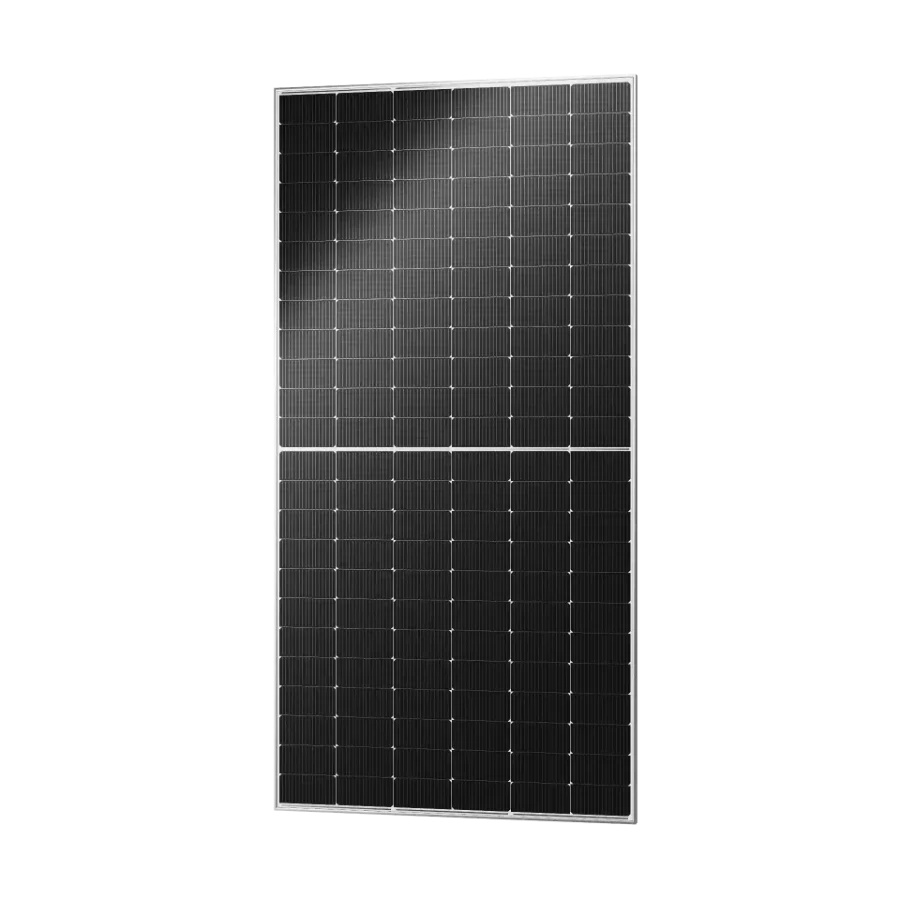

BYD NLBK-36 570 N-Type TOPCon Bifacial Monocrystalline Solar Panel

Model NLBK-36 570 | N-Type TOPCon | 144 Half-Cell Monocrystalline | Bifacial | 1500V System Voltage

570 W

Max Power Output

22.07%

Module Efficiency

144

N-Type TOPCon

Product Overview

The BYD NLBK-36 570 N-Type TOPCon bifacial monocrystalline solar panel is designed for high power commercial and utility scale projects. This advanced module delivers up to 570 watts of front side output with outstanding efficiency of 22.07 percent at standard test conditions. N-type TOPCon cell technology is used to reduce light induced degradation and secure long term energy yield. The bifacial construction harvests additional energy from reflected light behind the array. A robust anodized aluminium frame and 2 millimetre tempered glass provide mechanical strength while keeping weight at 32 kilograms. The panel operates within a wide temperature range from minus 40 to 85 degrees Celsius. A 12 year product warranty and 30 year performance warranty support dependable operation in demanding environments. This module suits ground mount, rooftop or tracker installations requiring reliable high power density from a trusted global manufacturer.

Key Benefits

High power density for large projects: Each BYD NLBK-36 570 module delivers up to 570 watts from a compact footprint. This high output reduces the total number of panels needed on commercial rooftops and ground mount systems.

Advanced N-type TOPCon reliability: N-type TOPCon cells have lower degradation and excellent passivated contacts. This design helps maintain strong energy production over the 30 year power warranty period.

Bifacial gain for higher energy yield: The bifacial construction captures light from both front and rear surfaces. Projects on reflective surfaces such as concrete, white roofs or light gravel can benefit from increased kilowatt hour output.

Optimized for modern high voltage systems: With a 1500 volt maximum system voltage, this module fits long strings and utility scale arrays. Higher DC voltage enables lower balance of system costs and increased inverter efficiency.

Durable construction for harsh climates: An IP68 junction box, anodized aluminium frame and 2 millimetre glass ensure dependable protection. The panel operates from minus 40 to 85 degrees Celsius and handles demanding outdoor conditions.

How It Works

The BYD NLBK-36 570 solar panel converts sunlight into usable direct current power through high efficiency N-type TOPCon cells. When sunlight hits the monocrystalline cells on the front surface, electrons are energized and flow through the module circuit. The bifacial design allows the rear side to capture additional light reflected from the ground or nearby surfaces. This rear side contribution increases the total power output compared with traditional monofacial modules. Electrical energy produced by the module flows through the IP68 junction box and MC4 compatible cables to the string wiring. An inverter then converts the direct current into alternating current suitable for buildings or grid connection. The panel is engineered to perform across a wide temperature range with carefully controlled temperature coefficients. This helps maintain consistent output during hot summer days and colder seasons on site.

N-Type TOPCon cell conversion: N-type TOPCon cells feature passivated contacts that reduce recombination losses. More of the absorbed sunlight gets converted into useful electrical energy rather than wasted as heat. The low degradation characteristics of N-type silicon maintain performance for many years of operation.

Bifacial rear side energy capture: The panel includes a rear side that responds to reflected and diffuse light behind the array. On bright, reflective sites, this rear side can add meaningful extra energy production. Designers can position the module with adequate height and spacing to maximize bifacial gain.

System integration and protection: Current produced by the cells is collected in the junction box and routed through 4 square millimetre cables. The IP68 rated enclosure protects diodes and connections from moisture and dust ingress. In the array, strings of modules connect to inverters operating at up to 1500 volts system voltage.

Technical Specifications

Module Type	Monocrystalline N-Type TOPCon Bifacial
Model Number	NLBK-36 570
Power Range	570 – 600 Wp
Maximum Power (Pmax, STC)	570 Wp
Module Efficiency (STC)	22.07%
Voltage at Maximum Power (Vmpp, STC)	42.8 V
Current at Maximum Power (Impp, STC)	13.32 A
Open Circuit Voltage (Voc, STC)	52.06 V
Short Circuit Current (Isc, STC)	13.74 A
Power Tolerance	0 ~ +0.85%
Total Degradation After 30 Years	87.4% power retained
Annual Degradation Rate	0.42% per year (approximate)
NOCT Power (Pmax)	432.4 Wp
NOCT Voltage at Maximum Power (Vmpp)	41 V
NOCT Current at Maximum Power (Impp)	10.54 A
NOCT Open Circuit Voltage (Voc)	49.2 V
NOCT Short Circuit Current (Isc)	11.09 A
Nominal Operating Cell Temperature	45 ± 2 °C
Operating Temperature Range	-40 to 85 °C
Temperature Coefficient of Pmax	-0.278% / °C
Temperature Coefficient of Voc	-0.239% / °C
Temperature Coefficient of Isc	+0.044% / °C
Maximum System Voltage (DC)	1500 V
Series Fuse Rating	30 A
Panel Dimensions (H × W × D)	2278 × 1134 × 30 mm
Weight	32 kg
Cell Count and Layout	144 half-cut monocrystalline cells
Glass Thickness	2 mm
Frame Type	Anodized aluminium frame
Junction Box Protection Class	IP68 with 3 bypass diodes
Cable Cross Section	4 mm²
Manufacturer	BYD Company Limited, China

Certifications & Compliance

Certifications: Designed to meet major IEC and UL solar module standards; refer to datasheet for full listing.
Inverter Compatibility: Suitable for modern string and central inverters rated up to 1500 V DC input.
Environmental: Engineered for outdoor use with IP68 junction box and wide operating temperature range.
Warranty: 12 year product workmanship warranty and 30 year performance warranty with at least 87.4% output at year 30.
