BYD 580W Solar Panel (NLBK-36)

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-1948

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →$0.31/W

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-1948
Unit price: $0.31/W

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

BYD 580W Solar Panel (NLBK-36) $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

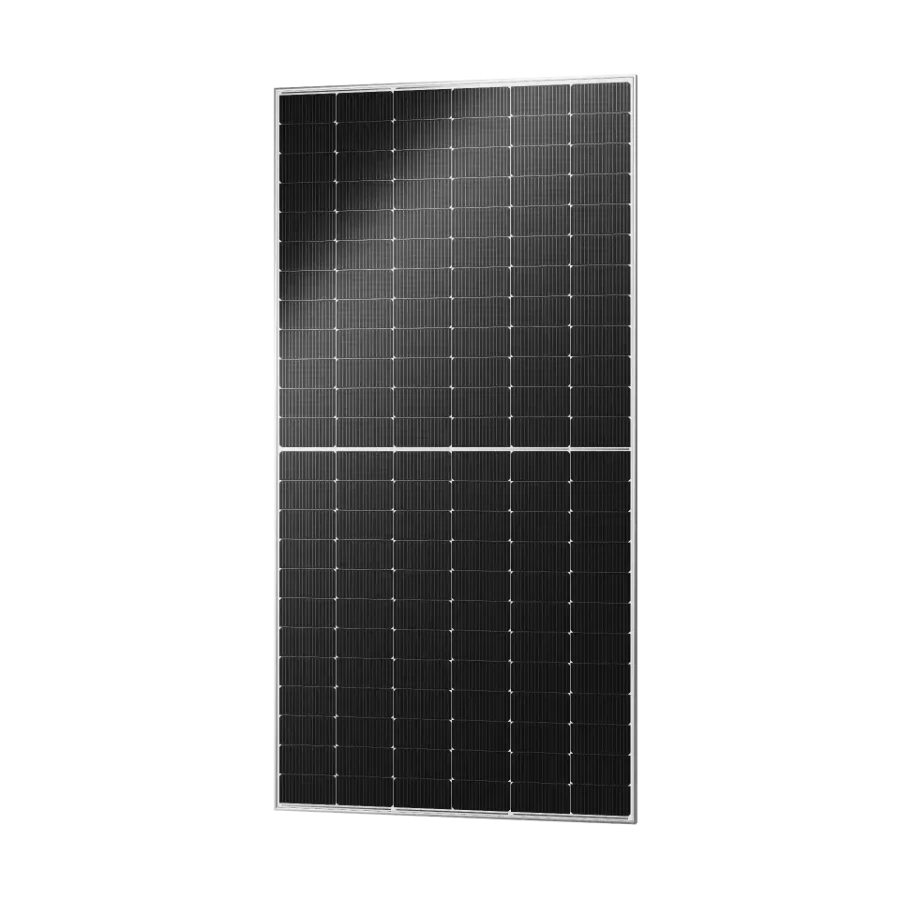

BYD NLBK-36 580W N-Type TOPCon Bifacial Monocrystalline Solar Panel

Model NLBK-36 580 | N-Type TOPCon | 144 Half-Cell Monocrystalline | Bifacial | 1500V System Voltage

580 W

Max Power Output

22.45%

Module Efficiency

144

N-Type TOPCon

Product Overview

The BYD NLBK-36 580W N-Type TOPCon Bifacial Monocrystalline Solar Panel is engineered for high performance in demanding commercial and utility projects. Its advanced N-type TOPCon cell technology delivers excellent efficiency and reliable power generation across a wide range of climates. With a rated maximum power of 580 watts, the module supports modern high-voltage arrays using a 1500 volt maximum system voltage. Bifacial construction allows the panel to harvest light from the front and rear sides, which increases total energy yield over the life of the system.

This BYD NLBK-36 580 panel offers a module efficiency of up to 22.45 percent, placing it among the most space efficient options on the market. The power range for the series spans 570 to 600 watts, giving designers flexibility in string sizing and layout. A robust anodized aluminum frame and 2 millimeter glass are combined with IP68 junction boxes for long term durability. The panel has been designed to operate from minus 40 to 85 degrees Celsius, making it suitable for hot deserts and cold northern sites alike.

The product warranty of 12 years protects against manufacturing defects, while a 30 year power warranty supports long term investment planning. Degradation is controlled, with 87.4 percent of initial power output maintained at the end of the warranty period. Tight power tolerance from 0 to plus 0.85 percent ensures consistent array behavior and reduces mismatch losses. With a manageable 32 kilogram weight and standard 2278 by 1134 millimeter footprint, this panel integrates smoothly into most mounting systems.

Key Benefits

High power density: The 580 watt nameplate rating and up to 23.23 percent series efficiency maximize energy output per module, allowing more power from the same roof or ground area.

Advanced N-type TOPCon cells: N-type TOPCon cell architecture reduces light induced degradation and improves low light behavior, supporting stable performance throughout the module lifespan.

Bifacial energy gain: Bifacial design captures reflected and diffuse light from the rear side, increasing total kilowatt hour production on reflective surfaces and optimized mounting structures.

Long term reliability: A 12 year product warranty and 30 year power warranty, with an 87.4 percent end of warranty power level, provide strong assurance for project owners and financiers.

Robust system integration: The 1500 volt maximum system voltage, 30 amp series fuse rating, and IP68 junction box allow safe integration into large commercial arrays with modern string inverters.

Wide operating temperature range: Operation from minus 40 to 85 degrees Celsius, combined with low temperature coefficients, supports reliable output in both hot and cold climates.

How It Works

The BYD NLBK-36 580 solar panel converts sunlight into direct current electricity using high efficiency monocrystalline N-type TOPCon cells. Each module contains 144 half cut cells arranged in series and parallel strings, which optimize voltage and current output. When sunlight strikes the cell surface, photons are absorbed and free electrons are generated, creating an electric current. The N-type cell structure reduces electron recombination losses and offers better resistance to common degradation mechanisms found in standard P-type cells.

The front side of the panel is protected by 2 millimeter tempered glass, which allows high light transmission while shielding the cells from weather and mechanical stress. The rear side of this bifacial module also participates in energy generation by capturing light reflected from the ground or nearby surfaces. An anodized aluminum frame adds rigidity, while the junction box and cables safely route the generated current toward inverters and balance of system components. When connected into strings, multiple modules feed DC power to a compatible inverter, which converts it into AC electricity for site loads or export to the grid.

N-type TOPCon cell conversion: N-type TOPCon cells use a passivated contact structure that reduces electrical losses at the cell surface. This structure allows more of the captured sunlight to be converted into usable electrical energy. Reduced susceptibility to light induced degradation helps maintain higher performance over many years of operation.

Bifacial energy capture: The module generates power from both the front and rear sides of the cell string. Front side energy comes from direct and diffuse sunlight, while the rear side harvests reflected light from surfaces such as concrete, white roofing, snow, or specialized reflective membranes. This additional backside contribution boosts total energy yield without increasing the footprint of the array.

System integration and performance stability: The module operates most efficiently around a nominal temperature of 45 degrees Celsius, with a low Pmax temperature coefficient of minus 0.278 percent per degree. As the module heats up, power loss remains limited compared with older technologies. The 1500 volt maximum system voltage and 30 amp series fuse rating allow long strings and efficient cabling layouts, while the IP68 junction box protects connections from moisture and dust.

Technical Specifications

Manufacturer	BYD Company Limited
Model Number	NLBK-36 580
Cell Technology	Monocrystalline N-type TOPCon
Cell Count and Type	144 half-cut cells
Technology	Bifacial, TOPCon, N-type
Power Range (Series)	570 Wp to 600 Wp
Nominal Maximum Power (Pmax) – High Variant	580 Wp
Nominal Maximum Power (Pmax) – Additional Variant	440 Wp
Power Tolerance	0 to +0.85 %
Panel Efficiency (module level)	22.45 %
Series Efficiency Range	22.07 % to 23.23 %
Voltage at Max Power (Vmpp) – 580 Wp	43.18 V
Current at Max Power (Impp) – 580 Wp	13.43 A
Open Circuit Voltage (Voc) – 580 Wp	52.69 V
Short Circuit Current (Isc) – 580 Wp	13.86 A
Voltage at Max Power (Vmpp) – 440 Wp	41.4 V
Current at Max Power (Impp) – 440 Wp	10.62 A
Open Circuit Voltage (Voc) – 440 Wp	49.8 V
Short Circuit Current (Isc) – 440 Wp	11.19 A
Nominal Operating Temperature	45 ± 2 °C
Operating Temperature Range	-40 °C to 85 °C
Temperature Coefficient of Pmax	-0.278 % / °C
Temperature Coefficient of Voc	-0.239 % / °C
Temperature Coefficient of Isc	0.044 % / °C
Maximum System Voltage (DC)	1500 V
Series Fuse Rating	30 A
Panel Dimensions (H × W × D)	2278 × 1134 × 30 mm
Weight	32 kg
Glass Thickness	2 mm
Frame Type	Anodized aluminium frame
Junction Box Diodes	3 bypass diodes
Junction Box Protection Class	IP68
Cable Cross Section	4 mm²

Certifications & Compliance

Certifications: Certified to major IEC and UL photovoltaic safety and performance standards, suitable for global commercial and utility projects.
Inverter Compatibility: Compatible with most modern 1000 V and 1500 V string and central inverters when designed within the specified electrical limits.
Environmental: Designed for harsh outdoor environments with IP68 junction box protection and materials selected for long term UV and weather resistance.
Warranty: 12 year product workmanship warranty and 30 year linear power warranty with 87.4 % minimum power output at year 30, subject to manufacturer terms.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
