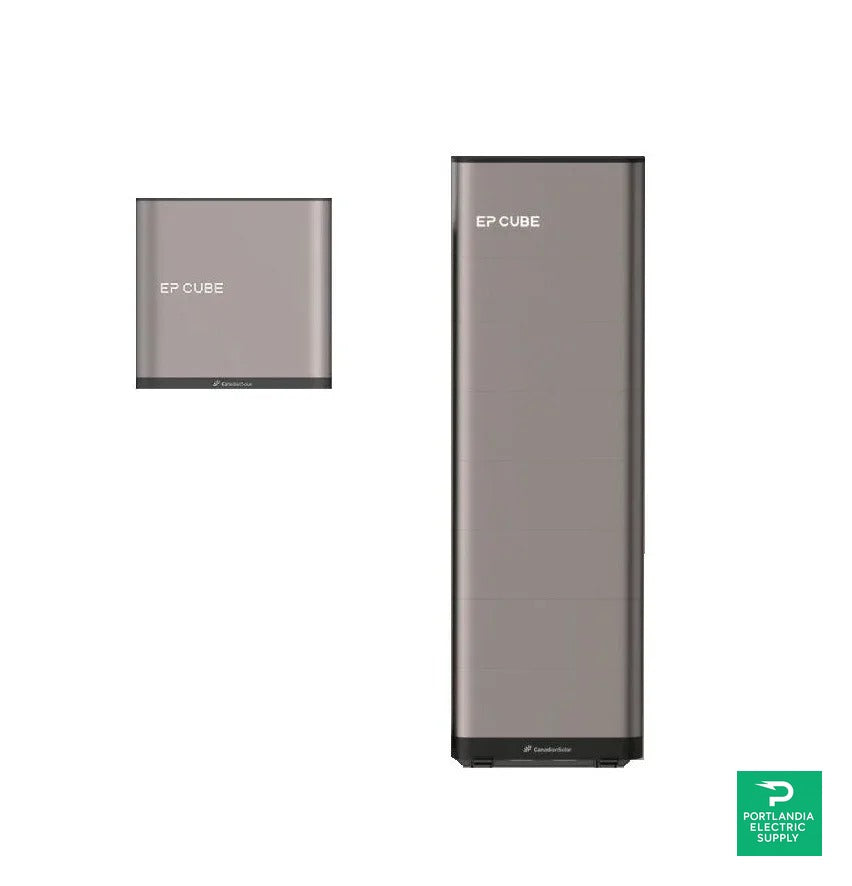

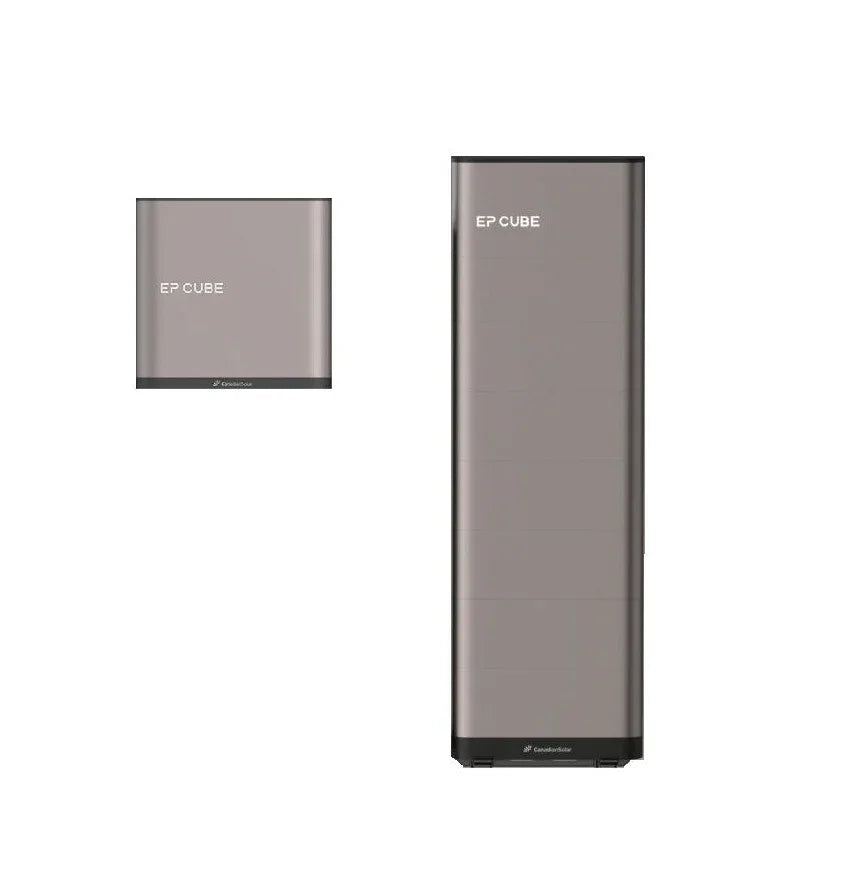

Canadian Solar EP Cube System 19.9 kWh Energy Storage System

The Canadian Solar EP Cube System (Model: Hybrid NA720G) is an advanced energy storage solution designed for efficient and reliable energy management. With a usable capacity of 19.9 kWh, this system is perfect for both residential and commercial applications, ensuring seamless integration with renewable energy sources like solar panels.

Product Features

Scalable Energy Storage

The EP Cube System offers a modular design, allowing users to expand their energy storage capacity according to their evolving needs. This makes it an ideal choice for homes or businesses looking to future-proof their energy systems.

Hybrid NA720G Technology

Engineered with cutting-edge hybrid technology, the system integrates seamlessly with single-phase and three-phase inverters, offering compatibility with various energy systems.

High Efficiency

Achieving an impressive round-trip efficiency, the EP Cube System maximizes energy utilization, reducing waste and operating costs. This ensures you get the most from your energy investments.

Compact and Lightweight Design

The EP Cube System features a sleek, space-saving design, allowing for easy installation and minimal space requirements. Its lightweight build further simplifies handling during setup.

Advanced Battery Management System

The integrated battery management system ensures optimal performance, protecting against overcharging, overheating, and other potential risks. This guarantees the system's reliability and longevity.

How It Works

Battery Configuration

The EP Cube System uses lithium iron phosphate (LFP) battery technology, renowned for its safety, durability, and eco-friendliness. The modular setup allows for flexible configurations to meet unique energy demands.

Smart Monitoring

Equipped with real-time monitoring and management capabilities, the EP Cube provides detailed insights into energy usage, system health, and performance. This enables users to optimize their energy consumption effectively.

Seamless Integration

The Hybrid NA720G supports integration with solar PV systems, allowing users to store excess solar energy during the day for use at night or during peak demand periods. This helps reduce dependence on the grid and lowers electricity costs.

Specifications

Specification Title	Specification Value
Usable Energy	19.9 kWh
Battery Technology	Lithium Iron Phosphate (LFP)
Nominal Voltage	400 V
Scalability	Expandable up to 119.9 kWh
Round-Trip Efficiency	96%
Operating Temperature	-10 °C to 50 °C
Enclosure Protection	IP65
Dimensions	System-specific dimensions (refer to datasheet)
Weight	System-specific weight (refer to datasheet)
Warranty	10 Years
Certification	UL9540, UL9540A, UL1973, UL1741

Compatibility

The EP Cube System is compatible with a wide range of inverters and can be seamlessly integrated into new or existing solar setups. For a complete list of compatible systems, refer to the official datasheet linked below.

Certification

The Canadian Solar EP Cube System is certified for safety and performance, meeting industry standards such as UL9540, UL9540A, UL1973, and UL1741.

Notes

• Designed for on-grid and off-grid applications.
• Compatible with various inverter brands and models.
• Supports integration with home automation systems.
