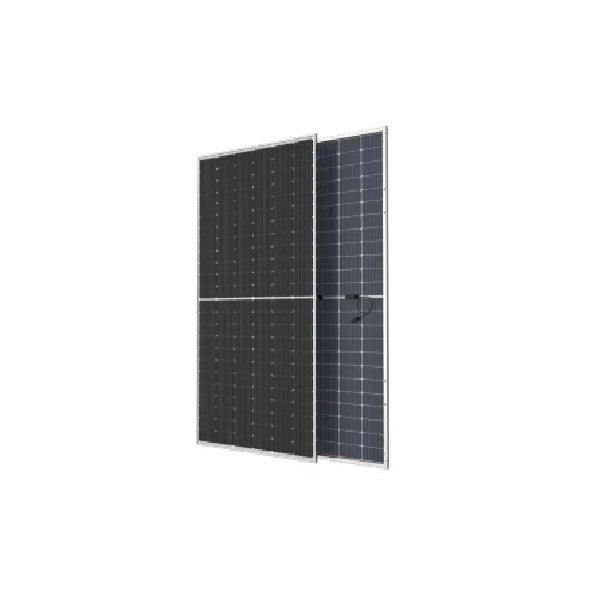

CECEP Solar CEC6-72-540TDHV

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

CECEP Solar CEC6-72-540TDHV

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-2441

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-2441

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

CECEP Solar CEC6-72-540TDHV $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

CECEP Solar CEC6-72-540TDHV 540–570W N-Type Bifacial Monocrystalline Solar Panel

Model CEC6-72-540TDHV | N-Type Mono PERC | 144 Half-Cell 182×91 mm | Bifacial | 1500V System Voltage

540 W

Max Power Output

20.9%

Module Efficiency

144

N-Type TOPCon

Product Overview

The CECEP Solar CEC6-72-540TDHV N-type bifacial monocrystalline solar panel is designed for high energy yield and long term reliability. With a front side power rating of 540 watts and module efficiency up to 20.9 percent, it suits commercial rooftops, carports and utility ground mounts. Bifacial N-type cell technology captures light on both sides and helps deliver more kilowatt hours per installed watt. A robust 1500 volt system rating supports modern string inverter designs with long strings. The module remains light enough for fast handling while still using durable 3.2 millimeter tempered glass. Customers gain strong performance in weak light, reduced degradation and a proven linear power warranty. This panel is produced by CECEP Solar Technology in China and is independently certified for safety and durability.

Key Benefits

High power density for constrained sites: The 540 watt rating and up to 20.9 percent efficiency allow more generation from limited roof or ground space. System designers can reduce module count while maintaining desired capacity.

Bifacial gain for lower LCOE: N-type bifacial cells capture reflected light from behind the module, which increases real world energy yield. This higher production helps reduce levelized cost of energy over the project life.

Robust long term performance: A total annual degradation rate of around 0.42 percent preserves output over decades. Power output remains at least 94.6 percent at year twelve and 87.4 percent by year thirty under the linear warranty.

Proven reliability in harsh climates: The module withstands extreme wind loads up to 2400 Pascal and snow loads up to 5400 Pascal. Operating temperature ranges from minus 40 to plus 85 degrees Celsius for wide climate compatibility.

Installer friendly design: A 32.6 kilogram weight and standard 2279 by 1134 millimeter frame allow efficient handling. Junction box, cable length and mounting hole layout support streamlined installation on many racking systems.

How It Works

This N-type bifacial solar module converts sunlight into direct current electricity using advanced monocrystalline cells. Each of the 144 half cut cells is wired in a series parallel arrangement to deliver 41.6 volts at maximum power and 12.99 amps under standard test conditions. Front side irradiance passes through the low iron tempered glass and strikes the high efficiency cells. At the same time, light reflected from the ground or roof is captured on the rear side and adds to total output. The produced direct current flows through the IP68 junction box and factory attached cables to a string inverter or hybrid inverter. The inverter converts direct current to alternating current for onsite consumption or export to the grid.

N-Type bifacial cell conversion: N-type monocrystalline cells use a different doping process which reduces light induced degradation. As light hits the cell surfaces, electrons are freed and driven by the internal electric field, creating usable current. The bifacial structure allows both front and rear surfaces to participate in this conversion process.

Module operating conditions: The panel is rated with a nominal operating temperature around 42 degrees Celsius plus or minus two degrees. Temperature coefficients for power, voltage and current describe how performance changes as cells heat or cool. System designers use these values to size strings within the 1500 volt limit and ensure safe operation during cold or hot weather.

Integration with system components: Factory fitted cables connect in series strings using compatible connectors to achieve target array voltage. These strings then feed an inverter that manages maximum power point tracking based on the module voltage and current characteristics. The inverter synchronizes with the utility grid or a battery system, so generated energy can power loads or be exported to earn credits.

Technical Specifications

Brand	CECEP Solar Technology (Zhenjiang) Co., Ltd.
Model Number	CEC6-72-540TDHV
Cell Technology	N-type monocrystalline bifacial
Cell Size	182 × 91 mm
Cell Count and Layout	144 half cut cells (6 × 24)
Power Output Range	540 Wp to 570 Wp
Maximum Power (Pmax) STC	540 Wp
Power Tolerance	0 to +5 W (factory rating) / 0 to +1 percent listed
Module Efficiency Range	20.9 percent to 22.1 percent
Module Efficiency (540 W)	20.9 percent
Voltage at Maximum Power (Vmpp)	41.6 V
Current at Maximum Power (Impp)	12.99 A
Open Circuit Voltage (Voc)	49.8 V
Short Circuit Current (Isc)	13.75 A
Maximum System Voltage	1500 V DC
Series Fuse Rating	25 A
Nominal Module Operating Temperature (NMOT)	42 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.30 percent per °C
Temperature Coefficient of Voc	-0.25 percent per °C
Temperature Coefficient of Isc	+0.045 percent per °C
Front Glass	3.2 mm low iron tempered solar glass with high transmittance
Junction Box Protection Class	IP68 rated, 1500 V DC
Cable Length	250 mm standard, customizable on request
Panel Dimensions (H × W × D)	2279 × 1134 × 30 mm
Weight	32.6 kg
Mechanical Load Rating	2400 Pa wind, 5400 Pa snow (as per datasheet family)
Country of Manufacture	China

Certifications & Compliance

Certifications: Independently certified to IEC 61215 and IEC 61730; CE marked for European markets.
Inverter Compatibility: Compatible with most 1500 V string and central inverters that support monocrystalline bifacial modules.
Environmental: Designed for outdoor use with IP68 junction box, high mechanical load ratings and wide operating temperature range.
Warranty: 12 year product workmanship warranty. Linear performance warranty with minimum 99 percent first year output, not less than 94.6 percent at year 12 and at least 87.4 percent at year 30, corresponding to an average annual degradation around 0.42 percent.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

CECEP Solar CEC6-72-540TDHV 540–570W N-Type Bifacial Monocrystalline Solar Panel

Model CEC6-72-540TDHV | N-Type Mono PERC | 144 Half-Cell 182×91 mm | Bifacial | 1500V System Voltage

540 W

Max Power Output

20.9%

Module Efficiency

144

N-Type TOPCon

Product Overview

Key Benefits

How It Works

Technical Specifications

Brand	CECEP Solar Technology (Zhenjiang) Co., Ltd.
Model Number	CEC6-72-540TDHV
Cell Technology	N-type monocrystalline bifacial
Cell Size	182 × 91 mm
Cell Count and Layout	144 half cut cells (6 × 24)
Power Output Range	540 Wp to 570 Wp
Maximum Power (Pmax) STC	540 Wp
Power Tolerance	0 to +5 W (factory rating) / 0 to +1 percent listed
Module Efficiency Range	20.9 percent to 22.1 percent
Module Efficiency (540 W)	20.9 percent
Voltage at Maximum Power (Vmpp)	41.6 V
Current at Maximum Power (Impp)	12.99 A
Open Circuit Voltage (Voc)	49.8 V
Short Circuit Current (Isc)	13.75 A
Maximum System Voltage	1500 V DC
Series Fuse Rating	25 A
Nominal Module Operating Temperature (NMOT)	42 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.30 percent per °C
Temperature Coefficient of Voc	-0.25 percent per °C
Temperature Coefficient of Isc	+0.045 percent per °C
Front Glass	3.2 mm low iron tempered solar glass with high transmittance
Junction Box Protection Class	IP68 rated, 1500 V DC
Cable Length	250 mm standard, customizable on request
Panel Dimensions (H × W × D)	2279 × 1134 × 30 mm
Weight	32.6 kg
Mechanical Load Rating	2400 Pa wind, 5400 Pa snow (as per datasheet family)
Country of Manufacture	China

Certifications & Compliance

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
