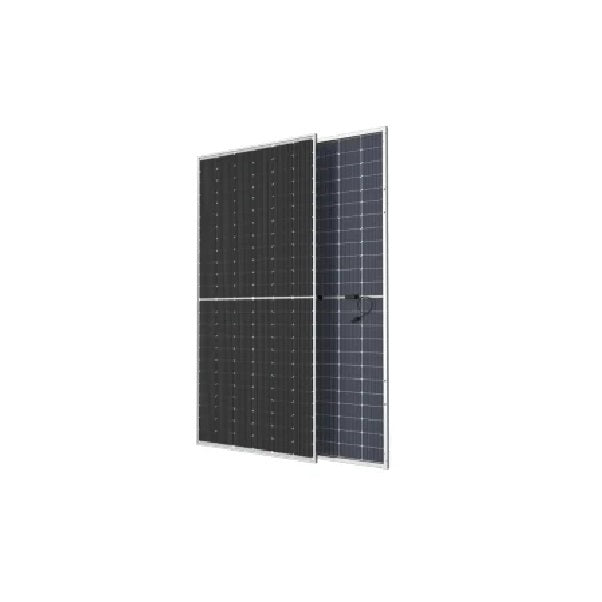

CECEP Solar CEC6-72-560TDHV

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

CECEP Solar CEC6-72-560TDHV

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-2449

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-2449

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

CECEP Solar CEC6-72-560TDHV $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

CECEP Solar CEC6-72-560TDHV 560W N-Type Bifacial Monocrystalline Solar Panel

Model CEC6-72-560TDHV | N-Type TOPCon | 144 Half-Cell Monocrystalline | Bifacial | 1500V System Voltage

560 W

Max Power Output

21.7%

Module Efficiency

144 Cells

N-Type TOPCon

Product Overview

The CECEP Solar CEC6-72-560TDHV 560W N-Type Bifacial Monocrystalline Solar Panel is engineered for large scale and demanding rooftop systems. This high power module combines advanced N-type TOPCon cells with bifacial generation, delivering strong yields even in constrained space. With module efficiency up to 21.7 percent, excellent low light behavior, and tight positive power tolerance, reliable performance can be expected over the long term. The 144 half cut cell layout reduces resistive losses and enhances shade tolerance. A low temperature coefficient of power helps maintain higher output on hot days. The robust IP68 junction box, 3.2 millimeter tempered glass, and 1500 volt system rating make this panel suitable for commercial, industrial, and utility deployments. Backed by a 12 year product warranty and 30 year linear power warranty, this module supports low LCOE designs and bankable project returns.

Key Benefits

High power density for limited roof space: The 560 watt rating and up to 21.7 percent efficiency allow more energy from fewer modules, ideal where mounting area is constrained or balance of system costs must be minimized.

Advanced N-type TOPCon reliability: N-type TOPCon cells reduce light induced degradation and offer better long term stability, so output remains closer to the nameplate rating across the lifetime of your installation.

Bifacial generation for higher yields: The bifacial design can harvest additional energy from the rear side when installed over reflective surfaces, improving annual energy production without increasing string length.

Strong performance in real world conditions: Low light response is optimized for cloudy weather, morning, and evening operation, while a low -0.3 percent per degree Celsius power coefficient limits output losses on hot roofs.

Durable construction and high system voltage: A 1500 volt maximum system rating, 3.2 millimeter tempered glass, and IP68 junction box support long strings, reduced cable runs, and reliable performance in harsh outdoor environments.

How It Works

When sunlight hits the CECEP Solar CEC6-72-560TDHV module, photons are absorbed by the N-type monocrystalline TOPCon cells on the front and rear sides. This energy frees electrons within the silicon structure, creating direct current electricity that flows through the busbars and cell interconnections. The 144 half cells are wired in an optimized configuration to balance voltage and current while limiting resistive losses. Generated DC power is routed through the IP68 junction box and factory fitted cables to the system inverter. The inverter then converts the DC power into AC power compatible with on site loads or the grid. Because rear side irradiance is also used, total energy yield can exceed that of conventional monofacial panels in suitable mounting conditions.

N-Type TOPCon cell conversion: Each 182 by 91 millimeter N-type TOPCon cell uses a high quality monocrystalline wafer and advanced passivation layers to reduce recombination losses. As a result, more of the incoming sunlight is converted into usable current, and light induced degradation is minimized over time.

Bifacial rear side gain: The transparent back structure allows reflected light from the ground or roof surface to reach the rear cell surfaces. This rear side contribution adds extra current to the string, which can increase total energy output depending on albedo and mounting height.

System integration and protection: Current from the module is combined in series and parallel strings according to the system design, staying within the 1500 volt maximum system voltage and 25 amp series fuse rating. The IP68 junction box and robust connectors provide secure electrical paths and environmental sealing, helping protect the array under rain, dust, and temperature extremes.

Technical Specifications

Manufacturer	CECEP Solar Technology (Zhenjiang) Co., Ltd.
Country of Origin	China
Module Type	Monocrystalline N-type TOPCon bifacial solar panel
Model Number	CEC6-72-560TDHV
Power Output Range	540 Wp to 570 Wp (series range)
Maximum Power (Pmax)	560 Wp
Module Efficiency	21.7% for 560 Wp module (20.9% to 22.1% series range)
Power Tolerance	0 to +5 W overall series; 0 to +1% line item tolerance
Cell Technology and Type	N-type monocrystalline TOPCon, bifacial
Cell Size	182 mm × 91 mm
Cell Count and Layout	144 half cells, 6 × 24 configuration
Front Glass	3.2 mm low iron tempered glass with high transmittance
Module Dimensions (H × W × D)	2279 × 1134 × 30 mm
Weight	32.6 kg
Nominal Module Operating Temperature (NMOT)	42 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Voltage at Maximum Power (Vmpp)	42.4 V
Current at Maximum Power (Impp)	13.21 A
Open Circuit Voltage (Voc)	50.6 V
Short Circuit Current (Isc)	13.99 A
Maximum System Voltage	1500 V DC
Series Fuse Rating	25 A
Temperature Coefficient of Pmax	-0.30 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.045 % / °C
Junction Box Protection Rating	IP68 rated junction box
Cable Cross Section and Length	4 mm² typical; 250 mm standard length, customizable
Mechanical Load Rating	Up to 2400 Pa wind and 5400 Pa snow (series rating)
Packing Information	36 pieces per package; 2 packages per pallet; 720 pieces per 40’ GP container

Certifications & Compliance

Certifications: Independently certified to IEC 61215 and IEC 61730; CE compliance for safety and performance.
Inverter Compatibility: Suitable for most modern string and central inverters rated for 1500 V DC systems; design should follow inverter datasheets and local codes.
Environmental: Designed for outdoor installation with IP68 junction box, UV resistant materials, and resistance to standard wind and snow loads.
Warranty: 12 year product materials and workmanship warranty; linear power warranty with at least 99% output in year one, not less than 94.6% by year twelve, and not less than 87.4% by year thirty, reflecting an average annual degradation rate of approximately 0.42%.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
