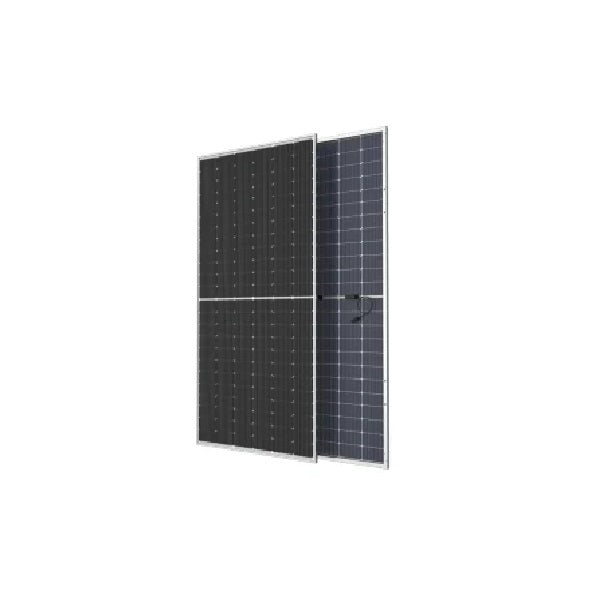

CECEP Solar CEC6-72-565TDHV 565W N-Type Bifacial Monocrystalline Solar Panel

Model CEC6-72-565TDHV | N-Type TOPCon Mono PERC | 144 Half-Cell 182×91 mm | Bifacial | 1500V System Voltage

565 W

Max Power Output

21.9%

Module Efficiency

144 Cells

N-Type TOPCon

Product Overview

The CECEP Solar CEC6-72-565TDHV 565W N-Type Bifacial Monocrystalline Solar Panel delivers high output and long term reliability for utility, commercial, and large residential arrays. This advanced N-type TOPCon bifacial module offers a power range from 540W to 570W with module efficiencies between 20.9 percent and 22.1 percent. At the 565W rating, it achieves an impressive 21.9 percent efficiency in a slim 2279 by 1134 millimeter frame that suits space constrained rooftops and ground mounts. Bifacial generation lets the rear side harvest additional light, which can significantly increase total energy yield on reflective surfaces. A low temperature coefficient and an NMOT around 42 degrees Celsius help maintain strong performance in hot climates and on high irradiance sites. The robust 1500 volt system rating, IP68 junction box, and 3.2 millimeter tempered glass enable reliable operation in demanding environments. With a linear power warranty that guarantees 94.6 percent output at year twelve and 87.4 percent at year thirty, this CECEP Solar panel is engineered for long term energy production and bankable project returns. It is an excellent fit for investors and installers seeking low levelized cost of energy with proven N-type technology.

Key Benefits

High power density for limited space: The module delivers up to 565 watts in a standard utility scale footprint, which maximizes output on rooftops and trackers with restricted area. This higher power class lets fewer modules be installed for the same system size, reducing balance of system costs and installation time.

Advanced N-type TOPCon cell technology: N-type mono cells reduce light induced degradation and maintain stronger performance over time. TOPCon architecture supports higher conversion efficiency and better performance in low light conditions such as mornings, cloudy days, and evenings.

Bifacial energy gain: The bifacial design captures light from both the front and rear sides, which increases yield on reflective ground or roof surfaces. This additional rear side production can boost total energy output and drive down the levelized cost of energy for ground mount and tracker projects.

Proven durability and weather resistance: The panel uses 3.2 millimeter low iron tempered glass and a rugged frame tested for high wind and snow loads. The IP68 junction box and high quality encapsulation protect cells from moisture and dust, ensuring reliable operation across harsh climates.

Long term linear power warranty: CECEP Solar backs the module with a 12 year product warranty on materials and workmanship. A linear power warranty guarantees at least 99 percent power in year one, 94.6 percent by year twelve, and 87.4 percent by year thirty.

Optimized for modern 1500V systems: A maximum system voltage of 1500 volts supports long strings and reduces electrical losses in large installations. This rating aligns well with contemporary inverters and trackers, simplifying system design and improving overall efficiency.

How It Works

This CECEP Solar CEC6-72-565TDHV N-type bifacial panel converts sunlight into usable DC electricity using high efficiency mono crystalline cells. Each module contains 144 half cut N-type TOPCon cells wired in an optimized configuration to reach 565 watts under standard test conditions. Front side glass with high light transmittance lets more irradiance reach the cells, which improves conversion efficiency and power density. The bifacial construction also exposes the rear side to reflected and diffused light from the ground, roof, or surrounding surfaces. This rear side contribution increases the effective energy yield beyond the nameplate rating when installed over bright surfaces such as white membrane roofs, concrete, or gravel. Generated DC power flows through integrated junction boxes and factory fitted cables to string inverters or central inverters for conversion to AC power. A low temperature coefficient helps the module maintain output during hot days, supporting reliable performance in most climates and seasons.

Front side power generation: Sunlight hits the 3.2 millimeter low iron tempered glass and passes through with minimal losses. The N-type TOPCon mono cells convert this light into DC electricity with a high efficiency of up to 21.9 percent for the 565 watt class. The optimized cell string layout and half cut design reduce resistive losses and improve performance under partial shading.

Rear side bifacial gain: The module back sheet and cell layout allow light striking the rear surface to be converted into additional power. Reflected irradiance from bright ground, mounting structures, or nearby surfaces is captured by the rear side cells. This additional generation raises total energy yield and can significantly improve system economics on well designed bifacial sites.

System integration and power delivery: Electrical output flows through an IP68 rated junction box, which protects bypass diodes and connections from moisture and dust. Factory installed 250 millimeter cables simplify string wiring and reduce on site labor. When connected into 1500 volt strings, the modules feed DC power to compatible inverters that convert it into AC electricity for on site use or grid export.

Technical Specifications

Brand	CECEP Solar Technology (Zhenjiang) Co., Ltd.
Country of Origin	China
Model Number	CEC6-72-565TDHV
Cell Technology	N-type TOPCon monocrystalline
Module Type	Bifacial, mono-crystalline solar module
Power Range	540 W to 570 W
Rated Maximum Power (Pmax)	565 Wp
Power Tolerance	0 to +5 W (datasheet), 0 to +1 % typical tolerance
Module Efficiency (565 W)	21.9 %
Module Efficiency Range	20.9 % to 22.1 % across series
Voltage at Maximum Power (Vmpp)	42.6 V
Current at Maximum Power (Impp)	13.27 A
Open Circuit Voltage (Voc)	50.8 V
Short Circuit Current (Isc)	14.05 A
Nominal Module Operating Temperature (NMOT)	42 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.30 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.045 % / °C
Maximum System Voltage (DC)	1500 V
Maximum Series Fuse Rating	25 A
Module Dimensions (H × W × D)	2279 × 1134 × 30 mm
Module Weight	32.6 kg
Cell Size	182 × 91 mm mono crystalline cells
Cell Count and Layout	144 half cells (6 × 24 configuration)
Glass Type and Thickness	3.2 mm low iron tempered glass with high transmittance
Junction Box Protection Class	IP68 rated junction box
Cable Length	250 mm (customizable on request)
Packaging Configuration	36 modules per package, 2 packages per pallet, 720 modules per 40’ GP container
Total Degradation Rate	Approximate annual degradation leading to 87.4 % output at 30 years

Certifications & Compliance

Certifications: Independently certified to IEC 61215 and IEC 61730 safety and performance standards, with CE conformity for European markets. Modules are tested to withstand high wind loads around 2400 Pascal and snow loads around 5400 Pascal as referenced in the series datasheet.
Inverter Compatibility: Suitable for use with most modern string and central inverters that support 1500 volt DC systems. Systems can be designed with long strings to optimize inverter loading, provided manufacturer design limits are followed.
Environmental: Designed for outdoor use in diverse climates, with an operating temperature range from -40 °C to +85 °C. The IP68 junction box and tempered glass protect internal components from dust, moisture, and extreme weather events.
Warranty: 12 year product warranty covering materials and manufacturing workmanship. Linear power warranty with output not less than 99 % in the first year, not less than 94.6 % by year 12, and not less than 87.4 % by year 30, ensuring long term performance and energy yield.
