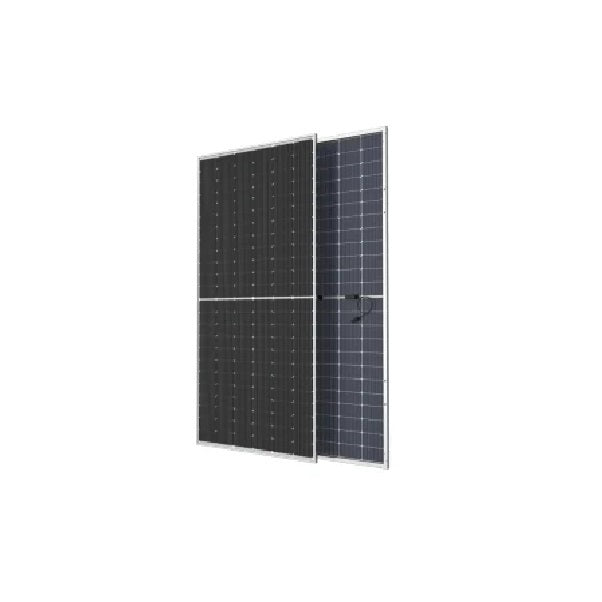

CECEP Solar CEC6-72-570TDHV 570W N-Type Bifacial Monocrystalline Solar Panel

Model CEC6-72-570TDHV | N-Type Monocrystalline | 144 Half-Cell 182×91 mm | Bifacial | 1500V System Voltage

570 W

Max Power Output

22.1%

Module Efficiency

144

N-Type TOPCon

Product Overview

The CECEP Solar CEC6-72-570TDHV N-type bifacial monocrystalline solar panel is engineered for high yield, durability, and long service life. This 570W module uses advanced N-type TOPCon cell technology to deliver excellent efficiency even in limited roof space. Its bifacial design allows power generation from both the front and rear sides, improving energy harvest on rooftops, carports, ground mounts, and utility projects. A robust 3.2 mm tempered glass, high load ratings, and IP68 junction box help ensure reliable operation in harsh weather. With a 12-year product warranty and up to 30-year power warranty, this panel supports low levelized cost of energy for residential, commercial, and utility scale systems. Installers and project owners gain a bankable module that balances performance, weight, and long-term reliability.

Key Benefits

High power density for limited space: The 570 Wp output and up to 22.1 percent efficiency deliver more energy from each square meter. This helps sites with restricted area reach higher system capacities without expanding the footprint.

Bifacial generation boosts yield: Bifacial N-type cells capture light from the front and rear of the module. This can raise total energy production when panels are installed over reflective surfaces or bright ground conditions.

Reliable performance in real conditions: Excellent behavior in weak light helps sustain output during cloudy weather, mornings, and evenings. Optimized temperature coefficients support stable performance on hot roofs and utility sites.

Long-term power assurance: A 12 year product warranty is combined with a linear power guarantee. Power is warranted at 94.6 percent in year twelve and 87.4 percent by year thirty, limiting degradation risk.

Certified durability and safety: The module is independently certified to IEC 61215, IEC 61730, and CE standards. High wind and snow load ratings, plus IP68 junction boxes, support use in demanding climates.

How It Works

This CECEP Solar CEC6-72-570TDHV module converts sunlight into usable DC electricity through advanced N-type bifacial monocrystalline cells. Each of the 144 half cells is designed to minimize resistive losses and improve shade tolerance across the module. When sunlight hits the front glass, photons excite electrons inside the silicon cells, generating an electrical current. Additional energy is captured when reflected light reaches the rear cell surface, increasing total daily production. The power flows through the internal busbars to the IP68 junction box, then out through the factory fitted cables to your inverter or optimizer. Once connected to a suitable inverter, the system converts DC power into AC electricity that can be used on site or exported to the grid.

N-Type bifacial cell operation: N-type TOPCon cells resist light induced degradation better than many conventional P-type cells. They maintain higher efficiency over time and offer lower degradation rates across the thirty year warranty period.

Half-cell and high voltage design: The 144 half cell layout reduces current in each cell string, cutting resistive heating and losses. A 1500 V system rating allows longer strings, which can reduce balance of system costs in large arrays.

Thermal and low light performance: A Pmax temperature coefficient of minus 0.3 percent per degree Celsius helps limit output loss on hot days. Good low irradiance behavior maintains productive output during overcast conditions, mornings, and late afternoons.

Technical Specifications

Brand	CECEP Solar Technology (Zhenjiang) Co., Ltd.
Model Number	CEC6-72-570TDHV
Cell Technology	N-type monocrystalline, TOPCon
Module Type	Bifacial mono-crystalline solar module
Rated Power Range	540 Wp to 570 Wp series, this model 570 Wp
Maximum Power (Pmax)	570 Wp at STC
Power Tolerance	0 to +5 W from factory, typical data 0 to +1 percent
Module Efficiency	20.9 percent to 22.1 percent, this model 22.1 percent
Voltage at Maximum Power (Vmpp)	42.8 V
Current at Maximum Power (Impp)	13.32 A
Open Circuit Voltage (Voc)	51.0 V
Short Circuit Current (Isc)	14.11 A
Nominal Module Operating Temperature (NMOT)	42 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.30 percent per °C
Temperature Coefficient of Voc	-0.25 percent per °C
Temperature Coefficient of Isc	+0.045 percent per °C
Maximum System Voltage (DC)	1500 V DC
Maximum Series Fuse Rating	25 A
Cell Size and Layout	182 × 91 mm cells, 144 half cells in 6 × 24 layout
Module Dimensions (H × W × D)	2279 × 1134 × 30 mm
Front Glass	3.2 mm low iron high transmittance tempered glass
Junction Box Protection Rating	IP68 rated junction box
Cable Length	250 mm standard, customizable by request
Module Weight	32.6 kg
Mechanical Load Ratings	Front wind load up to 2400 Pa, snow load up to 5400 Pa
Packaging Information	36 pieces per package, 2 packages per pallet, 720 pieces per 40’ GP container

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, CE, independently tested and certified for safety and performance.
Inverter Compatibility: Compatible with most modern grid tie and hybrid inverters rated for 1500 V DC strings. Always verify input voltage and current limits against string design.
Environmental: Designed for outdoor use with IP68 junction box and robust frame. Suitable for high wind, heavy snow, and wide temperature ranges when installed to manufacturer guidelines.
Warranty: 12 year limited product warranty on materials and workmanship. Linear power warranty with power not less than 94.6 percent at year twelve and not less than 87.4 percent at year thirty, based on a total annual degradation rate of about 0.42 percent.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and project specific pricing
