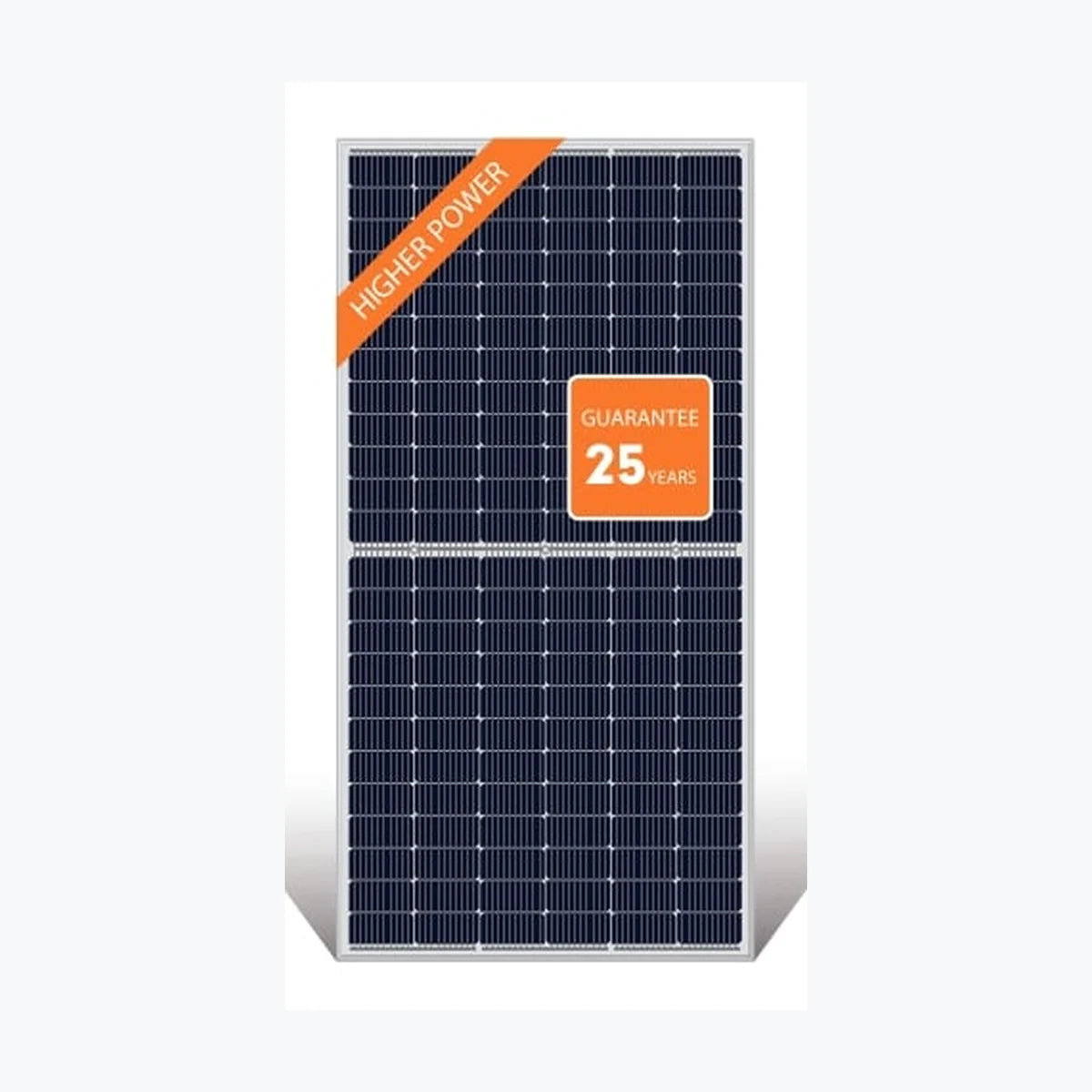

    Centro Energy CE-530HM

    Centro Energy CE-530HM

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-2971
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. CE-530HM Product Warranty 12 Years Power Warranty 12 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 530 Wp Voltage at Maximum Power (Vmpp) 40.74 V Current at Maximum Power (Impp) 13.01 A Open Circuit Voltage (Voc) 49.26 V Short Circuit Current (Isc) 13.69 A Panel Efficiency 20.5 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 27.2 kg Cell Size 182×91 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet

      Power Range: 530 ~ 550 Wp
      Panel Efficiency: 20.5 ~ 21.3 %
      Weight: 27.2 kg
      Seller Name: Centro Energy Co., Ltd.
      Country: China
