CW Energy 410W Solar Panel 108 Cells Bifacial CWT410-108PMB10 Assembled in the USA Wholesale 35 panels per pallet
CW Energy 410W Solar Panel 108 Cells Bifacial CWT410-108PMB10 Assembled in the USA Wholesale 35 panels per pallet
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0184
- Documents:
- Height: 1.18
- Length: 67.8
- Width: 44.65
Product Description
-

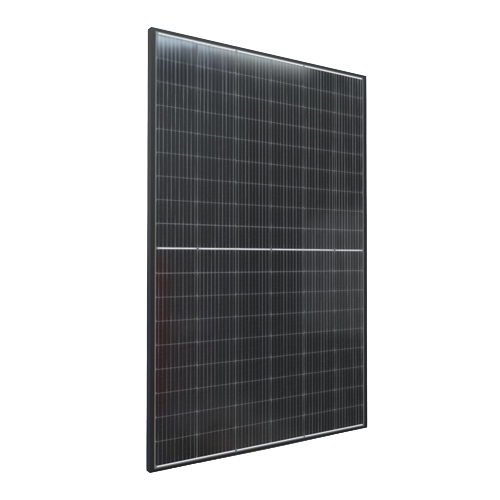

The CW Energy CWT410‑108PMB10 is a high-efficiency bifacial monocrystalline solar panel featuring 108 PERC half-cut cells and a transparent backsheet.
Rated Power: 410 W front-side; with bifacial gain up to ~30%, total up to ~533 W.
Module Efficiency: 21 %
Electrical Specs: Voc 37.09 V • Vmp 31.39 V • Isc 14.07 A • Imp 13.07 A • 0/+5 W power tolerance.
Max System Voltage: 1500 V DC • Max Fuse: 25 A • Connectors: IP68 junction box, MC4‑compatible.
Mechanical Load Rating: 5400 Pa snow / 2400 Pa wind; operating range −40 °C to +85 °C.
Durability: Self-cleaning, anti-reflective dual glass.
Warranty: 12‑year product; 30‑year performance warranty (≤2 % 1st‑year drop; ≤0.5 %/yr; ≥80.1–87.4 % output at 30 years).
Packaging: 35 panels per pallet.
-
