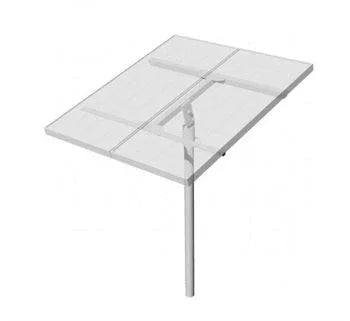

DPW Solar Top-of-Pole Mounting System for Type-H PV Modules

The DPW Solar TPM2-H is expertly crafted to streamline the installation process, ensuring a robust and dependable mounting structure for PV modules on a single pole. Highlighting features such as exceptional strength and ease of assembly, the TPM2-H stands out as a practical choice for solar energy applications, allowing users to maximize energy production with minimal effort.

Product Features

Unmatched Durability

The DPW Solar TPM2-H boasts a design that includes MIG-welded steel strong backs and mounting sleeves, ensuring maximum strength and resilience. This sturdy construction is optimized to withstand wind speeds of up to 90 MPH, making it a dependable choice for various weather conditions.

Module Specific Design

This top-of-pole mounting system features a specialized design that reduces the number of components required for assembly, significantly optimizing installation time and minimizing labor costs. This feature allows the user to install the system over standard Schedule 40 or 80 rigid steel pipes.

Seasonal Elevation Adjustment

With six different tilt-angle settings ranging from 15 to 65 in 10 increments, the TPM2-H allows for optimal seasonal adjustments. This seasonal elevation adjustment enhances energy capture while ensuring a single person can efficiently modify the angle.

Efficient Assembly Process

The TPM2-H is designed for simplicity, with factory-set module hole placements that create uniform spacing, eliminating the need for complicated measurements during installation. Additionally, it features easy access to bottom flange bolting and convenient tamper-resistant mounting hardware.

Versatile Installation Options

This mount can accommodate up to 4.1 kW on a single pole, allowing for an extraordinary range of applications. Its flexible design suits various module sizes, making it an adaptable solution for both residential and commercial PV installations.

How It Works

The DPW Solar TPM2-H operates by securely attaching PV modules to a single pole using high-strength welded steel components. The straightforward assembly process, combined with its customizable tilt settings, ensures that solar installations can be completed quickly and efficiently, even by a single operator.

Structural Components

The robust structural components, including stainless steel mounting hardware and zinc-plated rack assembly, work in tandem to provide a stable foundation for the mounted PV modules, enabling long-term reliability.

Adjustability Mechanism

The integrated adjustability mechanism allows users to change the angle of PV modules based on seasonal variations, enhancing energy production throughout the year. This feature ensures that users can optimize performance with minimal effort.

Assembly Mechanism

With its user-friendly assembly design, the TPM2-H simplifies the overall installation workflow, allowing installers to focus on efficiency rather than intricate setups, thereby saving time and reducing labor costs.

Specifications
