EcoFasten ROCK-IT V3 Mount Installation Guide

The EcoFasten ROCK-IT V3 Mount, model number 2011020, is designed for efficient and reliable installation of photovoltaic (PV) modules. This innovative system combines ease of installation with advanced features, ensuring that both residential and commercial projects benefit from its robust design. With a focus on user-friendly interfaces, the ROCK-IT V3 Mount streamlines the installation process while maintaining high performance and durability.

Product Features

Patented Watertight Technology

Utilizing advanced engineering, the EcoFasten ROCK-IT V3 Mount incorporates a patented watertight technology that protects connections from moisture and environmental damage. This feature is crucial for maintaining the longevity and reliability of your solar installations, ensuring effective performance in various weather conditions.

Top-Down Leveling System

The ROCK-IT V3 Mount features a top-down leveling system that allows for quick adjustments during installation. This benefit significantly enhances usability by simplifying the alignment process, ensuring that PV panels are installed correctly and securely on any rooftop.

Fully Integrated Bonding

This system comes with fully integrated bonding capabilities, streamlining grounding processes. By providing built-in bonding solutions, the EcoFasten ROCK-IT V3 minimizes installation time and complexity, providing peace of mind for users regarding safety and compliance with industry standards.

Single Tool Installation

The EcoFasten ROCK-IT V3 is designed for single-tool installation, allowing installers to efficiently assemble the system using minimal equipment. This feature not only reduces the weight of the installation kit but also expedites the setup process, making it ideal for quick deployment.

North-South Adjustability

With the ability to adjust components in the north-south direction, this mount allows for optimal positioning of solar panels throughout the day. By accommodating angle alterations, users can maximize energy capture while ensuring ease of use during the initial setup.

How It Works

The EcoFasten ROCK-IT V3 Mount operates by providing a stable, secure structure for PV modules. Designed with both functionality and simplicity in mind, each component of the system works in harmony to create efficient, quick installations while maintaining compliance with industry standards.

Component Overview

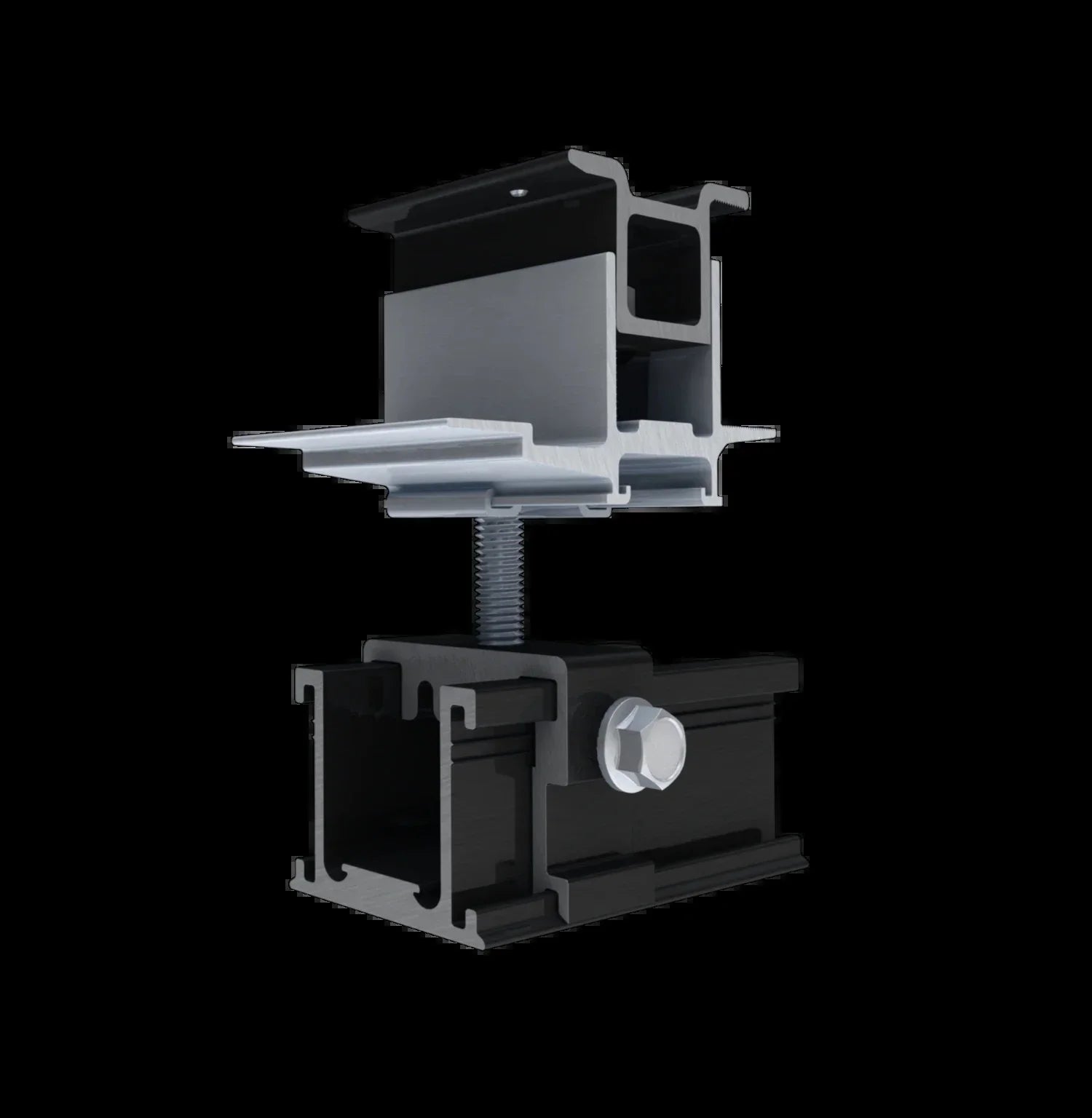

This installation system consists of several key components including the V3 Mount and V3 Couplings, which provide support and flexibility during installation. The combination of these parts ensures a reliable mounting experience suitable for diverse rooftop types.

Assembly Mechanics

The assembly mechanics of the ROCK-IT V3 are straightforward, allowing installers to navigate the setup process easily. Visual indicators help ensure that all components are properly installed and secured, promoting a safe and compliant installation.

Usability Enhancements

The thoughtful design of ROCK-IT V3 components enhances usability, ensuring that even those new to solar installations can achieve a professional quality setup. This system reduces the learning curve associated with mounting installations.

Specifications

Manufacturer	EcoFasten
MPN (Manufacturer Part Number)	2011020
Max System Voltage	1500V
Max Fuse Rating	20A
Roof Pitch	2:12 - 12:12
UL 2703 Allowable Design Load Rating	30 psf downward, 30 psf upward, 20 psf lateral
Maximum Module Size	22 sq. ft.
Maximum Span	6 ft Landscape, 4 ft Portrait
Fire Rating	Class A System Fire Rating
Certification	Conforms to UL STD 2703
