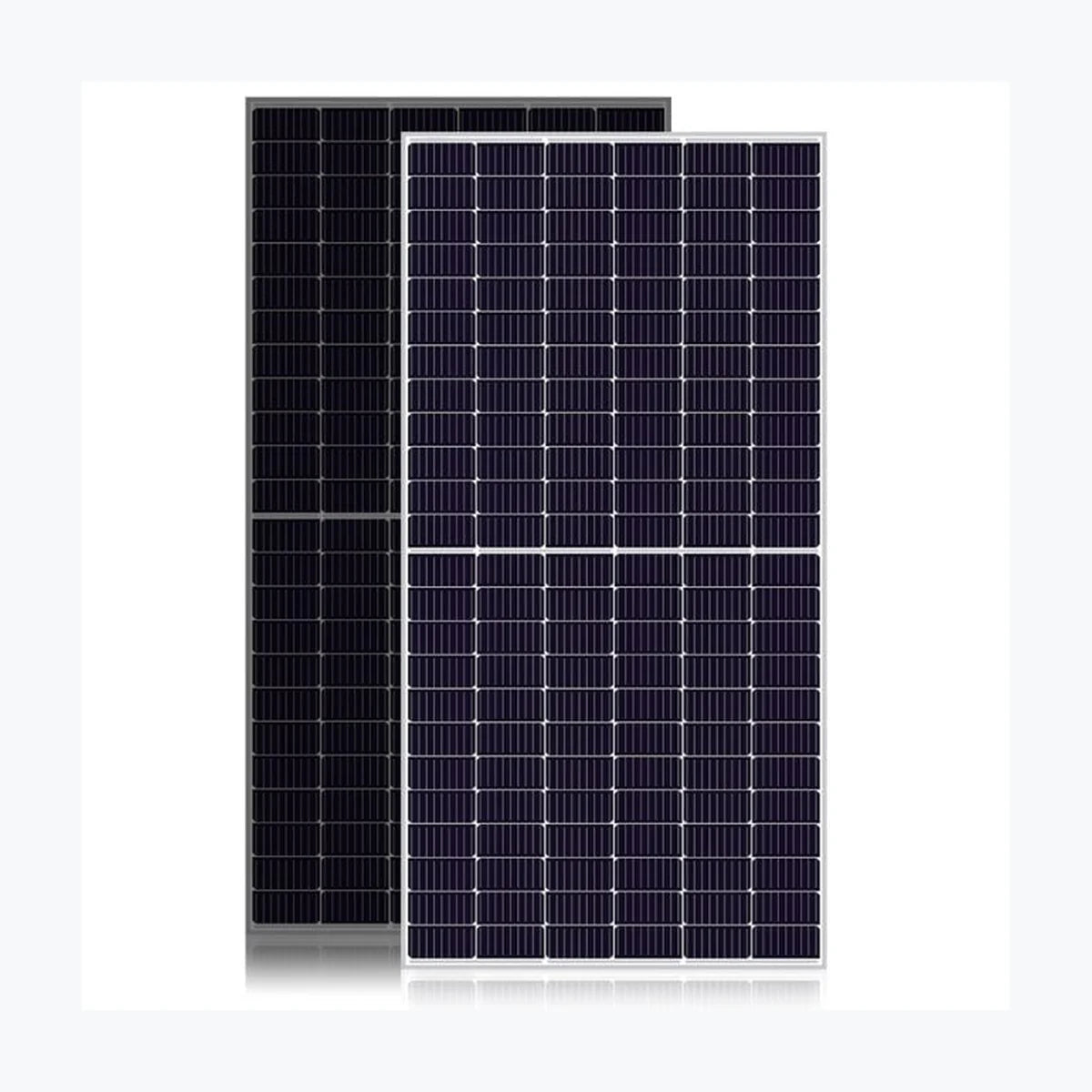

Exiom Solution EX530MB (144) 530W Mono Half-Cell Solar Panel
EX530MB(144)182 | Mono Half-Cell | 144 Half-Cells | Mono | 1500V System Voltage
Product Overview
The Exiom Solution EX530MB (144) 530W Mono Half-Cell Solar Panel delivers exceptional performance for modern energy needs. This high-efficiency panel features 144 half-cells designed to maximize power output in limited spaces. Exiom Solution designs and manufactures this unit with a focus on superior quality and global reliability. The 530-watt output ensures robust energy generation for residential and commercial installations. Its advanced Mono Half-Cell technology reduces internal resistance and improves overall efficiency. This panel operates effectively across a wide temperature range from -40°C to +85°C. The robust construction includes an IP68 junction box for weather protection. Users benefit from high efficiency that minimizes energy loss during operation. The design supports a maximum system voltage of 1500V for versatile grid integration. This product represents a top choice for those seeking reliable solar power solutions today.
Key Benefits
High Power Output: Generates 530 watts of power to meet demanding energy requirements efficiently.
Superior Efficiency: Achieves 20.5% module efficiency to maximize energy conversion from sunlight.
Half-Cell Technology: Uses 144 half-cells to reduce resistance and improve performance in low light.
Weather Resilience: Operates reliably in extreme temperatures ranging from -40°C to +85°C.
Robust Protection: Features an IP68 junction box and high static load ratings for durability.
How It Works
This solar panel converts sunlight into usable electricity through advanced photovoltaic technology. The 144 half-cells capture solar energy and generate direct current efficiently. Internal resistance is minimized by the half-cell design to boost overall power output. The panel operates within a broad temperature range to ensure consistent performance. High-efficiency cells allow for maximum energy generation even in challenging conditions. The IP68 junction box protects internal connections from moisture and dust. This system supports a high voltage of 1500V for flexible grid connections. The design ensures minimal degradation over time for long-term reliability.
Photovoltaic Conversion: Sunlight hits the 144 half-cells to generate direct current electricity instantly. This process converts solar energy into power for your home or business efficiently.
Resistance Reduction: Half-cell technology splits cells to lower internal resistance and reduce heat loss. This design improves efficiency and ensures more power reaches your electrical system.
Environmental Protection: The IP68 junction box seals connections against water and dust intrusion completely. This feature preserves functionality during harsh weather conditions for years of use.
Technical Specifications
| Max Power Output | 530 Watts |
| Module Efficiency | 20.5% |
| Cell Technology | Mono Half-Cell |
| Cell Count | 144 Half-Cells (6x24) |
| Dimensions | 2279 x 1134 x 30mm |
| Weight | 27.4 kg |
| Max System Voltage | 1000/1500 V |
| Max Voltage (VMP) | 41.03 V |
| Current (IMP) | 12.92 A |
| Open Circuit Voltage (VOC) | 48.83 V |
| Short Circuit Current (ISC) | 13.74 A |
| Power Tolerance | (0, +5)% |
| Operating Temperature | -40°C to +85°C |
| Junction Box | IP68 |
| Number of Diodes | 3 |
| Front Load Rating | 5400 Pa |
| Back Load Rating | 2400 Pa |
| Cable Size | 4 mm² |
| Temp Coefficient (PMAX) | -0.35%/°C |
| Packaging | 36 pcs/Pallet |
Certifications & Compliance
Certifications: IEC/UL Standards for Solar Modules
Inverter Compatibility: Compatible with standard PV inverters (1000/1500V)
Environmental: Operating Temp: -40°C to +85°C; Hot Spot Free
Warranty: Linear Performance Warranty (Standard available); Exiom Solution reserves final interpretation rights
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
