Flagsun Green Power FSM636-180W

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Flagsun Green Power FSM636-180W

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-5641

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-5641
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Flagsun Green Power FSM636-180W $180.00

Specifications

Power Rating 180W

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

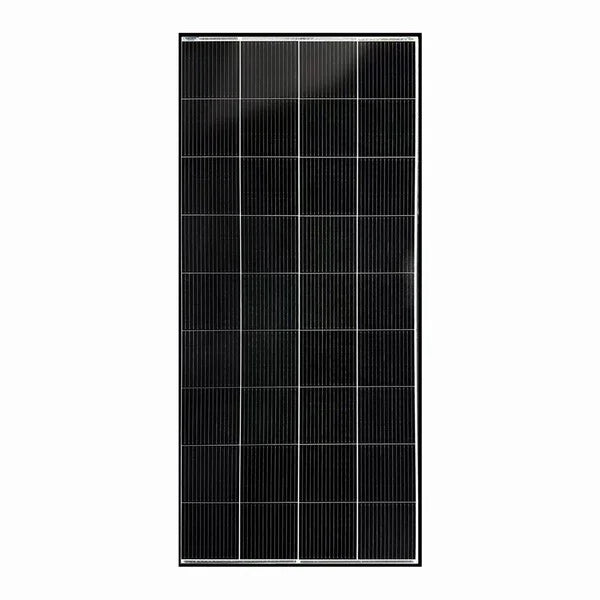

Flagsun FSM636-180W 180W Monocrystalline Standard Solar Panel

Model FSM636-180W | Monocrystalline | 36 Full-Cell Silicon | Monofacial | 1000V System Voltage

180 Wp

Max Power Output

17.9%

Module Efficiency

Monocrystalline Cells

Product Overview

The Flagsun Green Power FSM636-180W monocrystalline solar panel delivers reliable 180 Wp output in a compact format, ideal for off grid and small rooftop systems. As a high efficiency 12 V class module, it converts sunlight into clean power with up to 17.9% panel efficiency under standard conditions. This Flagsun FSM636-180W solar panel is designed for users who need dependable performance, simple integration, and long term durability. The module operates safely in challenging environments, with an operating temperature range from -40°C to 85°C. Tempered glass and an anodized aluminium frame protect the monocrystalline cells from impact, moisture, and temperature cycles. The panel supports precise power planning thanks to its 0 to +3% positive power tolerance. Voltage at maximum power is 18.1 V, paired with a strong current of 9.95 A at peak output. Short circuit current reaches 10.53 A, with an open circuit voltage of 22.8 V, making this model suitable for battery charging, PWM and MPPT regulators, and many low voltage applications. With a power range extension from 180 Wp up to 200 Wp within the same series, system designers can scale capacity easily while maintaining a consistent mechanical footprint and look.

Key Benefits

High conversion efficiency: The panel offers up to 17.9% efficiency, allowing more power from limited roof or ground space. This improves overall system yield for residential cabins, mobile setups, and small commercial loads.

Reliable 180 Wp power output: With 180 Wp rated power and a 0 to +3% tolerance, the module consistently delivers or exceeds its nameplate output. This helps installers design arrays with confidence and predictable performance.

Robust thermal performance: The operating temperature range of -40°C to 85°C supports use in hot summers and cold winters. Optimised temperature coefficients limit output losses as cell temperature rises in strong sunshine.

Durable construction materials: A 3.2 mm tempered glass front protects against hail, debris, and handling damage during installation. The anodized aluminium frame adds rigidity and corrosion resistance for long outdoor lifetimes.

Flexible system integration: Electrical parameters suit many 12 V battery banks, charge controllers, and inverters common in off grid systems. The power range from 180 to 200 Wp gives planners options for tailoring system size and cost.

How It Works

The Flagsun Green Power FSM636-180W solar panel converts sunlight into direct current electricity through high grade monocrystalline cells. When light hits the silicon cells, electrons are released and driven by the internal electric field, creating current flow. The module delivers its maximum power at 18.1 V and 9.95 A, where voltage and current are balanced for optimal energy output. At open circuit, the panel reaches 22.8 V with no load connected. Under short circuit conditions, current rises to 10.53 A while voltage drops to near zero. In real applications, a charge controller or inverter keeps operation close to the maximum power point. Temperature affects cell behaviour, so advanced temperature coefficients help forecast performance in hot or cold conditions. Protective tempered glass and the aluminium frame shield the cells while still allowing high light transmission. The result is a compact module that quietly produces clean power wherever it is mounted, whether on rooftops, boats, caravans, or remote sites without grid access.

Monocrystalline energy conversion: Each monocrystalline cell is cut from a single silicon ingot, providing a uniform structure that supports higher efficiencies. Photons from sunlight strike the cell and dislodge electrons, which then flow through the external circuit as usable electrical energy.

Maximum power point operation: The panel performs best near its rated 18.1 V and 9.95 A operating point, where power output peaks at 180 Wp. Charge controllers or inverters with MPPT algorithms track this point during the day, optimising energy harvest despite changing sunlight and temperature levels.

Thermal and environmental management: Cell temperature rises above ambient during strong irradiation, which can reduce power output if unmanaged. The panel’s temperature coefficients for Pmax, Voc, and Isc quantify these changes, enabling accurate system sizing and performance modelling over seasonal conditions.

Technical Specifications

Brand	Flagsun Green Power Co., Ltd.
Country of Origin	China
Model Number	FSM636-180W
Technology Type	Monocrystalline silicon, standard monofacial design
Nominal Power Range	180 Wp to 200 Wp series range
Maximum Power (Pmax)	180 Wp
Power Tolerance	0 to +3%
Panel Efficiency	17.9% typical, up to 19.9% in series range
Voltage at Maximum Power (Vmpp)	18.1 V
Current at Maximum Power (Impp)	9.95 A
Open Circuit Voltage (Voc)	22.8 V
Short Circuit Current (Isc)	10.53 A
Nominal Operating Temperature	45 ± 2°C
Operating Temperature Range	-40°C to 85°C
Temperature Coefficient of Pmax	-0.43% / °C
Temperature Coefficient of Voc	-0.34% / °C
Temperature Coefficient of Isc	+0.049% / °C
Glass Type	High transparency tempered glass
Glass Thickness	3.2 mm
Frame Type	Anodized aluminium frame

Certifications & Compliance

Certifications: Standard industry safety and performance certifications typically applied to monocrystalline modules from established Chinese manufacturers. Please confirm exact certificates with Flagsun Green Power before procurement.
Inverter Compatibility: Compatible with most 12 V and 24 V off grid or hybrid inverters and regulators when configured correctly in series or parallel strings.
Environmental: Designed for outdoor installation with resistance to UV exposure, humidity, and broad ambient temperatures from -40°C to 85°C.
Warranty: Standard manufacturer structural and performance warranty is generally provided. Exact terms, including duration and guaranteed output levels, should be obtained from the current Flagsun Green Power warranty documentation.
