In Stock

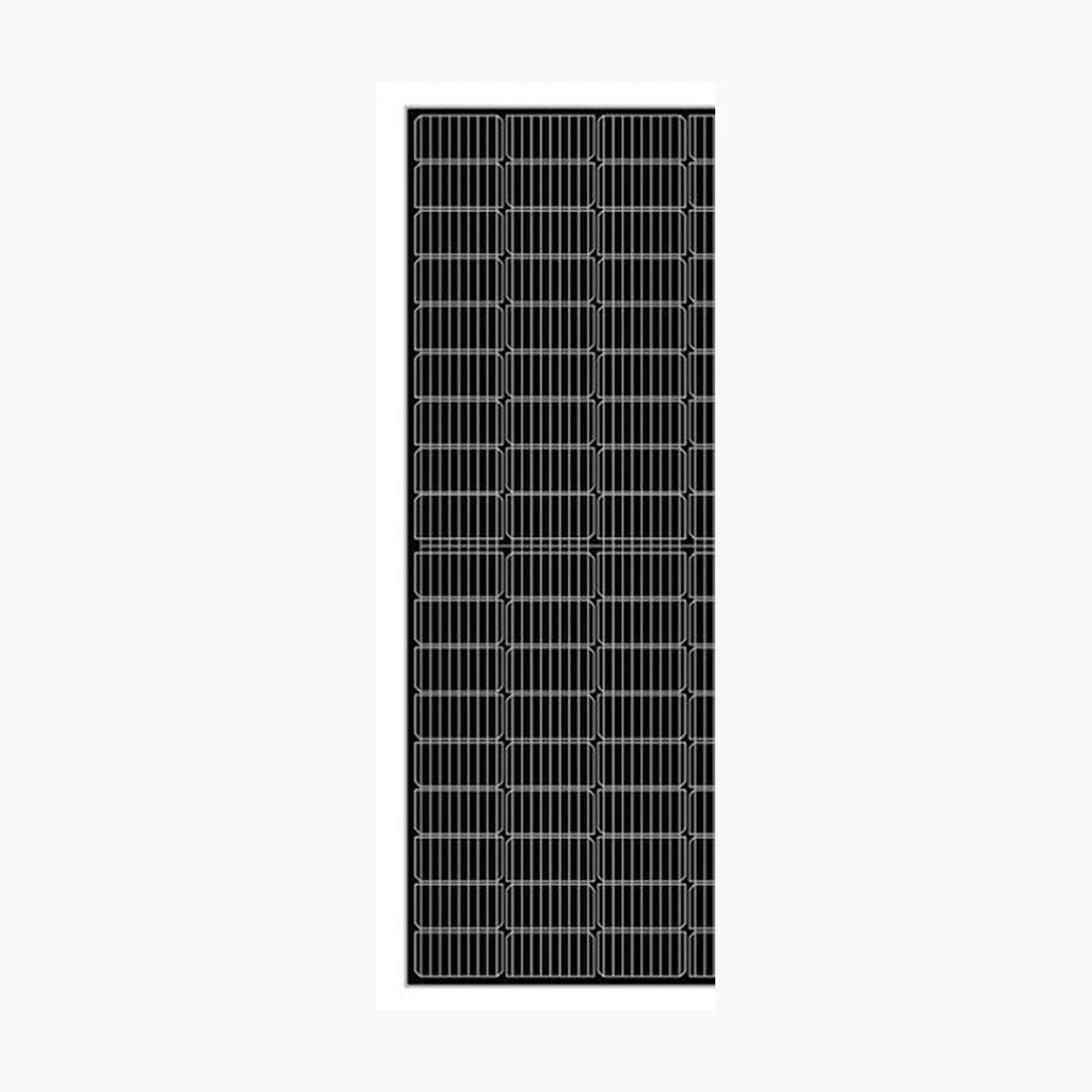

Gamko New Energy 435
Gamko New Energy 435
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-6451
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 435 Product Warranty 12 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 32.85 V Current at Maximum Power (Impp) 13.24 A Open Circuit Voltage (Voc) 39.27 V Short Circuit Current (Isc) 14.17 A Panel Efficiency 22.28 % Maximum Power (Pmax) 327 Wp Voltage at Maximum Power (Vmpp) 30.28 V Current at Maximum Power (Impp) 10.8 A Open Circuit Voltage (Voc) 37.35 V Short Circuit Current (Isc) 11.42 A Temperature 45±2 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Panel Dimension (H/W/D) 1722x1134x30 mm Weight 19 kg Cell Size 182×91 mm Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manu
Technology: TOPCon, N-type
Power Range: 430 ~ 450 Wp
Panel Efficiency: 22.02 ~ 23.04 %
Weight: 19 kg
Seller Name: Nantong Gamko New Energy Co., Ltd.
Country: China -
