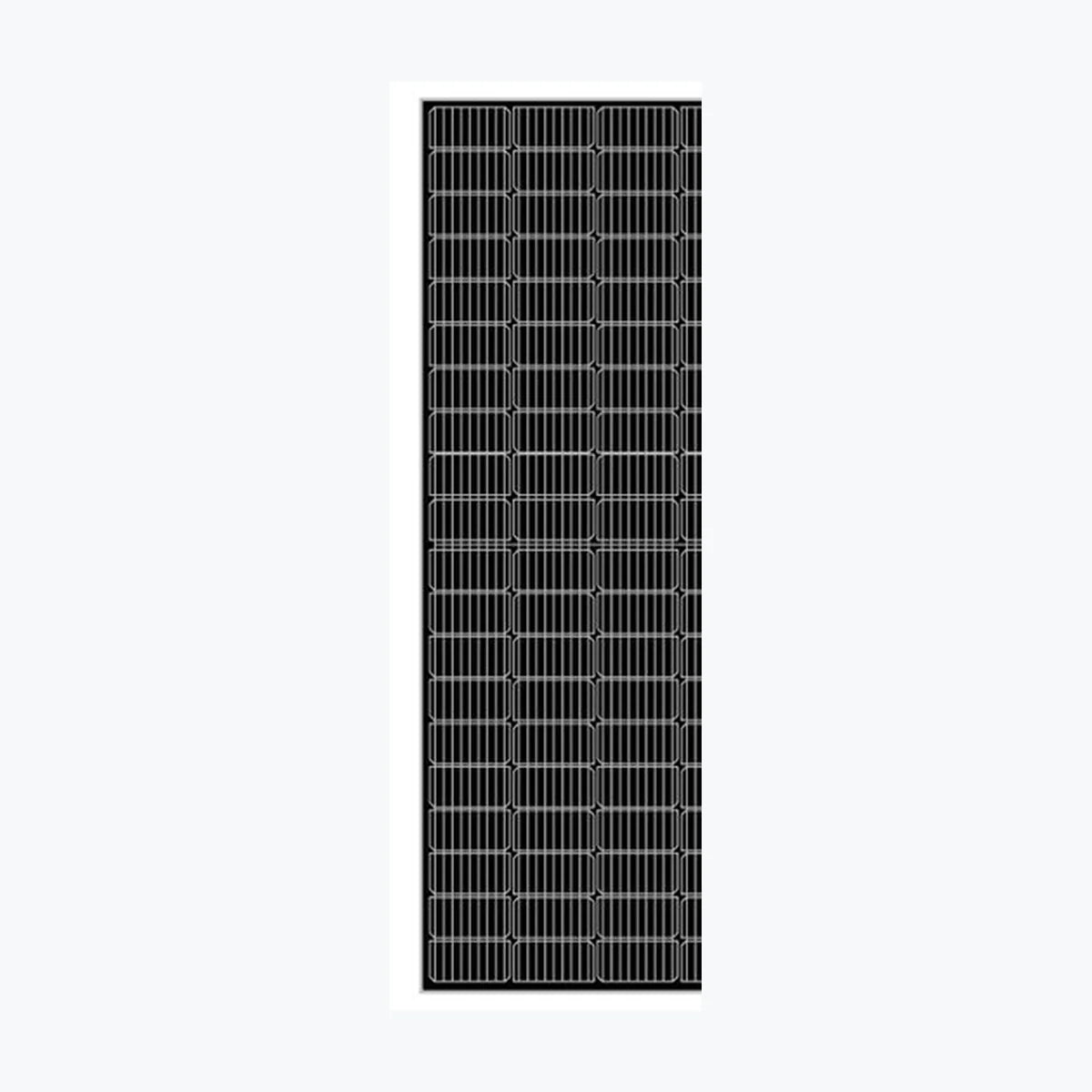

Gamko New Energy 500
Gamko New Energy 500
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-6461
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 500 Product Warranty 12 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 36.93 V Current at Maximum Power (Impp) 13.54 A Open Circuit Voltage (Voc) 44.11 V Short Circuit Current (Isc) 14.47 A Panel Efficiency 23.1 % Maximum Power (Pmax) 377 Wp Voltage at Maximum Power (Vmpp) 34.09 V Current at Maximum Power (Impp) 11.06 A Open Circuit Voltage (Voc) 41.89 V Short Circuit Current (Isc) 11.68 A Temperature 45±2 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Panel Dimension (H/W/D) 1909x1134x30 mm Weight 21 kg Cell Size 182×91 mm Cell Number 120 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manu
Technology: TOPCon, N-type
Power Range: 480 ~ 500 Wp
Panel Efficiency: 22.16 ~ 23.1 %
Weight: 21 kg
Seller Name: Nantong Gamko New Energy Co., Ltd.
Country: China -
