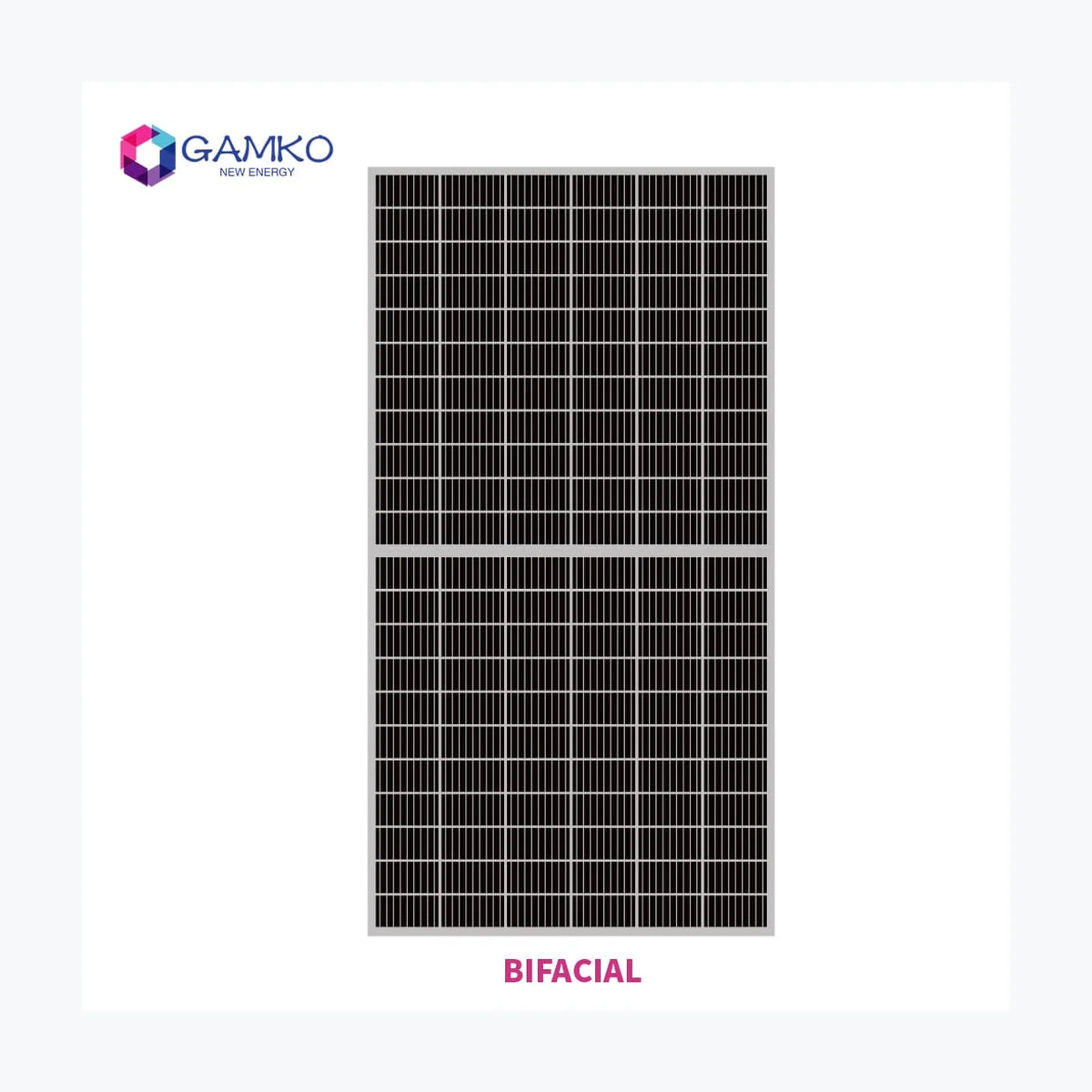

Gamko New Energy GKA210N132-750
Gamko New Energy GKA210N132-750
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-6512
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. GKA210N132-750 Product Warranty 12 Years Power Warranty 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 750 Wp Voltage at Maximum Power (Vmpp) 40.34 V Current at Maximum Power (Impp) 18.59 A Open Circuit Voltage (Voc) 48.41 V Short Circuit Current (Isc) 19.52 A Panel Efficiency 24.14 % Maximum Power (Pmax) 563 Wp Voltage at Maximum Power (Vmpp) 37.06 V Current at Maximum Power (Impp) 15.19 A Open Circuit Voltage (Voc) 46.02 V Short Circuit Current (Isc) 15.75 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Panel Dimension (H/W/D) 2384x1303x33 mm Weight 32 kg Cell Size 210×105 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 730 ~ 750 Wp
Panel Efficiency: 23.5 ~ 24.14 %
Weight: 32 kg
Seller: Nantong Gamko New Energy Co., Ltd.
Country: China -
