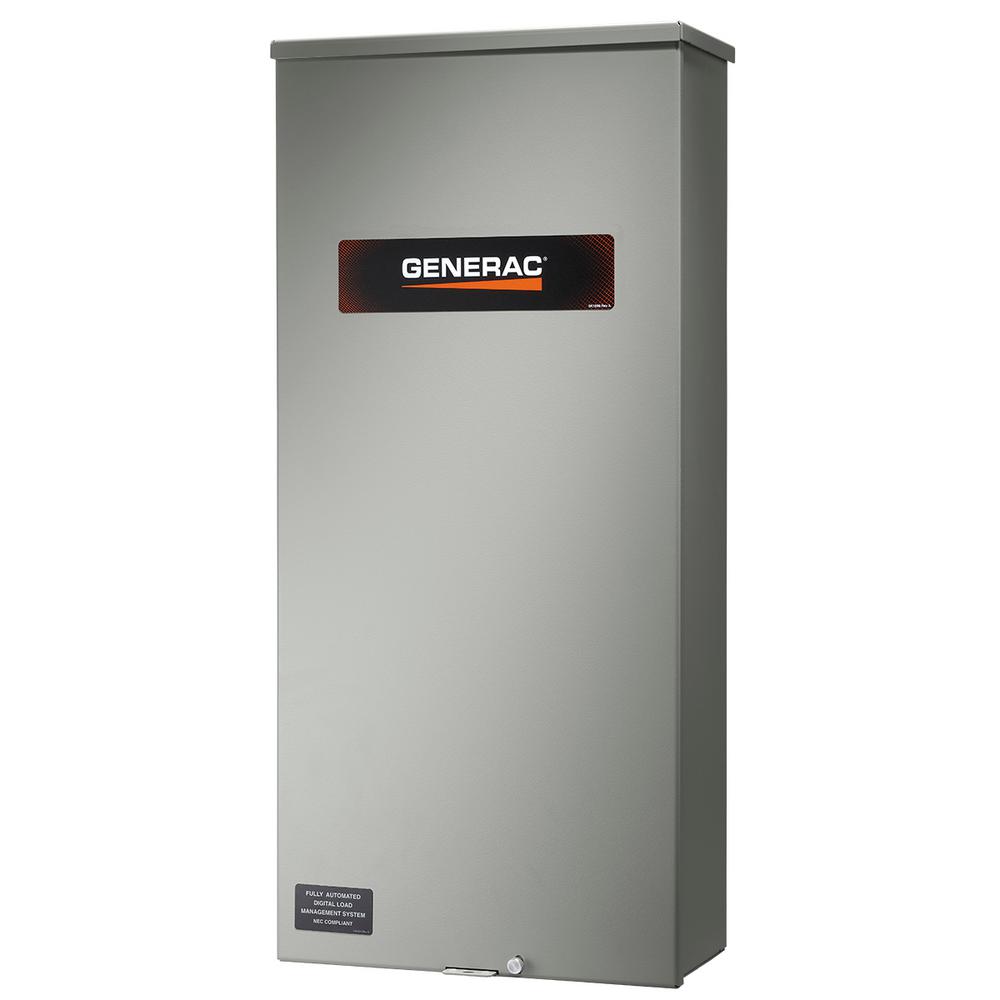

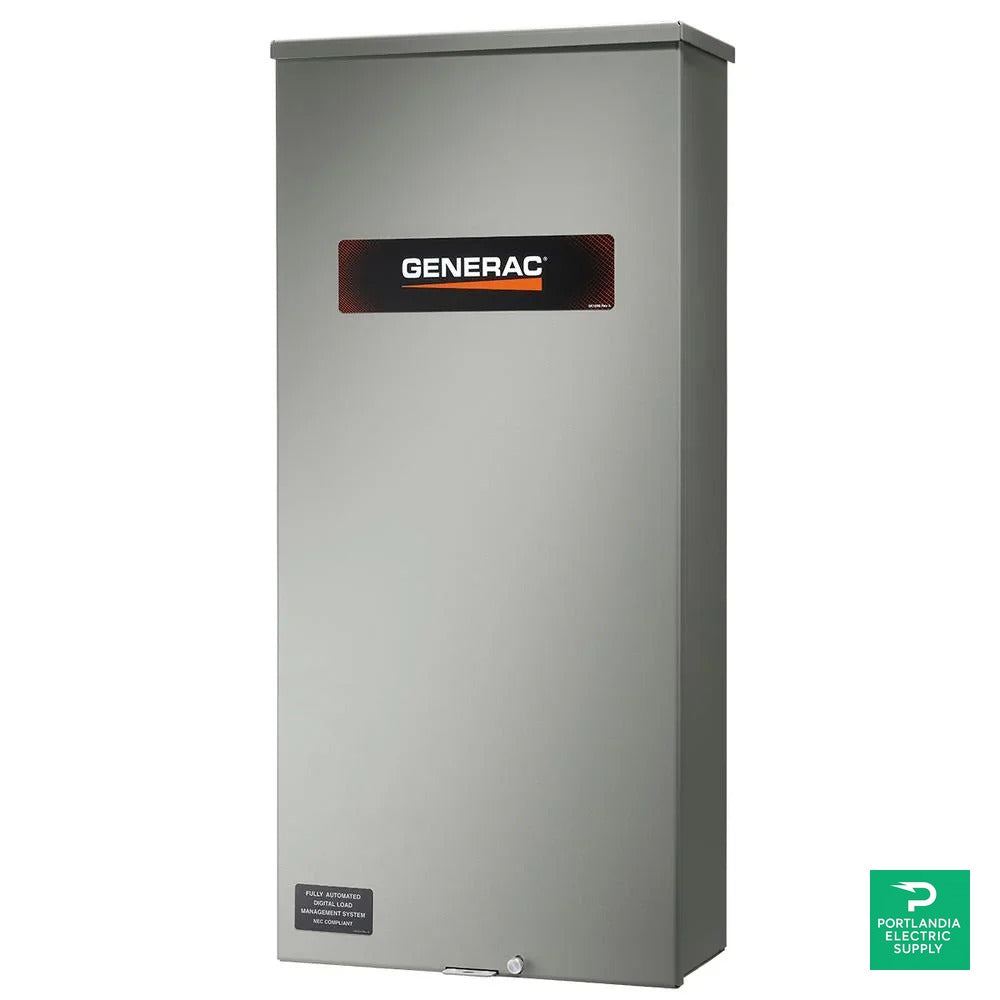

Generac 200A Automatic Transfer Switch - RXSW200A3

The Generac 200A Automatic Transfer Switch, model RXSW200A3, is engineered to provide reliable and efficient power transfer for single-phase generators using Evolution„¢ or Nexus„¢ controllers. This robust switch is ideal for ensuring uninterrupted power supply during outages, maintaining appliance functionality and enhancing overall usability. With features designed to maximize user experience and control, this transfer switch is a vital addition to any backup power system.

Product Features

Reliable Automatic Operation

The RXSW200A3 boasts automatic operation, ensuring seamless transfer of power between the utility supply and generator. This feature is crucial for maintaining continuity of power during outages, providing users peace of mind when the unexpected occurs.

Adjustable Timing Settings

With a factory-set timing interval adjustable between 2 to 1,500 seconds, this transfer switch allows customization based on user needs. This flexibility enhances usability by accommodating various preferences for generator start times during a utility outage.

Manual Override Capability

An impressive feature of the RXSW200A3 is the ability to operate the transfer switch manually without power applied. This ensures that users can maintain control and functionality even in scenarios where power is unavailable.

Heavy-Duty Construction

Crafted with a sturdy aluminum NEMA/UL Type 3R enclosure, this transfer switch is built to withstand tough conditions. The robust design contributes to the durability and longevity of the product, making it a reliable choice for outdoor and indoor applications.

Integrated Load Management Technology

Through the Smart A/C Module (SACM), this automatic transfer switch can effectively manage up to four HVAC loads without additional hardware. This capability simplifies installation and optimizes power management, providing users with enhanced energy efficiency.

How It Works

The Generac RXSW200A3 operates through a combination of sophisticated components and intelligent automation. Primarily, the generator controller manages timing, sensing, and exercise functions that dictate when the transfer switch must engage or disengage based on utility conditions.

Generator Controller

This component is critical for handling all timing and sensing functions, ensuring that the switch performs optimally during power fluctuations. Its intelligence allows for precise transfer operations that enhance overall functionality.

Transfer Mechanism

The automatic transfer mechanism ensures that the switch responds swiftly to changes in power supply, transferring the load from the utility to the generator seamlessly. This process minimizes downtime and keeps essential appliances running smoothly.

Control Interface

The intuitive control interface on the generator makes it easy for users to monitor and manage the transfer switch's settings, ensuring that they remain in control of their power solutions at all times.

Specifications
