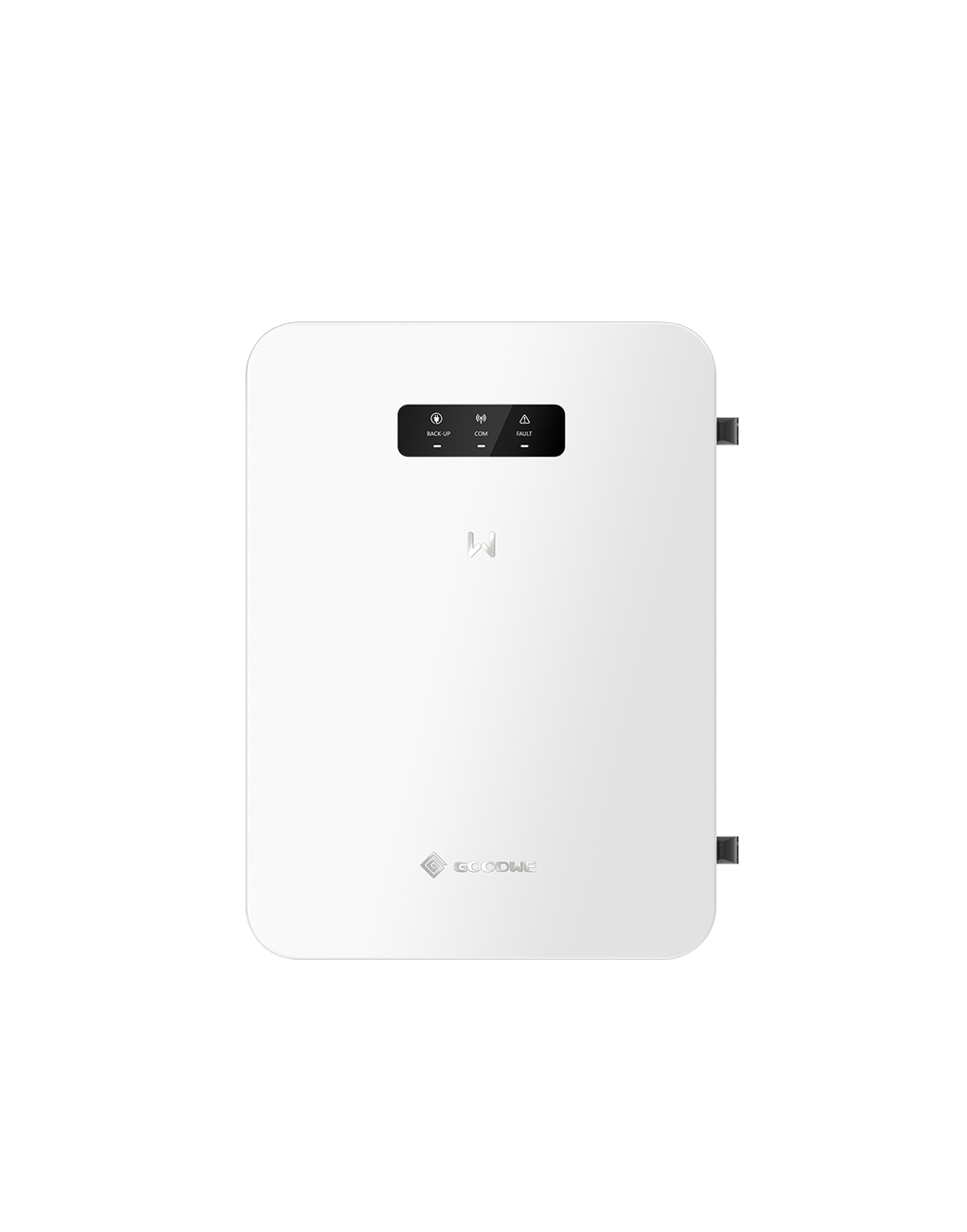

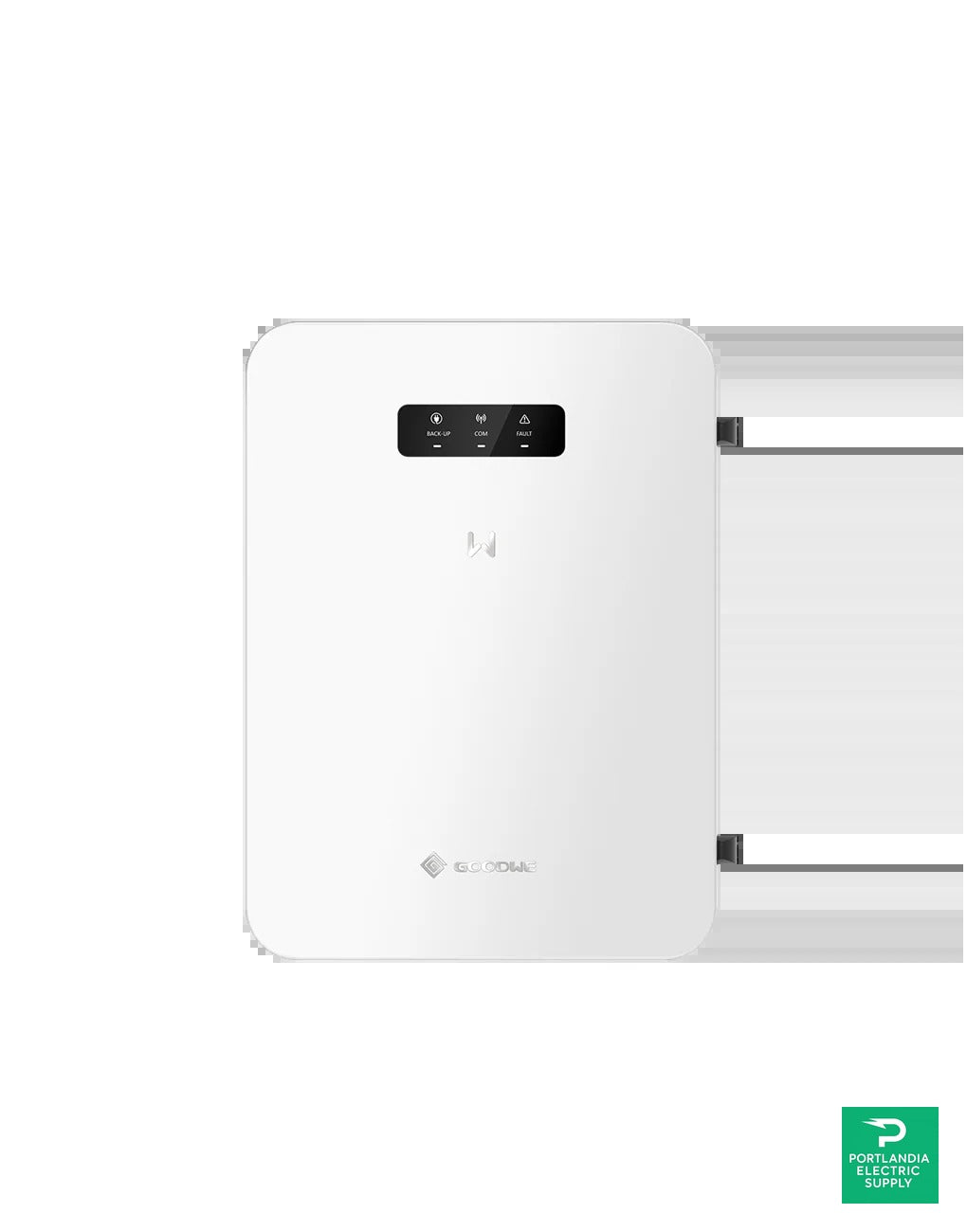

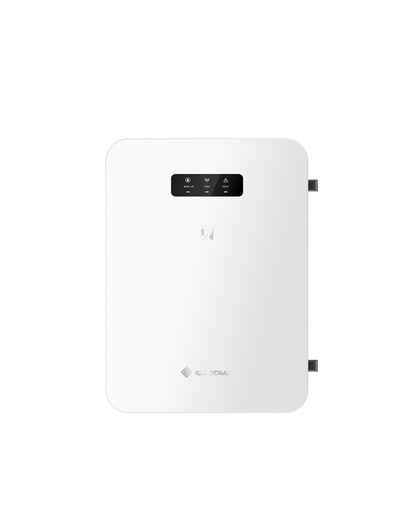

GoodWe Automatic Backup Device — ABD200 is a reliable and advanced solution built to guarantee uninterrupted power supply during grid outages. This device is designed specifically for modern energy storage systems and supports seamless full backup operation when off the grid. It works efficiently with ES-US and SBP-US systems, making it vital for residential and light commercial backup needs.
The GoodWe ABD200 for ES-US/SBP-US full backup when off grid ABD200-63-US10 2CTs - ABD11K4-06-00P switches power sources without user intervention. This automatic transfer ensures safety, reliability, and a steady energy flow during outages.
Factory-matched backup switchgear fits GoodWe ES-US / SBP-US systems. It offers 24/7 residential backup with low-voltage ride-through. The North-America Smart Meter supports up to 4 CTs for precise load monitoring. RS485 communication is available with the inverter. The device is wall-mount and outdoor-rated.
| Model Family | |
|---|---|
| Variants shown | ABD200-40-US10 • ABD200-63-US10 • ABD100-40-US10 • ABD100-63-US10 |
| Electrical (ABD200-63-US10) | |
| Nominal output voltage | 240 V |
| Output voltage range | 211 – 264 V |
| Feed-in type | Split phase |
| Nominal AC voltage of line conductor | 120 / 240 V |
| Nominal AC frequency | 60 Hz |
| AC frequency range | 58.5 – 61.2 Hz |
| Current rating (from grid) | 200 A |
| Max. continuous current from inverter | 47.5 A |
| Maximum overcurrent protection of main breaker | 200 A |
| Maximum overcurrent protection of inverter CB | 63 A |
| General | |
| Operating temperature range | −13 °F to +140 °F (−25 °C to +60 °C) derating ≥ 113 °F / 45 °C |
| Max operating altitude | 9,842 ft (3,000 m) |
| Cooling method | Natural convection |
| Communication with inverter | RS485 |
| Dimensions (W × H × D) | 17.7 × 24 × 5.9 in (450 × 610 × 150 mm) |
| Weight | 26 lb (12 kg) |
| Mounting method | Wall-mounted |
| Ingress protection | Type 3R, IP44 |
| Certifications & Standards | |
| Safety | UL1741, UL1741 PCS CRD, CSA C22.2 No.107-01 |
| EMC | FCC Part 15 Class B |
The GoodWe Automatic Backup Device — ABD200 is an intelligent transfer and isolation device. It allows supported inverters to operate safely in off-grid mode. When power fails, it instantly disconnects the system from the utility grid and activates full backup power.
This backup device eliminates downtime and protects sensitive equipment. It ensures compliance with grid safety rules. The automatic switching enables minimal interruption for users. It's ideal for places requiring reliable power constantly.
The GoodWe Automatic Backup Device — ABD200 isolates the inverter from the grid instantly during outages. This prevents backfeeding and keeps safety compliance intact.
It enables connected loads to work normally even without grid power. This is essential for critical systems needing constant energy supply.
Built for use with ES-US and SBP-US inverters, the device assures optimal communication. It performs well in both grid-connected and off-grid scenarios.
This device’s fast switching reduces power interruption. Such automatic response ensures appliances keep running without noticeable downtime.
Crafted from high-quality components, the device provides long-term reliability. It operates stably even in challenging electrical conditions.
While the utility grid is active, the system runs grid-connected. On grid failure, the GoodWe Automatic Backup Device — ABD200 quickly disconnects the inverter. The system then switches to off-grid backup power immediately.
During this transition:
When power returns, the device reconnects the system automatically. No manual reset or user action is needed.
This device ensures an uninterrupted electricity supply during blackouts. It reduces dependence on external sources effectively.
Automatic disconnection from the grid protects utility workers. It prevents electrical hazards by avoiding unsafe conditions.
The system requires no manual switching. This makes it highly efficient and user-friendly for daily operation.
Perfect for homes, offices, and critical facilities. It guarantees uninterrupted power when most needed.
This device intelligently manages backup power. It maintains efficiency and system performance reliably.
Choosing the GoodWe Automatic Backup Device — ABD200 is a smart investment in safety and automation. Its design supports smooth power transitions and full backup without user effort. It complies with safety standards and offers peace of mind. This device provides dependable performance and top-level protection exactly when needed most.
