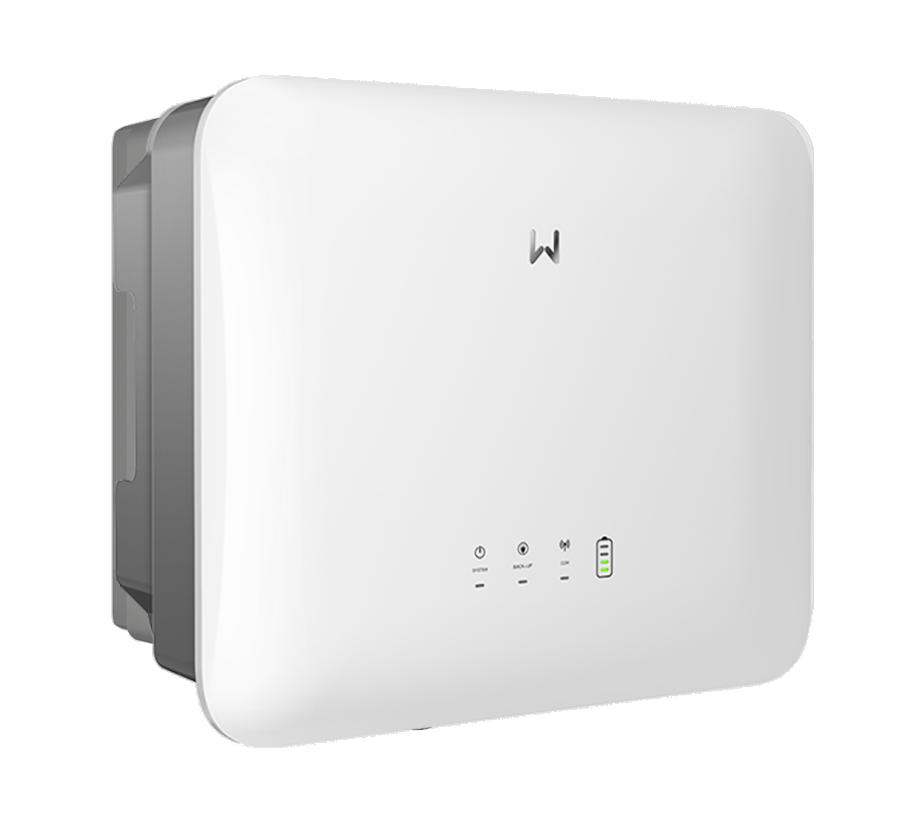

GoodWe ES US Series G2 Hybrid Inverter w/ EZLink LAN - GW6000-ES-US20

GoodWe ES US Series G2 Hybrid Inverter w/ EZLink LAN - GW6000-ES-US20

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock

SKU PES-SPS-SIV-0686

GoodWe ES US Series G2 Hybrid Inverter w/ EZLink LAN - GW6000-ES-US20

$3,494.98 USD

$ $3,494.98 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Technical Details

SKU:PES-SPS-SIV-0686
Documents:
Datasheet
Mpn number: GW6000-ES-US20-LAN
Height:35.4
Width:19.1
Length:7.5

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

GoodWe ES-US (G2) — GW6000-ES-US20, 6.0 kW Split-phase Hybrid Inverter w/ EZLink LAN

The GoodWe ES US Series G2 Inverter - GW6000-ES-US20 is a powerful, next-generation hybrid inverter designed to meet the growing energy independence needs of residential and light commercial solar users. Built with advanced battery compatibility, smart energy management, and reliable backup capabilities, this inverter delivers high efficiency and seamless performance for modern solar power systems. Whether you are upgrading an existing setup or planning a new installation, this inverter provides flexibility, durability, and intelligent control in one compact solution.

ES-US G2 hybrid (HV) with NEMA Type 4X enclosure, whole-home backup via ABD, and 2 MPPT. LAN/Wi-Fi/Bluetooth standard; 4G optional.

Technical Specifications — GW6000-ES-US20

Battery Input
Nominal voltage / range / start	300 V / 80–495 V / 80 V
Inputs / charge & discharge current	1 / 50 A & 50 A
Max charging / discharging power	6,000 W / 6,300 W
PV Input
Max PV input power	9,000 W
Voltage (max / MPPT / start)	600 V / 50–550 V / 60 V
Per-MPPT current (Imax / Isc)	16 A / 23.4 A
MPPT trackers	2
AC Output (On-grid)
Nominal output power	6,000 W
Voltage / range / freq	240 V (211–264 V) / 50–60 Hz (58.5–61.2 Hz)
Max AC current to grid	25.0 A
Max AC current from grid (with EV)	40.0 A
PF / THD	~1 (0.8 lead…0.8 lag) / < 3%
AC Output (Back-up)
Back-up apparent / max with grid	6,000 VA / 12,000 VA @ 10 s
Max output current	25.0 A
Back-up voltage / frequency	240/120 V • 60 Hz
THDv	< 3%
Efficiency
Max efficiency	97.6%
Protection & Safety (integrated)
Features	PV string current; insulation & residual current; reverse-polarity (PV/battery); anti-islanding; AC overcurrent/short-circuit/overvoltage; DC switch; AFCI; Battery Arc-Fault Detection; Rapid Shutdown; DC SPD II; AC SPD III
General
Operating temp / humidity / altitude	−31~+140 °F / 0–95% / 9,842 ft
Cooling / UI	Natural convection / LED, App
Comms	BMS: RS485, CAN • Meter: RS485 • Portal: LAN + Bluetooth + Wi-Fi (4G optional)
Dimensions / Weight	19.1 × 35.4 × 7.5 in • 72.3 lb
Noise / Topology / Night self-use	< 20 dB / Non-isolated / < 20 W
Ingress / Mounting	NEMA Type 4X / Wall-mounted
Certifications
Grid interconnection	UL1741 SB, CA Rule 21, HECO Rule 14, IEEE 1547, 1547.1
Safety / EMC	UL 1741, CSA C22.2 No.107.1, UL1998, UL1699B / FCC Part 15 Class B

EV Charger (Optional)

Level / Power / Freq	AC Level 2 / 9,600 W / 60 Hz
Max continuous current	40 A (selectable; 16 A default)
App control / Cable	Wi-Fi, Bluetooth / 7.6 m
Env. / Degree	−31~+140 °F; ≤ 9,842 ft / NEMA Type 4X
Standards	UL2594, UL2231-1/-2, NEC 625; SAE J1772

All specs per ES-US datasheet. ABD required for backup; external auto-transformer not needed. :contentReference[oaicite:13]{index=13}

Overview of the GoodWe ES US Series G2 Inverter - GW6000-ES-US20

The GoodWe ES US Series G2 Inverter - GW6000-ES-US20 is engineered for hybrid solar systems that require both grid interaction and energy storage. It supports battery charging and discharging while maintaining stable power flow to your home or facility. This inverter is ideal for users who want reliable backup during outages while maximizing self-consumption of solar energy.

With the GoodWe ES US Series G2 Hybrid Inverter w/ EZLink LAN - GW6000-ES-US20, system monitoring and communication become more efficient thanks to its integrated EZLink LAN functionality. This ensures stable connectivity, remote diagnostics, and real-time performance tracking.

Advanced Hybrid Technology for Smart Energy Use

One of the key strengths of the GoodWe ES US Series G2 Inverter - GW6000-ES-US20 is its advanced hybrid technology. It intelligently manages energy between solar panels, battery storage, and the grid. During peak sunlight hours, excess solar energy can be stored in batteries for later use, reducing grid dependence and electricity costs.

The inverter is designed to switch seamlessly between grid-connected and backup modes, ensuring uninterrupted power supply during grid outages. This makes it a dependable solution for energy security and resilience.

EZLink LAN Connectivity for Reliable Monitoring

The GoodWe ES US Series G2 Hybrid Inverter w/ EZLink LAN - GW6000-ES-US20 includes built-in EZLink LAN communication, offering stable and secure system connectivity. This feature allows users and installers to monitor system performance, analyze energy production, and detect potential issues remotely.

With enhanced communication reliability, system downtime is minimized, and maintenance becomes more proactive. EZLink LAN also ensures consistent data transmission even in environments where wireless signals may be unstable.

High Efficiency and Reliable Performance

Efficiency is a critical factor in solar energy systems, and the GoodWe ES US Series G2 Inverter - GW6000-ES-US20 is designed to deliver optimal performance. It supports high conversion efficiency, ensuring maximum utilization of solar energy while minimizing losses.

The inverter also features intelligent thermal management and robust internal protection mechanisms. These features enhance durability, improve lifespan, and maintain stable performance under varying environmental conditions.

Battery Compatibility and Backup Power Capability

The GoodWe ES US Series G2 Inverter - GW6000-ES-US20 supports a wide range of compatible battery systems, allowing flexibility in energy storage selection. This makes it suitable for both new solar installations and system upgrades.

In backup mode, the inverter provides fast switching to ensure essential loads remain powered during outages. This is particularly beneficial for homes and businesses that rely on continuous power for critical operations.

Designed for Easy Installation and Scalability

Ease of installation is another advantage of the GoodWe ES US Series G2 Inverter - GW6000-ES-US20. Its compact design and intuitive wiring layout simplify the installation process, reducing labor time and complexity.

The inverter is also scalable, making it future-ready for expanding energy needs. As energy consumption grows or battery capacity increases, the system can adapt without major modifications.
