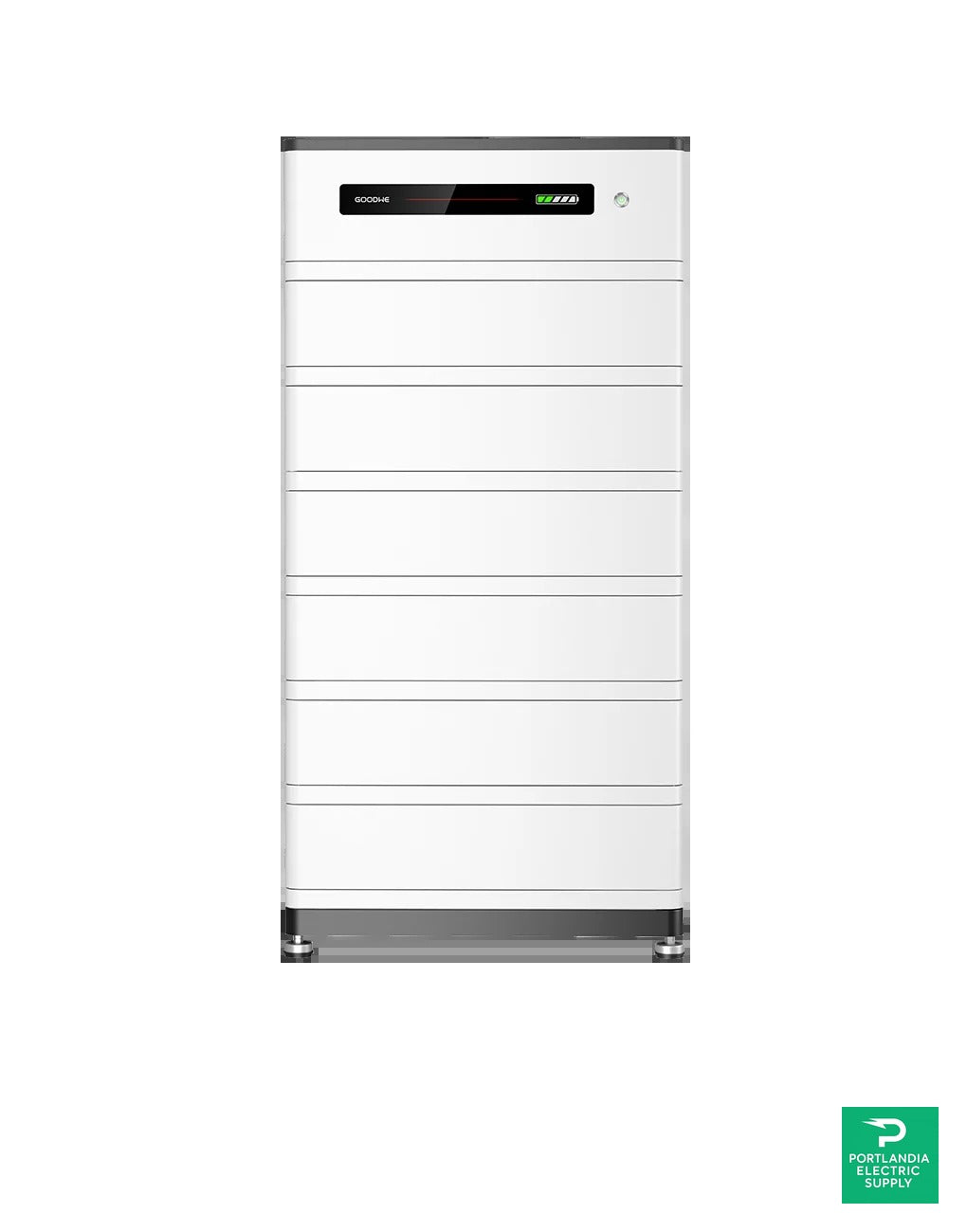

Goodwe Lynx Home FH-US Series 16kWh Includes 1 PCU+ 5 LFP Battery Modules - LX F16.0-30

Goodwe Lynx Home FH-US Series 16kWh Includes 1 PCU+ 5 LFP Battery Modules - LX F16.0-30

$8,258.72 USD
$8,258.72 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-ESS-AIO-0011
  • Height: 29.5
  • Length: 15
  • Width: 23.6
View full details

Product Description

  • GoodWe Lynx FH-US (HV) — LX F16.0-30, 16 kWh Stack

    Stackable high-voltage LFP battery for North America; Plug-&-Play modules with auto-recognition and CAN communication. IP65 outdoor-ready; compatible with ES-US / SBP-US / A-ES / A-BP inverters. :contentReference[oaicite:3]{index=3}

    Technical Specifications (from GoodWe datasheet)

    Configuration
    Usable Energy (kWh) 16.0
    Battery Module LX F3.2-30: 64 V, 3.2 kWh
    Number of Modules 5
    Cell Type LFP (LiFeO4)
    Electrical
    Nominal Voltage (V) 320
    Operating Voltage Range (V) 285 – 360
    Nominal Dis- / Charge Current (A) 35
    Nominal Power (kW) 11.20
    Environment
    Operating Temperature Range (°F) Charge: +32 ~ +122 (0 ~ +50 °C); Discharge: +5 ~ +122 (−15 ~ +50 °C)
    Relative Humidity ≤ 95%
    Max. Operating Altitude (ft) ≤ 9,842 (3,000 m)
    Communication
    Protocol CAN
    Mechanical
    Battery Module Weight 83.8 ± 4.4 lb (38 ± 2 kg)
    PCU Weight 37.5 ± 2.2 lb (17 ± 1 kg)
    System Weight 468.5 lb (212.5 kg)
    Dimensions (W × H × D) 23.6 × 41.7 × 15.0 in (599.4 × 1059.2 × 381 mm)
    Ingress Protection Rating IP65
    Mounting Method Ground-Mounted
    Standards & Certification
    Safety UL1973; UL9540A-2019
    EMC FCC Part 15
    Transportation UN38.3

    Usable energy tested at 100% DoD, 0.2C, 77 ± 2 °F at beginning of life; current/power derating depends on temperature & SOC. :contentReference[oaicite:4]{index=4}
