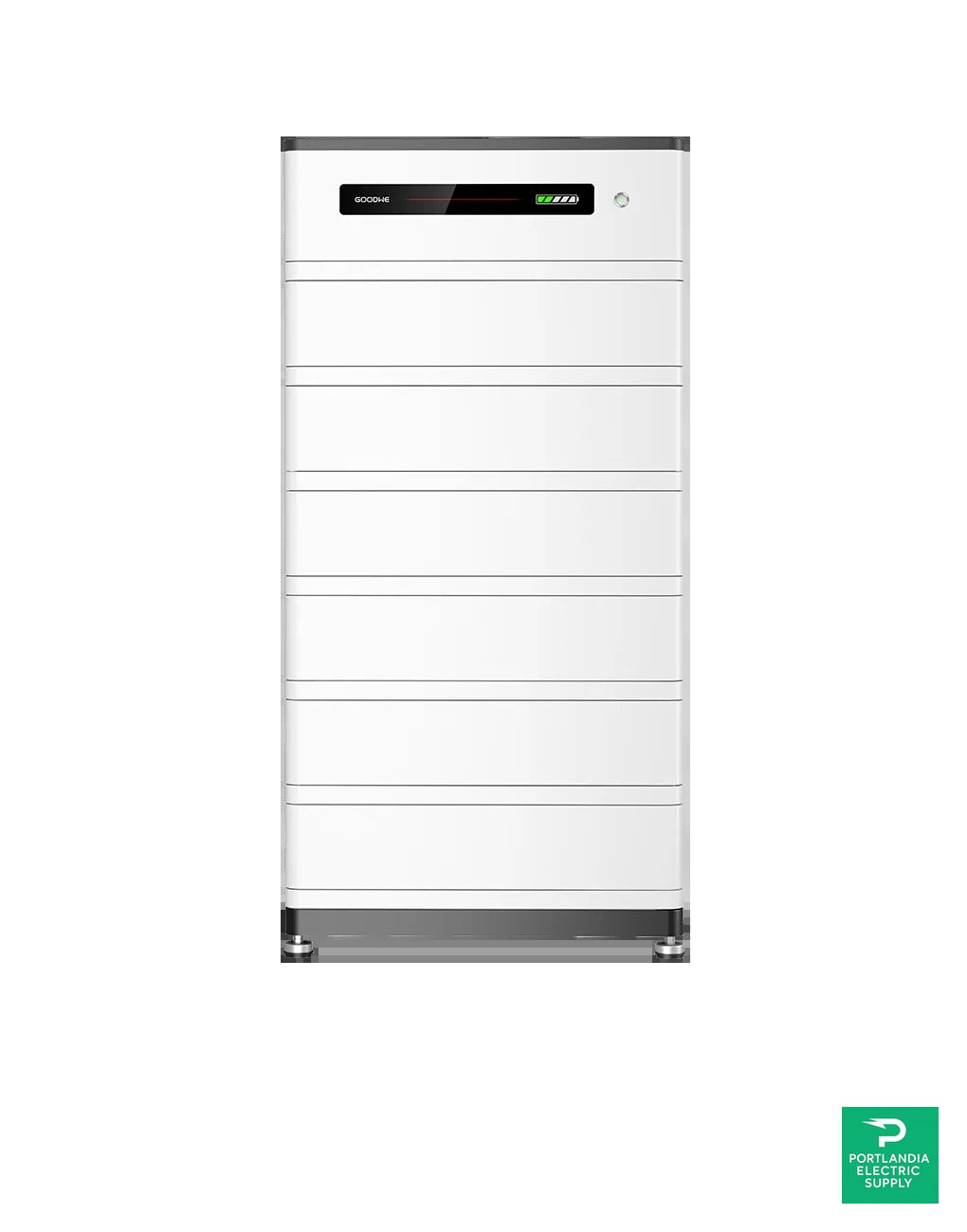

Goodwe Lynx Home FH-US Series 19.2kWh Includes 1 PCU+ 6 LFP Battery Modules - LX F19.2-30

Goodwe Lynx Home FH-US Series 19.2kWh Includes 1 PCU+ 6 LFP Battery Modules - LX F19.2-30

$9,647.48 USD
$9,647.48 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-ESS-AIO-0012
  • Height: 29.5
  • Length: 15
  • Width: 23.6
View full details

Product Description

  • GoodWe Lynx FH-US (HV) — LX F19.2-30, 19.2 kWh Stack

    Top-capacity stack in the FH-US range with six 3.2 kWh modules. Plug-&-Play wiring, auto-recognition, CAN communication; outdoor IP65; up to 8 towers in parallel. :contentReference[oaicite:7]{index=7}

    Technical Specifications (from GoodWe datasheet)

    Configuration
    Usable Energy (kWh) 19.2
    Battery Module LX F3.2-30: 64 V, 3.2 kWh
    Number of Modules 6
    Cell Type LFP (LiFeO4)
    Electrical
    Nominal Voltage (V) 384
    Operating Voltage Range (V) 342 – 432
    Nominal Dis- / Charge Current (A) 35
    Nominal Power (kW) 13.44
    Environment
    Operating Temperature Range (°F) Charge: +32 ~ +122 (0 ~ +50 °C); Discharge: +5 ~ +122 (−15 ~ +50 °C)
    Relative Humidity ≤ 95%
    Max. Operating Altitude (ft) ≤ 9,842 (3,000 m)
    Communication
    Protocol CAN
    Mechanical
    Battery Module Weight 83.8 ± 4.4 lb (38 ± 2 kg)
    PCU Weight 37.5 ± 2.2 lb (17 ± 1 kg)
    System Weight 552.3 lb (250.5 kg)
    Dimensions (W × H × D) 23.6 × 47.8 × 15.0 in (599.4 × 1214.1 × 381 mm)
    Ingress Protection Rating IP65
    Mounting Method Ground-Mounted
    Standards & Certification
    Safety UL1973; UL9540A-2019
    EMC FCC Part 15
    Transportation UN38.3

    Usable energy test conditions and derating notes per datasheet. :contentReference[oaicite:8]{index=8}
