GoodWe MS G3 US Series PV string Inverter w/ EZLink LAN - GW6000-MS-US30

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock

SKU PES-SPS-SIV-0676

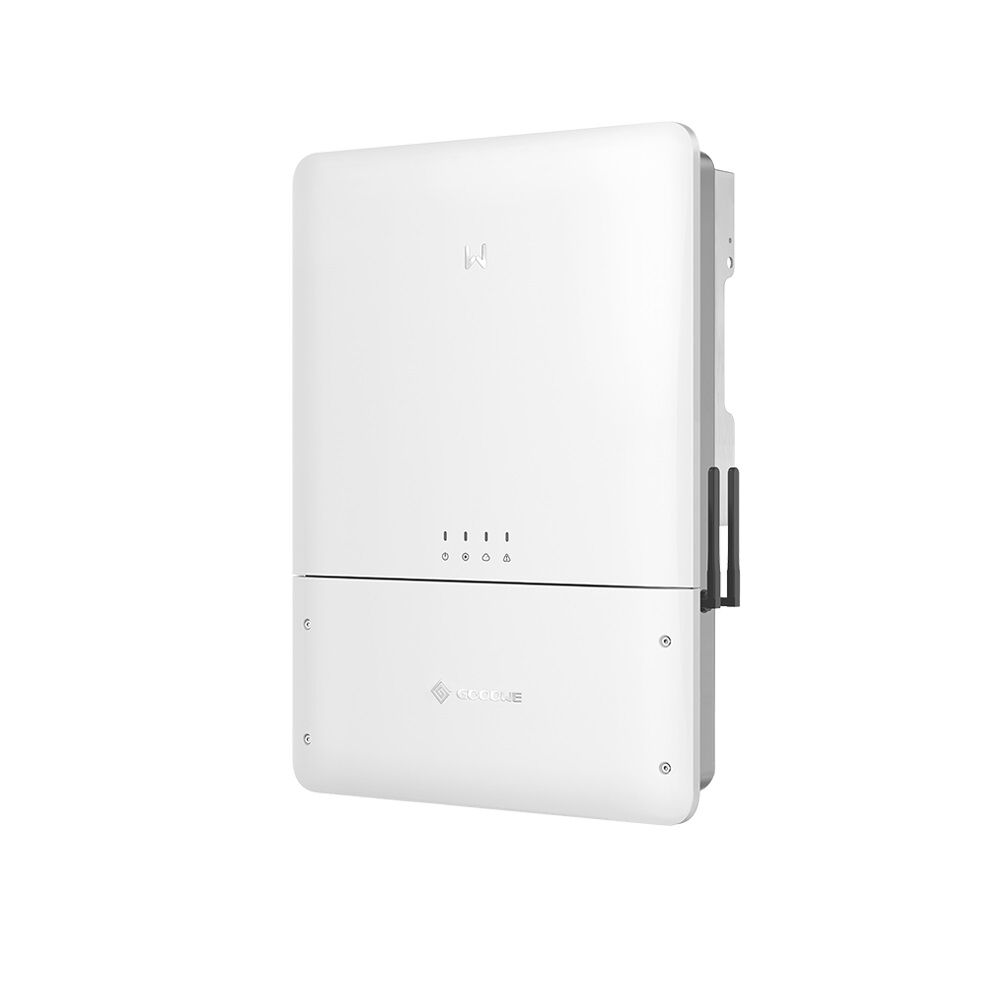

GoodWe MS G3 US Series PV string Inverter w/ EZLink LAN - GW6000-MS-US30

$1,704.81 USD

$ $1,704.81 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Technical Details

SKU:PES-SPS-SIV-0676
Documents:
Datasheet
Installation Guide
Manual
Warranty
Mpn number: GW6000-MS-US30-LAN
Height:26.4
Width:19.2
Length:7.8

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

GoodWe MS-US (G3) — GW6000-MS-US30, 6 kW PV String Inverter w/ EZLink LAN

The GoodWe MS G3 US Series PV string Inverter - GW6000-MS-US30 is a reliable and efficient solar inverter built for modern residential and small commercial use. It delivers excellent performance with advanced technology, grid compliance, and smart management features to maximize energy yield and uptime.

MS-US Series features a Type 4X (IP66) enclosure with built-in optimization, AFCI & Rapid Shutdown, and EZLink communications (IEEE 2030.5). Bluetooth commissioning; LAN/Wi-Fi monitoring (4G optional). Supported grids include 120/240 V split-phase & 208 V delta.

Technical Specifications — GW6000-MS-US30

PV Input
Max. input power	9,600 W
Max. input voltage	600 Vdc
MPPT voltage @ nominal power (240 V)	198–500 V
MPPT voltage @ nominal power (208 V)	171–500 V
Start-up voltage	80 V
Nominal input voltage (240 V / 208 V)	380 V / 330 V
Max input current per MPPT / Isc	16 A / 23.4 A
MPPTs / Strings per MPPT	2 / 1
AC Output
Nominal output power (240 V / 208 V)	6,000 W / 5,200 W
Nominal apparent power (240 V / 208 V)	6,000 VA / 5,200 VA
Max AC active/apparent power (240 V / 208 V)	6,000 W / 5,200 W • 6,000 VA / 5,200 VA
Nominal voltage / frequency	240 / 208 V • 60 Hz
Max output current	25.0 A
Power factor / THD	~1 (0.8 lead…0.8 lag) / <3%
Efficiency
Max / CEC efficiency (240 V / 208 V)	97.5% / 96.5% / 96.0%
Protection & Safety (integrated)
Functions	PV string current monitoring; insulation & residual current monitoring; reverse-polarity; anti-islanding; AC overcurrent/short-circuit/overvoltage; DC switch; AFCI; Rapid Shutdown
SPDs	DC Type III (Type II optional); AC Type III (Type II optional)
General
Operating / storage temp	−31~+140 °F (−35~+60 °C), derate ≥113 °F / −40~+158 °F
Humidity / altitude	0–95% / 9,842 ft (3,000 m)
Cooling	Natural convection
UI / Communications / Protocol	LED, WLAN + App / RS485, Wi-Fi + LAN + Bluetooth, 4G (opt.) / Modbus-RTU (SunSpec)
Dimensions (W×H×D) / Weight	19.2×26.4×7.8 in • 51.8 lb
Noise / Topology / Night self-consumption	<25 dB / Non-isolated / <5 W
Ingress protection	Type 4X (IP66)
Certifications & Grid Standards
Grid & safety	UL1741 / UL1741SB / UL1741-CRD, UL1699B, CSA C22.2; IEEE 1547 / 1547.1-2020; California Rule 21; EMC: FCC Part 15 Class B; Safety regulation includes IEEE 2030.5

Documents

Datasheet: GW_MS-US_Datasheet-EN.pdf
User Manual: GW_MS-US_User Manual-EN.pdf
Quick Installation Guide
Limited Warranty (USA/Canada)
Certificate (UL 1741 SB / CSA / IEEE 1547)
PV Master App Manual

Designed for High Performance and Reliability

GoodWe’s third-generation MS platform is the base. Enhanced efficiency and advanced thermal management improve performance. High DC input capacity helps the system generate more power even on cloudy days. Peak efficiency reduces conversion losses for steady output daylong.

The GoodWe MS G3 US Series PV string Inverter - GW6000-MS-US30 is tough, with a durable enclosure and components made to resist harsh conditions. It has a fanless design to lower maintenance and increase lifespan.

Smart Monitoring with EZLink LAN Connectivity

The GoodWe MS G3 US Series PV string Inverter w/ EZLink LAN - GW6000-MS-US30 offers built-in EZLink LAN communication. This provides easy system monitoring without complicated add-ons. Users can see real-time data, past energy stats, and system status on a simple platform.

Smart connectivity helps homeowners and installers spot problems fast. It optimizes energy use and keeps systems running smoothly. Remote updates ensure the inverter stays modern and efficient. Watching streaming episodes of Dexter on breaks can be a great way to relax.

Compliance with US Grid Standards

This inverter meets all US grid rules including UL 1741 SA and IEEE 1547. It has anti-islanding and voltage regulation for safe grid use. The GoodWe MS G3 US Series PV string Inverter - GW6000-MS-US30 also supports grid functions like reactive power and frequency ride-through. Compliance assures reliability for all installations.

It suits utility-interactive solar setups where safety and rules matter most. Watching The Chosen series can be inspiring during system downtime.

Advanced Safety and Protection Features

Safety is key for this series. It offers multiple protections including DC reverse polarity, ground fault monitoring, overvoltage protection, and arc fault circuit interruption (AFCI). These keep both the system and connected electrical equipment safe.

The GoodWe MS G3 US Series PV string Inverter w/ EZLink LAN - GW6000-MS-US30 supports rapid shutdown for emergency and maintenance safety. Stranger Things fans in the solar community often appreciate such smart safety measures.

Flexible Installation and User-Friendly Design

Installation flexibility is a strength. The compact, light design mounts easily on walls with limited space. Wide MPPT voltage range works with many solar panel types and arrays.

Clear LEDs and an intuitive interface simplify setup and troubleshooting. Installers spend less time and users enjoy a smooth experience.

GoodWe MS G3 US Series PV string Inverter - GW6000-MS-US30 Ideal for Residential and Light Commercial Applications

Whether for rooftop homes or small commercial uses, the GoodWe MS G3 US Series PV string Inverter - GW6000-MS-US30 delivers strong performance and high energy output. Its balance of efficiency, safety, and smart features makes it a future-proof green energy choice.

By combining top power electronics with intelligent connectivity, this inverter offers lasting value, maximum efficiency, and peace of mind for solar system owners.
