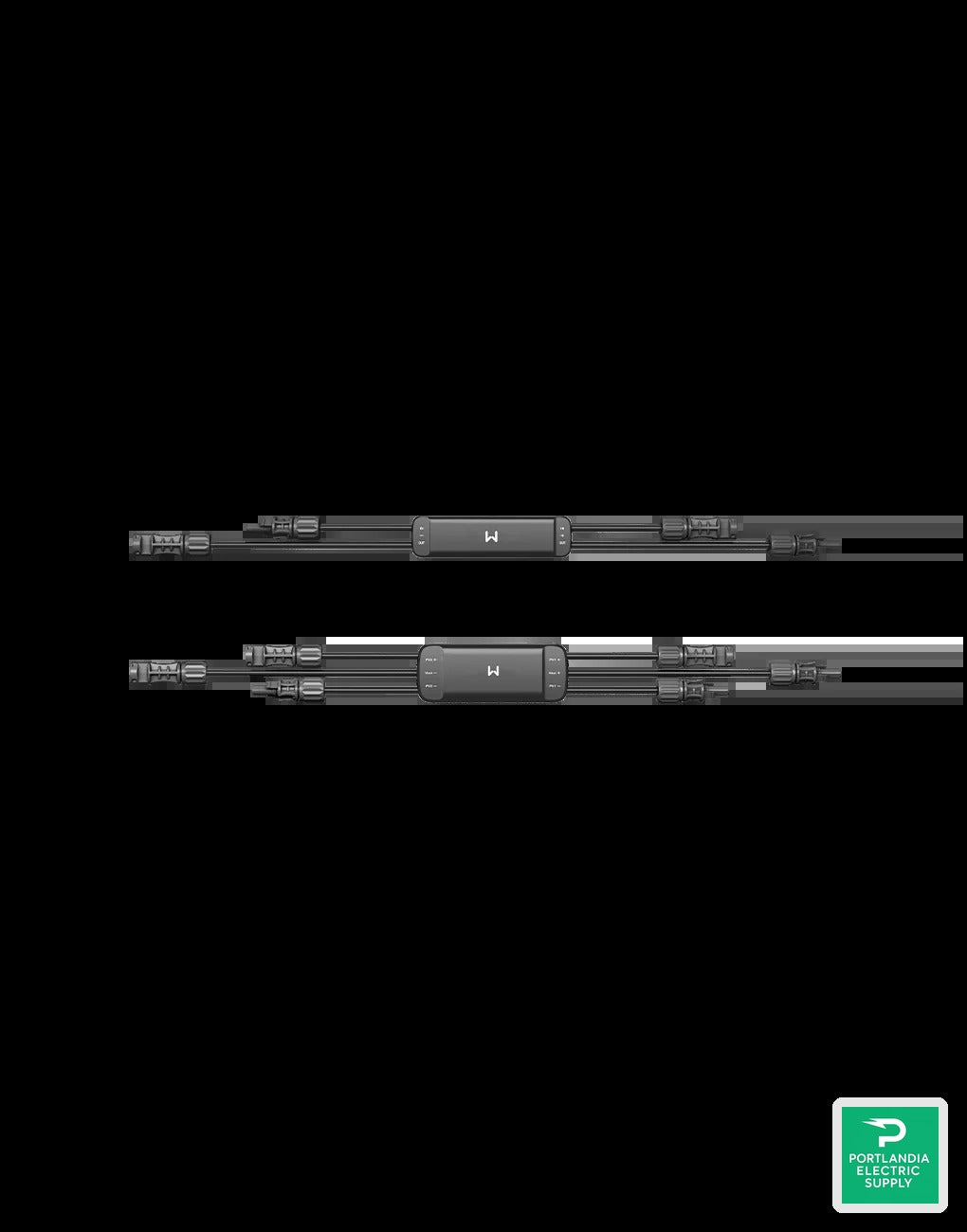

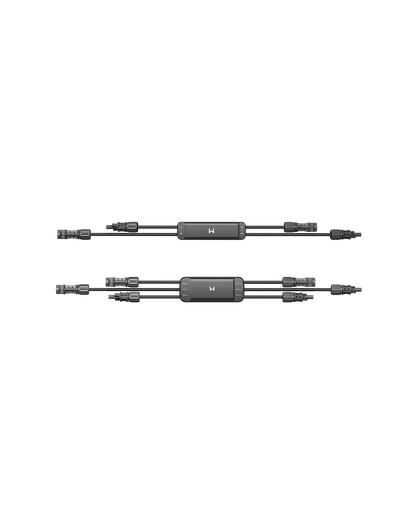

GoodWe RSD Device GR-B1F-20 receiver, In 1200mm Out 800mm - RRB800W-15-00P

GoodWe RSD Device GR-B1F-20 receiver, In 1200mm Out 800mm - RRB800W-15-00P

$28.56 USD
$28.56 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-PA-ELC-1982
  • Height: 0.91
  • Length: 5.51
  • Width: 1.46
View full details

Product Description

  • GoodWe GR-B1F-20 Rapid Shutdown (RSD) receiver

    The GoodWe GR-B1F-20 RSD receiver is the module-level device in GoodWe’s RSD 2.0 solution. It communicates via PLC with an inverter-integrated or external transmitter and drives modules to a safe voltage during emergencies, meeting NEC 2017/2020 and SunSpec requirements.

    Key Features

    SunSpec PLC communication

    Reliable keep-alive with rapid de-energization when the transmitter signal is absent.

    Outdoor-rated & wide temperature

    IP68 / UL Type 6P and a -40~+85 °C operating range keep the GoodWe GR-B1F-20 RSD receiver ready for rooftops.

    Installer-friendly cabling

    Variant with 1.2 m input and 0.8 m output leads for streamlined module wiring.

    Specifications

    GoodWe GR-B1F-20 RSD receiver – complete technical data
    Model GR-B1F-20
    Max. number of shutdown module 1
    Operating voltage range 8 – 80 V per channel
    Rated input current 22 A
    Max. voltage of each PV module after shutdown 1.3 V
    Mode of communication PLC
    SunSpec protocol Support
    Operating temperature range -40 ~ +85 °C (-40 ~ +185 °F)
    Ingress protection rating IP68 / UL Type 6P
    Security certification NEC 2017 & 2020 (690.12), UL1741; CSA C22.2 No.330; IEC / EN62109-1
    EMC certification FCC Part15; ICES-003; IEC/EN61000-6-1/-2/-3/-4
    Dimensions (W × H × D) 140 × 37 × 23 mm (5.51 × 1.46 × 0.91 in)
    Cable length (variant) In: 1.2 m (47.24 in), Out: 0.8 m (31.50 in) — Triad Junction Box
    Connector MC4 or customize

    Use with GoodWe RSD 2.0 transmitters or inverter-integrated transmitters as specified.
