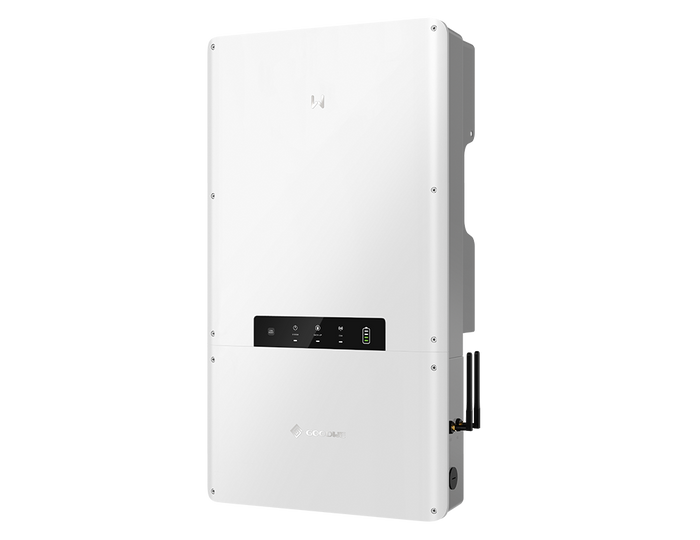

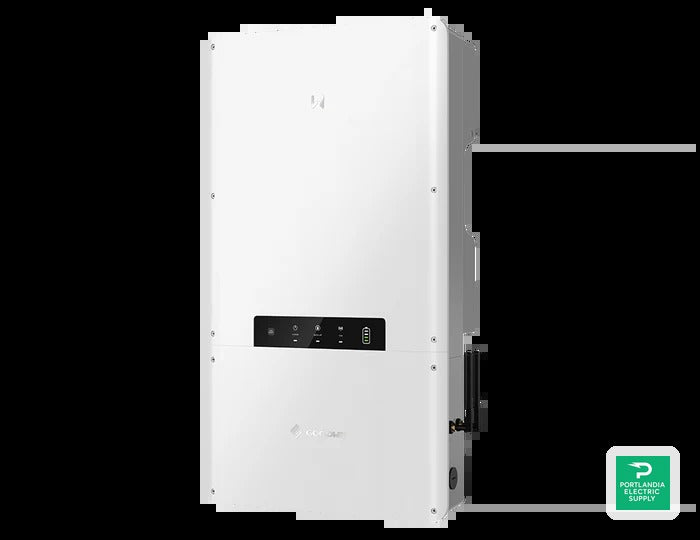

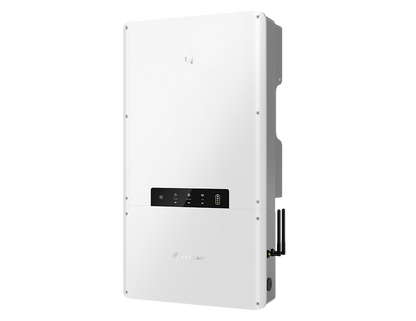

GoodWe SBP US Series G2 AC Couple Inverter w/ EZLink 4G - GW5000-SBP-US20

Goodwe GoodWe SBP US Series G2 AC Couple Inverter w/ EZLink 4G - GW5000-SBP-US20 | Portlandia Electric Supply

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock

SKU PES-SPS-SIV-0699

GoodWe SBP US Series G2 AC Couple Inverter w/ EZLink 4G - GW5000-SBP-US20

$2,976.68 USD

$ $2,976.68 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

GoodWe SBP-US (G2) — GW5000-SBP-US20, 5.0 kW Split-phase AC-Coupled w/ EZLink + 4G

North-America AC-coupled retrofit inverter with built-in autotransformer (no extra auto-transformer for unbalanced loads), micro-grid/backup operation, and generator compatibility. Communications per datasheet: LAN (4G optional) + Bluetooth + Wi-Fi; this listing includes the Ezlink + 4G bundle. Outdoor-rated NEMA 4X, passive cooling for low noise. :contentReference[oaicite:2]{index=2}

Technical Specifications — GW5000-SBP-US20

Battery Input
Battery type	Li-ion (HV)
Nominal battery voltage	300 V
Battery voltage range	80–495 V*
Start-up voltage	80 V
Number of battery inputs	1
Max continuous charge / discharge current	50 A / 50 A
Max charging / discharging power	5,000 W / 5,250 W
AC Output (On-grid)
Nominal output power	5,000 W
Nominal apparent power to grid	5,000 VA
Max apparent power to grid / from grid	5,000 VA / 5,000 VA
Max apparent power from grid w/o EV charger	5,000 VA
Nominal output voltage / range	240 V / 211–264 V
Grid frequency / range	60 Hz / 58.5–61.2 Hz
Max AC current to grid / from grid	20.8 A / 20.8 A (40.0 A with EV charger)
Power factor / THD	~1 adjustable (0.8 lead…0.8 lag) / <3%
AC Output (Back-up)
Back-up nominal apparent power	5,000 VA
Max apparent power with grid	10,000 VA @ 10 s**
Max output current	20.8 A
Nominal back-up voltage / frequency	240/120 V • 60 Hz
Back-up THDv (@ linear load)	<3%
Efficiency
Max / CEC / Battery→AC	97.0% / 96.0% / 97.0%
Protection (integrated)
Residual-current monitoring; battery reverse-polarity; anti-islanding; AC over-current/short-circuit/over-voltage; AC SPD Type III; Battery Arc-Fault Detection.
General
Operating temp / humidity / altitude	−31 to +140 °F (−35 to +60 °C) / 0–95% / ≤ 9,842 ft (3,000 m)
Cooling / UI	Natural convection / LED, App
Communications	BMS: RS485, CAN • Meter: RS485 • Portal: LAN (4G optional) + Bluetooth + Wi-Fi
Dimensions (W×H×D) / Weight	19.1 × 35.4 × 7.5 in • 65.9 lb
Noise emission	<20 dB
Topology / Night self-consumption	Non-isolated / <20 W***
Ingress protection / Mounting	NEMA Type 4X / Wall-mounted
Certifications
Grid interconnection	UL1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1
Safety / EMC	UL 1741, CSA C22.2 No.107.1, UL1998, UL1699B / FCC Part 15 Class B

* Battery discharge/charge power limited by voltage; in micro-grid the max battery voltage is 450 V. ** Reached only if PV and battery power are sufficient. *** Datasheet footnote “*3: No Back-up Output”. :contentReference[oaicite:3]{index=3}

EV Charger (Optional — series block)

Charging level	AC Level 2
Nominal AC power / frequency	9,600 W / 60 Hz
Maximum continuous output current	40 A (selectable 16/24/32/40 A; default 16 A)
Configuration & indicator / Cable length	App (Wi-Fi, Bluetooth) / 7.6 m*
Operating temp / altitude	−31 to +140 °F / ≤ 9,842 ft
Protection degree / Standards	NEMA 4X / UL2594, UL2231-1/-2; NEC 625; SAE J1772

* EV charger cable ordered separately (datasheet note). :contentReference[oaicite:4]{index=4}
