GoodWe WiFi/LAN Dongle - GA10081-68-00P

GoodWe WiFi/LAN Dongle - GA10081-68-00P

$67.20 USD
$67.20 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-PA-ELC-1979
  • Height: 96
  • Length: 32
  • Width: 49
View full details

Product Description

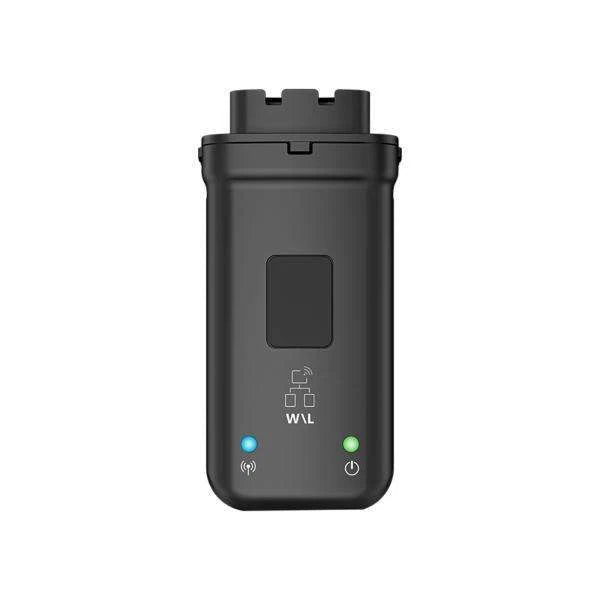

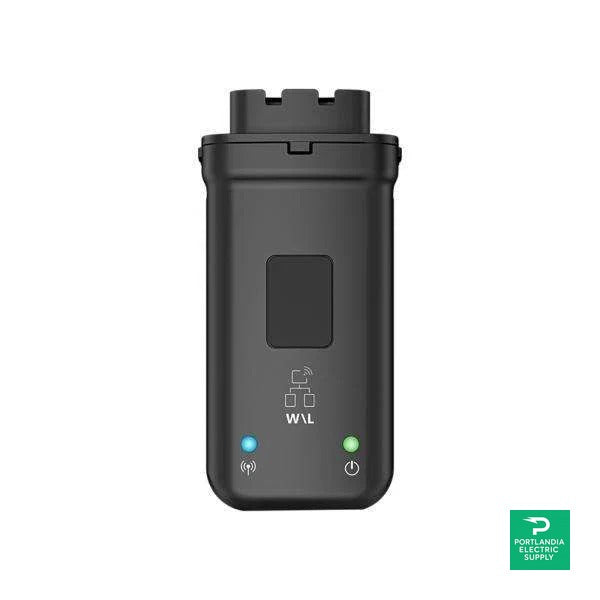

  • GoodWe Wi-Fi/LAN Kit 2.0 communication dongle

    The GoodWe Wi-Fi/LAN Kit 2.0 is a compact, plug-and-play communication module that adds reliable Wi-Fi and Ethernet to GoodWe inverters. It supports encrypted data, breakpoint retransmission to prevent data loss, and quick configuration via Bluetooth—ideal for installers and fleet operators.

    Key Features

    Dual networking built in

    Wi-Fi (802.11 b/g/n @2.4 GHz) and 10/100 Mbps LAN give flexible on-site or remote connectivity.

    Fast setup & robust operation

    USB plug-in design with Bluetooth V4.2 local config and GoodWe Wi-Fi/LAN Kit 2.0 breakpoint retransmission for stable logging.

    Outdoor-ready

    IP65 enclosure and -30~+60 °C operating range for harsh environments.

    Specifications

    GoodWe Wi-Fi/LAN Kit 2.0 – complete technical data
    Model WiFi/LAN Kit-20
    Max. number of connected devices 1
    Input voltage 5 V
    Power consumption ≤ 3 W
    Connection interface USB
    Ethernet interface 10M / 100 Mbps self-adaption
    WLAN IEEE 802.11 b/g/n @ 2.4 GHz
    WLAN max. transmit power < 20 dBm
    WLAN bandwidth 20 / 40 MHz
    Wi-Fi operating mode STA
    Bluetooth V4.2
    Dimensions (W × H × D) 48.3 × 159.5 × 32.1 mm (1.90 × 6.28 × 1.26 in)
    Weight 82 g (0.18 lb)
    Indicator LED × 2
    Installation Plug and Play
    Operating temperature range -30 ~ +60 °C
    Storage temperature range -40 ~ +70 °C
    Relative humidity 0 – 95%
    Ingress protection rating IP65
    Max. operating altitude 4000 m

    Compatible GoodWe inverter/IoT lists and downloads available via the official product page.
