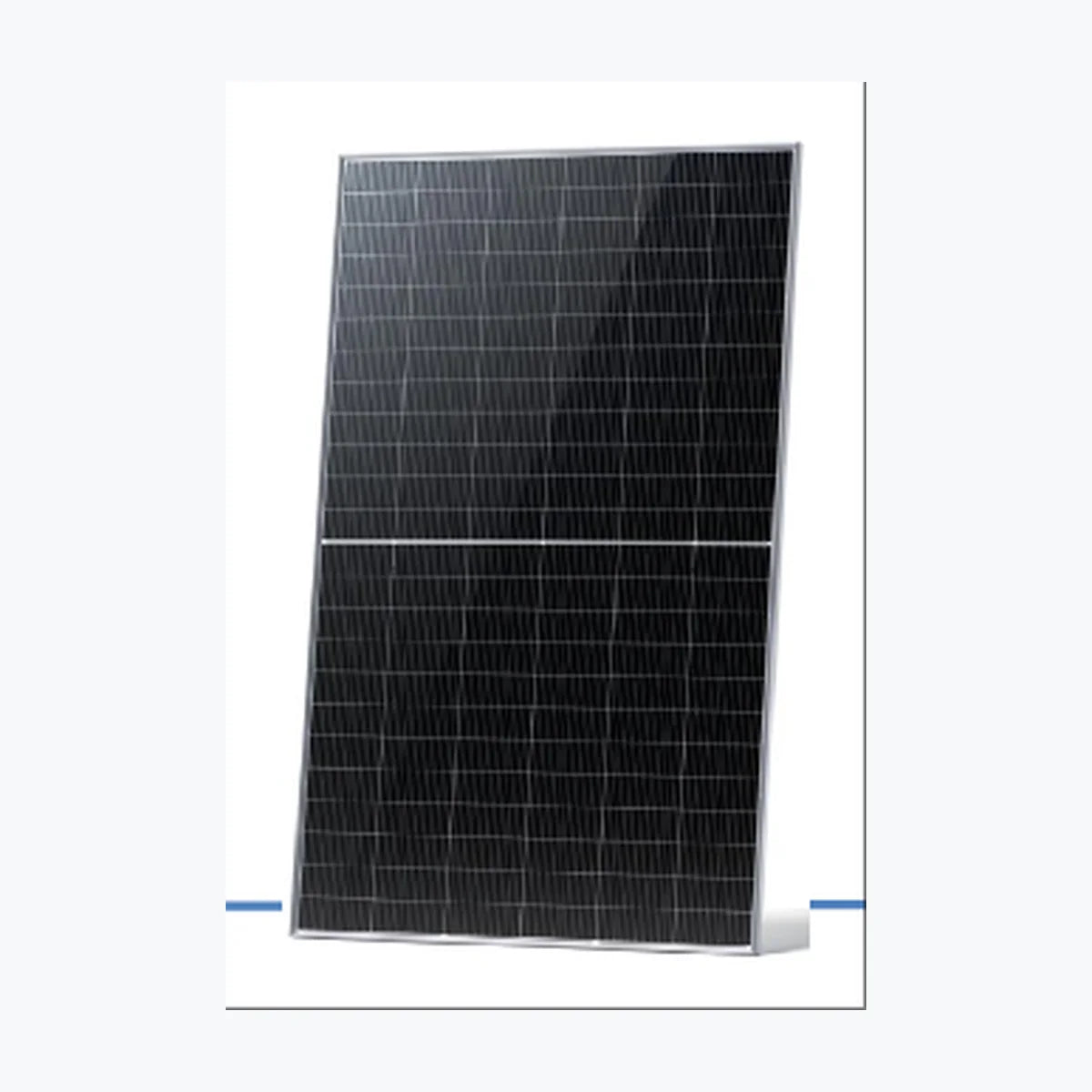

Hiwatt Solar 580
Hiwatt Solar 580
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8421
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 580 Product Warranty 12 Years Power Warranty 1 Years of 98 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 43.88 V Current at Maximum Power (Impp) 13.22 A Open Circuit Voltage (Voc) 52.5 V Short Circuit Current (Isc) 13.95 A Panel Efficiency 22.45 % Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 580 ~ 600 Wp
Panel Efficiency: 22.45 ~ 23.23 %
Weight: 32 kg
Seller: Hiwatt Solar Limited
Country: China -
