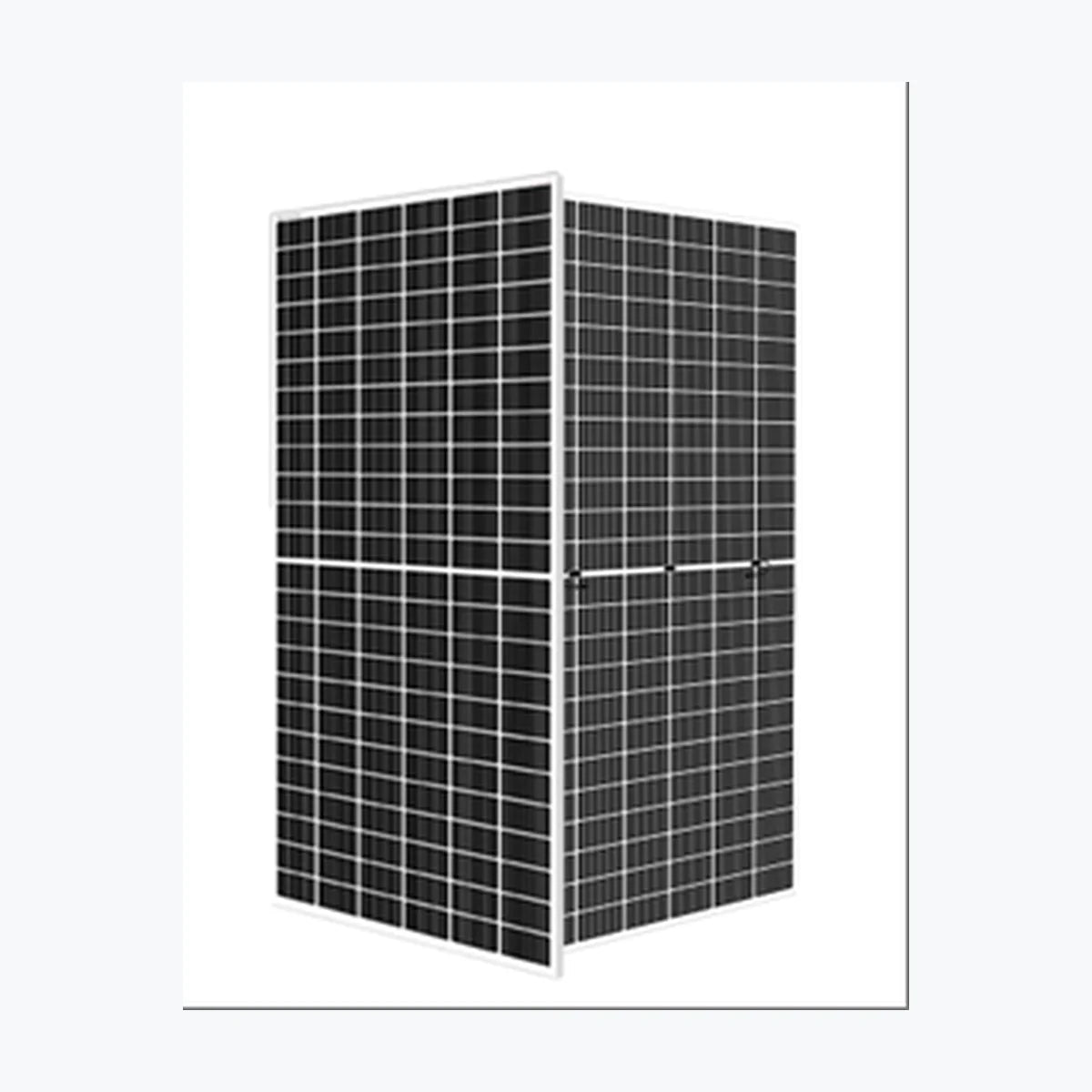

Hiwatt Solar 625
Hiwatt Solar 625
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8430
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 625 Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 625 Wp Voltage at Maximum Power (Vmpp) 45.04 V Current at Maximum Power (Impp) 13.88 A Open Circuit Voltage (Voc) 52.87 V Short Circuit Current (Isc) 14.84 A Panel Efficiency 23.13 % Maximum Power (Pmax) 473 Wp Voltage at Maximum Power (Vmpp) 42.5 V Current at Maximum Power (Impp) 11.11 A Open Circuit Voltage (Voc) 50 V Short Circuit Current (Isc) 11.95 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.8 kg Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 610 ~ 630 Wp
Panel Efficiency: 22.58 ~ 23.32 %
Weight: 32.8 kg
Seller: Hiwatt Solar Limited
Country: China -
