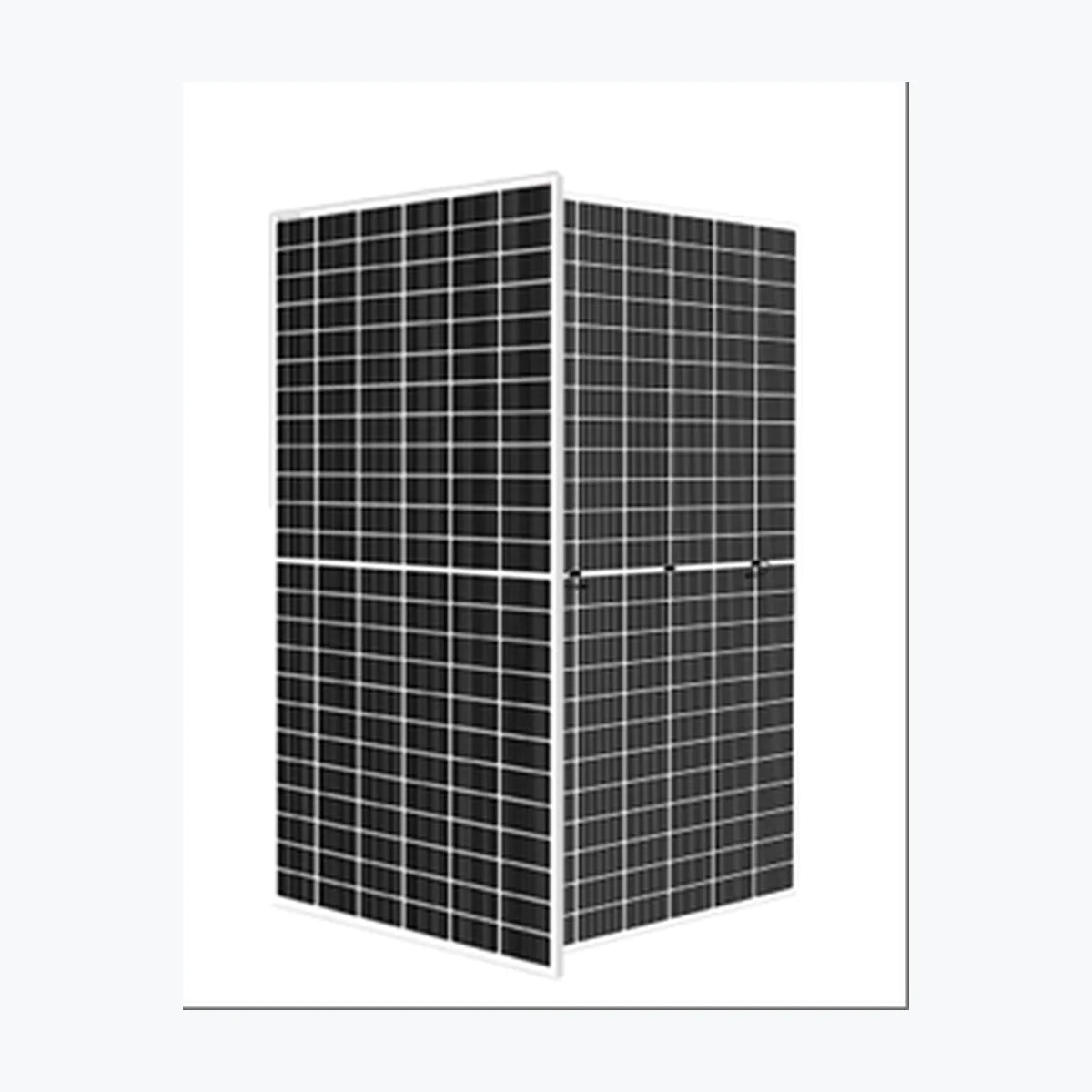

Hiwatt Solar 630
Hiwatt Solar 630
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8431
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 630 Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 630 Wp Voltage at Maximum Power (Vmpp) 45.19 V Current at Maximum Power (Impp) 13.95 A Open Circuit Voltage (Voc) 53.07 V Short Circuit Current (Isc) 14.91 A Panel Efficiency 23.32 % Maximum Power (Pmax) 476 Wp Voltage at Maximum Power (Vmpp) 42.7 V Current at Maximum Power (Impp) 11.15 A Open Circuit Voltage (Voc) 50.2 V Short Circuit Current (Isc) 12.02 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.8 kg Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 610 ~ 630 Wp
Panel Efficiency: 22.58 ~ 23.32 %
Weight: 32.8 kg
Seller: Hiwatt Solar Limited
Country: China -
