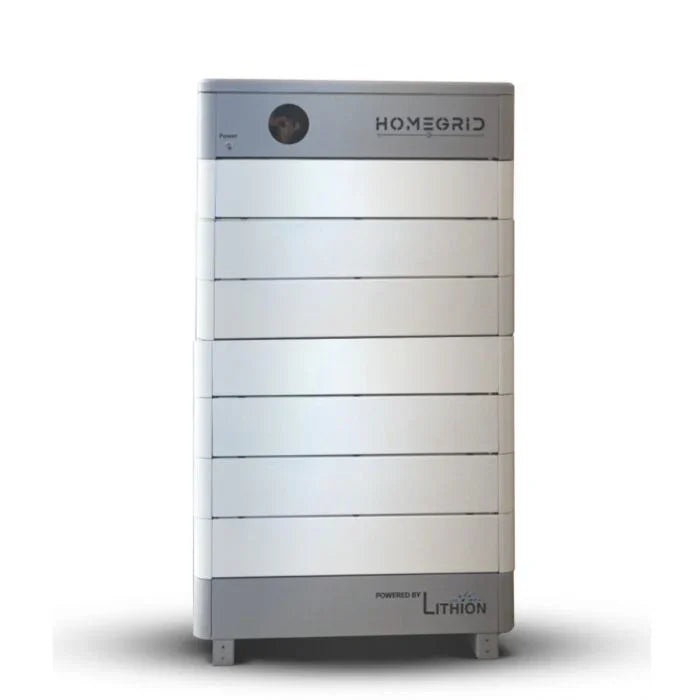

HOMEGRID BMS AND BASE - HG-MC100-200M2-P

The HomeGrid HG-MC100-200M2-P is an advanced battery management system designed for seamless integration with lithium iron phosphate batteries. This unit serves to enhance system performance, ensuring superior operation and safety through its sophisticated features. With a user-friendly interface and robust functionality, this product stands out for users looking for reliable energy solutions.

Product Features

User-Friendly Display Screen

The HG-MC100-200M2-P features an intuitive display screen that provides real-time information about the system's state of charge, health, and active power status. This visual representation allows users to monitor the performance with ease and quickly react to any alerts.

Multiple Communication Ports

This battery management system incorporates various communication ports, including RS485, CAN, and RS232 connections. These enable easy integration with different devices, enhancing the overall usability and flexibility of the system to suit diverse needs.

Advanced Safety Functions

Safety is paramount with the HG-MC100-200M2-P. It includes extensive protective mechanisms that guard against overcharging, over-discharging, and excessive current situations. These features work together to ensure the longevity and reliability of your energy systems.

Extensive Capacity Options

Designed to accommodate battery modules with nominal capacities ranging from 200Ah to 800Ah, this system offers versatile options for users. Whether you're gearing up for a small-scale setup or a larger energy project, this flexibility meets various power requirements seamlessly.

Robust Cycle Life and Calendar Life

The lifespan of your investment is assured with the HG-MC100-200M2-P, which boasts a cycle life of approximately 4000 cycles at 80% depth of discharge, while also meeting a designed calendar life of over 10 years. This makes it a cost-effective solution for long-term energy needs.

How It Works

This battery management system operates by communicating with connected lithium iron phosphate battery modules to optimize performance and ensure safety. The main controller oversees various integrations, delivering power management while facilitating efficient charging and discharging.

Main Controller Module

The core of the HG-MC100-200M2-P, the main controller module, manages all operations, from monitoring battery health to initiating charges. It guarantees that the system operates at peak performance through continuous assessments of battery metrics.

Communication Interfaces

By utilizing multiple communication ports, including the Inverter CAN and RS485 interfaces, this system is designed for compatibility with a range of inverters and energy management systems, enhancing its operational scope.

Protection Mechanisms

The integration of advanced safety features, such as temperature control and overcurrent protection, ensures the secure operation of the batteries. This comprehensive protection prevents possible damage and enhances user confidence in their energy systems.

Specifications
