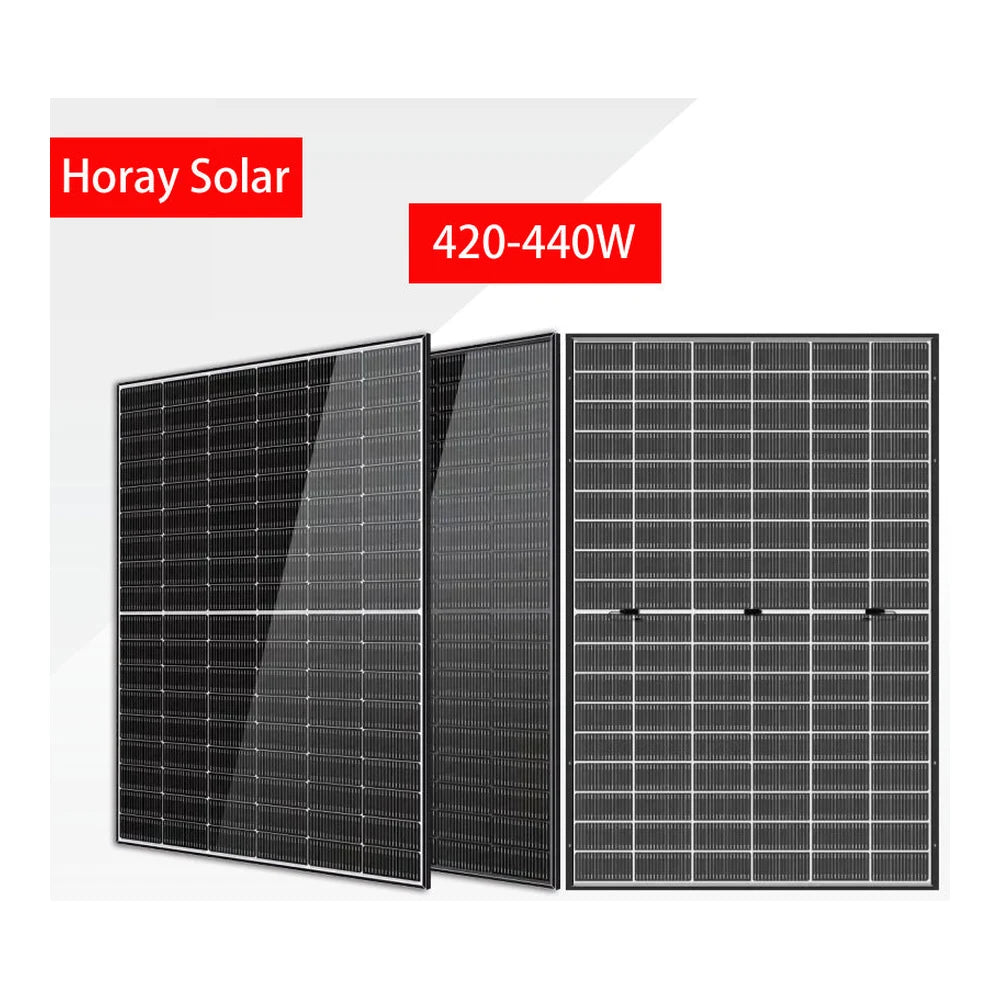

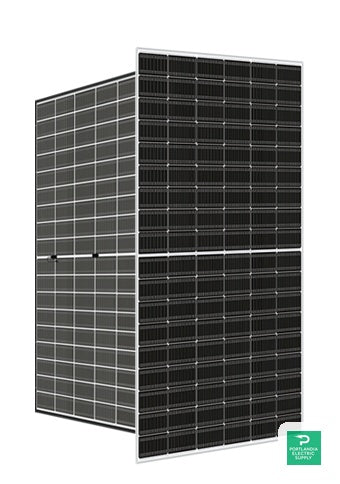

Horay Solar HS420TC-MHO-D
Horay Solar HS420TC-MHO-D
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8515
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. HS420TC-MHO-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 420 Wp Voltage at Maximum Power (Vmpp) 32.44 V Current at Maximum Power (Impp) 12.95 A Open Circuit Voltage (Voc) 38.73 V Short Circuit Current (Isc) 14.01 A Panel Efficiency 21.5 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 30.11 V Current at Maximum Power (Impp) 10.62 A Open Circuit Voltage (Voc) 36.61 V Short Circuit Current (Isc) 11.31 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 24 kg Cell Number 108 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1100 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, N-type
Power Range: 420 ~ 440 Wp
Panel Efficiency: 21.5 ~ 22.5 %
Weight: 24 kg
Seller: Horay Solar Co., Ltd
Country: China -
