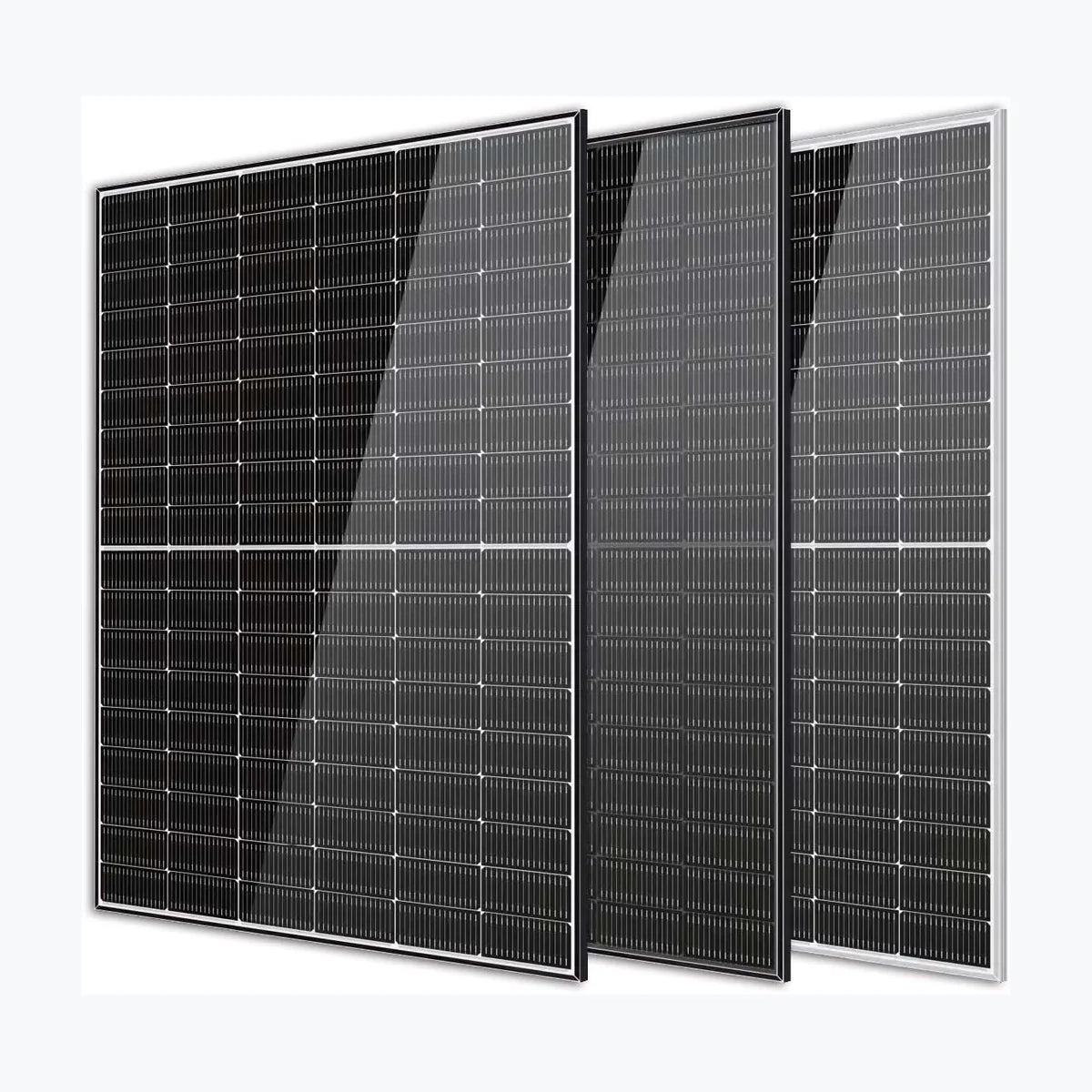

    Horay Solar HS465TC-MHD-D

    Horay Solar HS465TC-MHD-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8545
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,745
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS465TC-MHD-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 465 Wp Voltage at Maximum Power (Vmpp) 32.85 V Current at Maximum Power (Impp) 14.16 A Open Circuit Voltage (Voc) 38.73 V Short Circuit Current (Isc) 15.08 A Panel Efficiency 22 % Maximum Power (Pmax) 354 Wp Current at Maximum Power (Impp) 10.79 A Short Circuit Current (Isc) 11.49 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1862x1134x30 mm Weight 26 kg Cell Number 108 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download

      Technology: Bifacial, N-type
      Power Range: 465 ~ 485 Wp
      Panel Efficiency: 22 ~ 23 %
      Weight: 26 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
