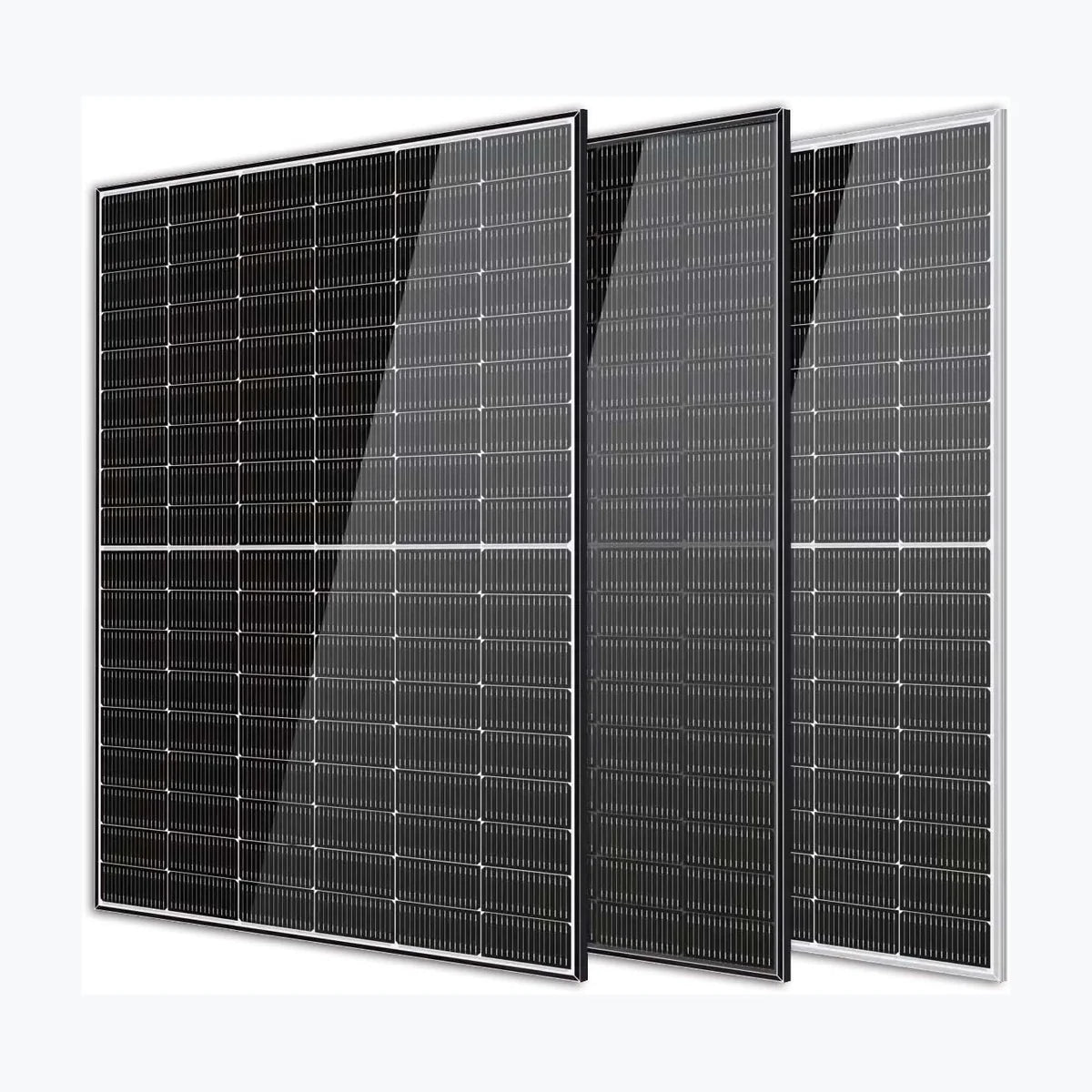

    Horay Solar HS470TC-MHB-D

    Horay Solar HS470TC-MHB-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8547
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,651
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS470TC-MHB-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 470 Wp Voltage at Maximum Power (Vmpp) 33.35 V Current at Maximum Power (Impp) 14.1 A Open Circuit Voltage (Voc) 39.31 V Short Circuit Current (Isc) 15.01 A Panel Efficiency 23 % Maximum Power (Pmax) 394 Wp Current at Maximum Power (Impp) 10.74 A Short Circuit Current (Isc) 11.44 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1800x1134x30 mm Weight 25 kg Cell Number 108 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download M

      Technology: Bifacial, N-type
      Power Range: 455 ~ 475 Wp
      Panel Efficiency: 22.3 ~ 23 %
      Weight: 25 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
