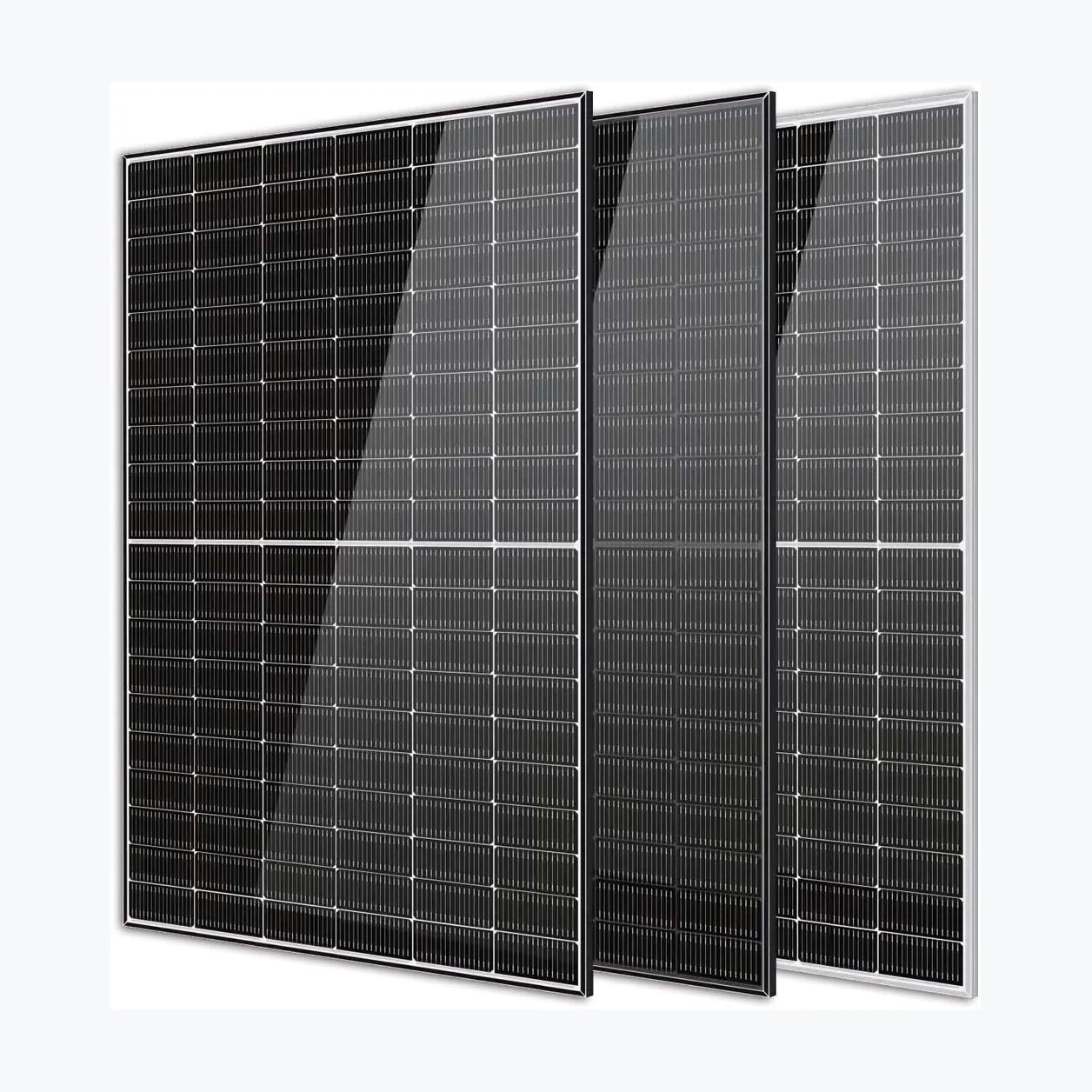

    Horay Solar HS490TC-MHO-D

    Horay Solar HS490TC-MHO-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8565
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,506
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS490TC-MHO-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 490 Wp Voltage at Maximum Power (Vmpp) 36.84 V Current at Maximum Power (Impp) 13.31 A Open Circuit Voltage (Voc) 43.66 V Short Circuit Current (Isc) 14.37 A Panel Efficiency 22.6 % Maximum Power (Pmax) 374 Wp Voltage at Maximum Power (Vmpp) 34.25 V Current at Maximum Power (Impp) 10.93 A Open Circuit Voltage (Voc) 41.44 V Short Circuit Current (Isc) 11.61 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1909x1134x30 mm Weight 25.5 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class

      Technology: Bifacial, N-type
      Power Range: 470 ~ 490 Wp
      Panel Efficiency: 21.7 ~ 22.6 %
      Weight: 25.5 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
