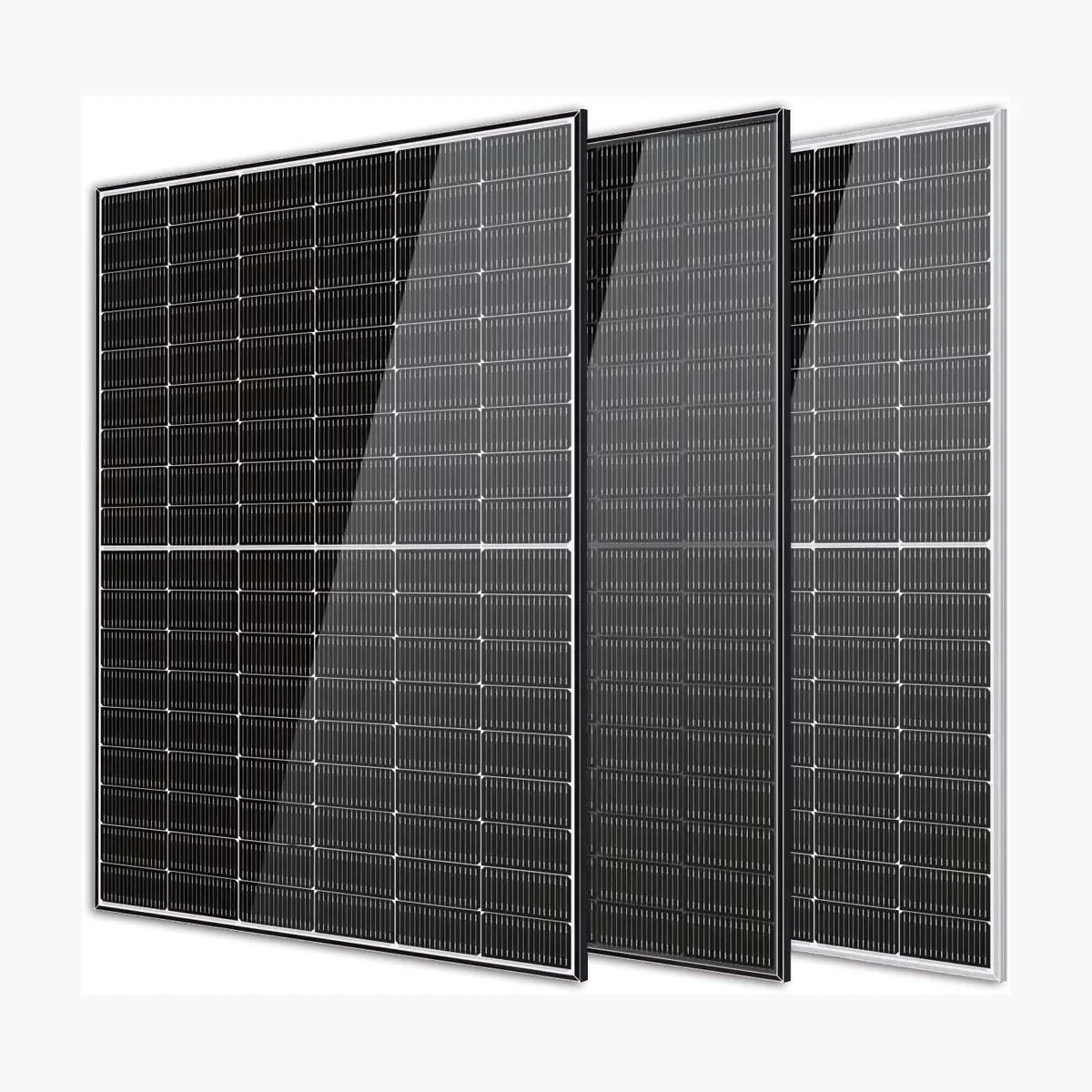

Horay Solar HS510TC-MHC-D
Horay Solar HS510TC-MHC-D
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8583
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. HS510TC-MHC-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 510 Wp Voltage at Maximum Power (Vmpp) 33.7 V Current at Maximum Power (Impp) 15.14 A Open Circuit Voltage (Voc) 40.55 V Short Circuit Current (Isc) 15.98 A Panel Efficiency 22.9 % Maximum Power (Pmax) 389 Wp Voltage at Maximum Power (Vmpp) 31.38 V Current at Maximum Power (Impp) 12.38 A Open Circuit Voltage (Voc) 38.51 V Short Circuit Current (Isc) 12.91 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1960x1134x30 mm Weight 27 kg Cell Number 108 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP
Technology: Bifacial, N-type
Power Range: 495 ~ 515 Wp
Panel Efficiency: 22.2 ~ 23.1 %
Weight: 27 kg
Seller Name: Horay Solar Co., Ltd
Country: China -
