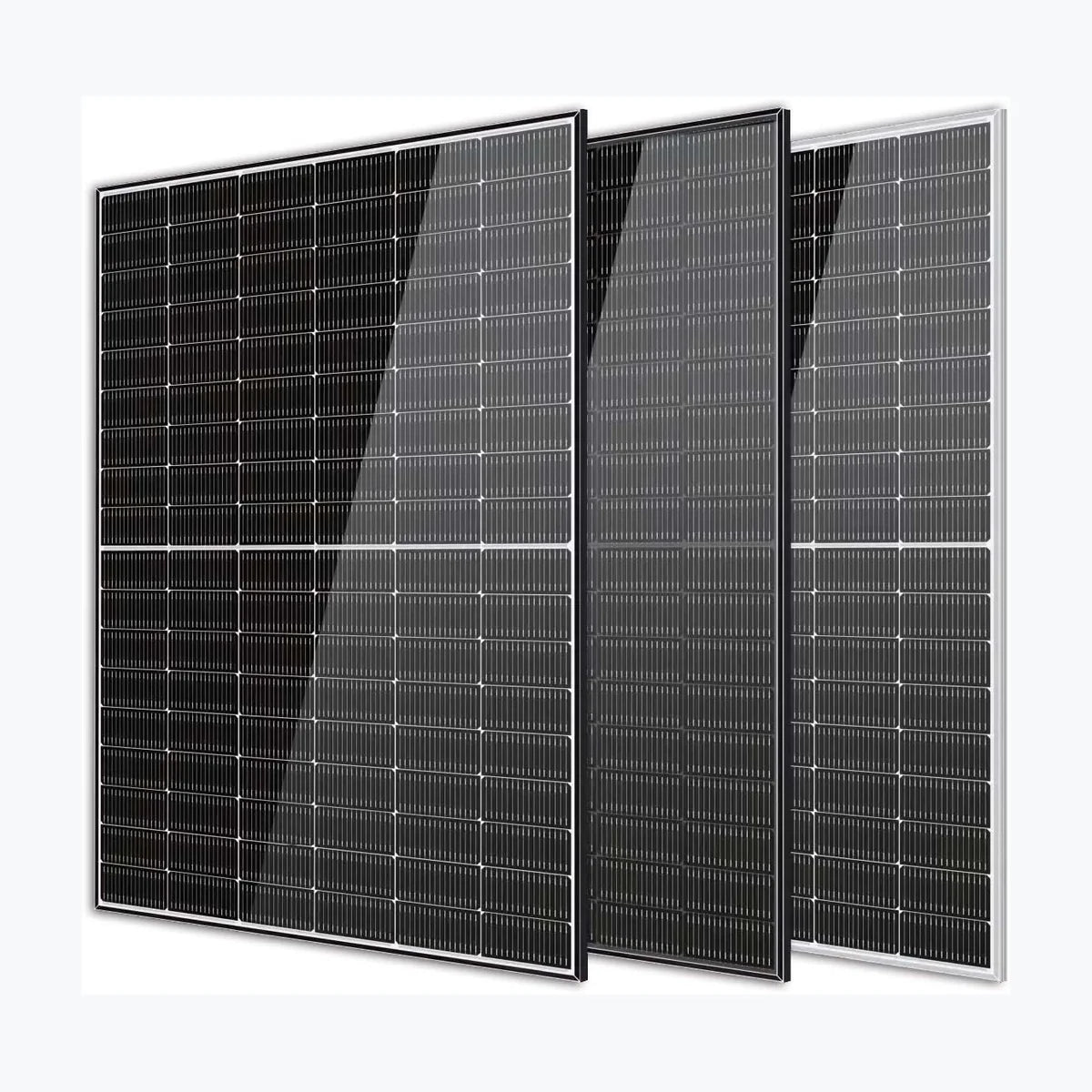

    Horay Solar HS515TC-MHC-D

    Horay Solar HS515TC-MHC-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8587
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,933
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS515TC-MHC-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 515 Wp Voltage at Maximum Power (Vmpp) 33.86 V Current at Maximum Power (Impp) 15.21 A Open Circuit Voltage (Voc) 40.74 V Short Circuit Current (Isc) 16.06 A Panel Efficiency 23.1 % Maximum Power (Pmax) 392 Wp Voltage at Maximum Power (Vmpp) 31.53 V Current at Maximum Power (Impp) 12.45 A Open Circuit Voltage (Voc) 38.7 V Short Circuit Current (Isc) 12.97 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1960x1134x30 mm Weight 27 kg Cell Number 108 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP

      Technology: Bifacial, N-type
      Power Range: 495 ~ 515 Wp
      Panel Efficiency: 22.2 ~ 23.1 %
      Weight: 27 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
