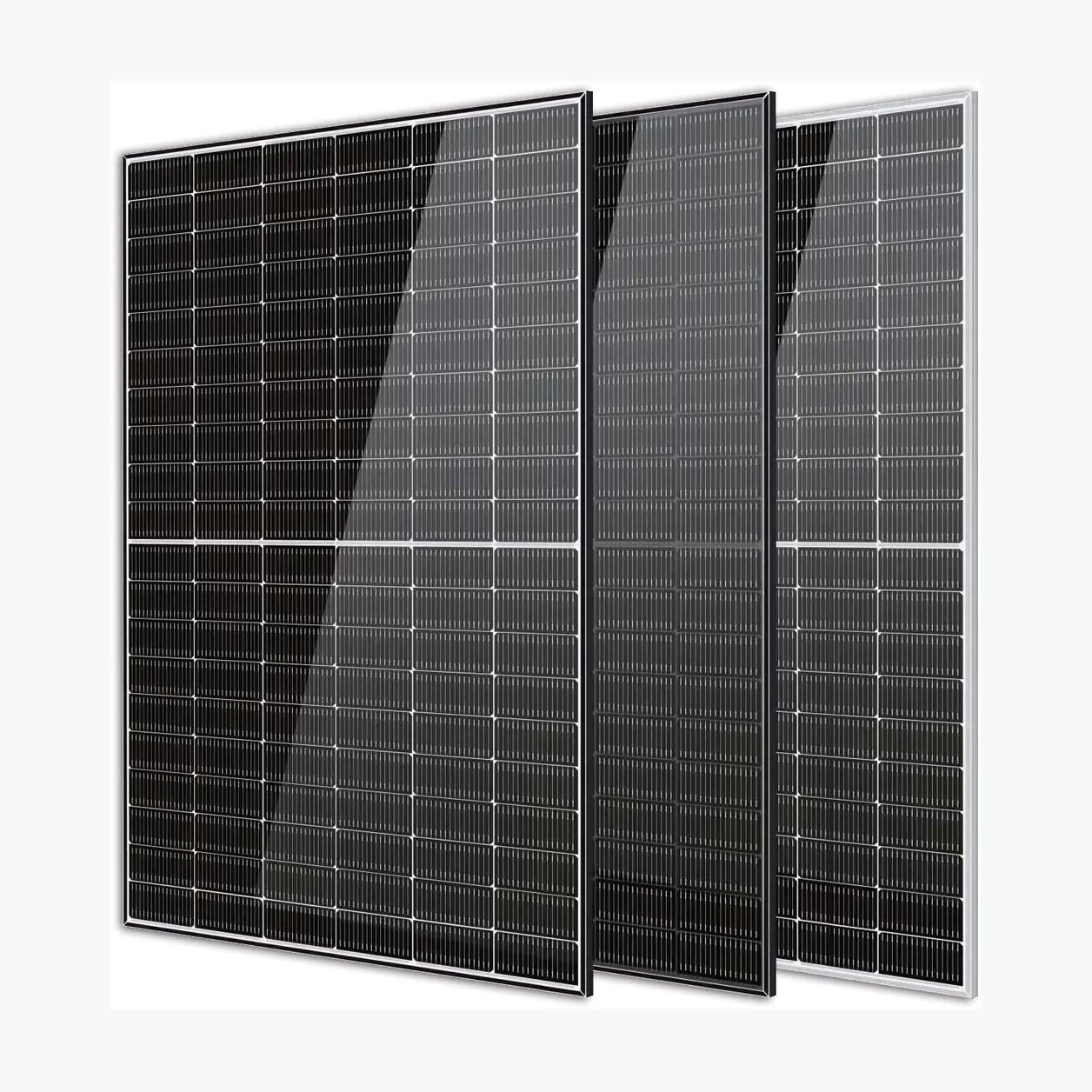

    Horay Solar HS520TC-MHB

    Horay Solar HS520TC-MHB

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8589
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,390
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS520TC-MHB Product Warranty 12 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 520 Wp Voltage at Maximum Power (Vmpp) 37.33 V Current at Maximum Power (Impp) 13.93 A Open Circuit Voltage (Voc) 44.01 V Short Circuit Current (Isc) 14.83 A Panel Efficiency 23 % Maximum Power (Pmax) 436 Wp Current at Maximum Power (Impp) 10.61 A Short Circuit Current (Isc) 11.3 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1994x1134x30 mm Weight 23.5 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download

      Technology: N-type
      Power Range: 500 ~ 520 Wp
      Panel Efficiency: 22.1 ~ 23 %
      Weight: 23.5 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
