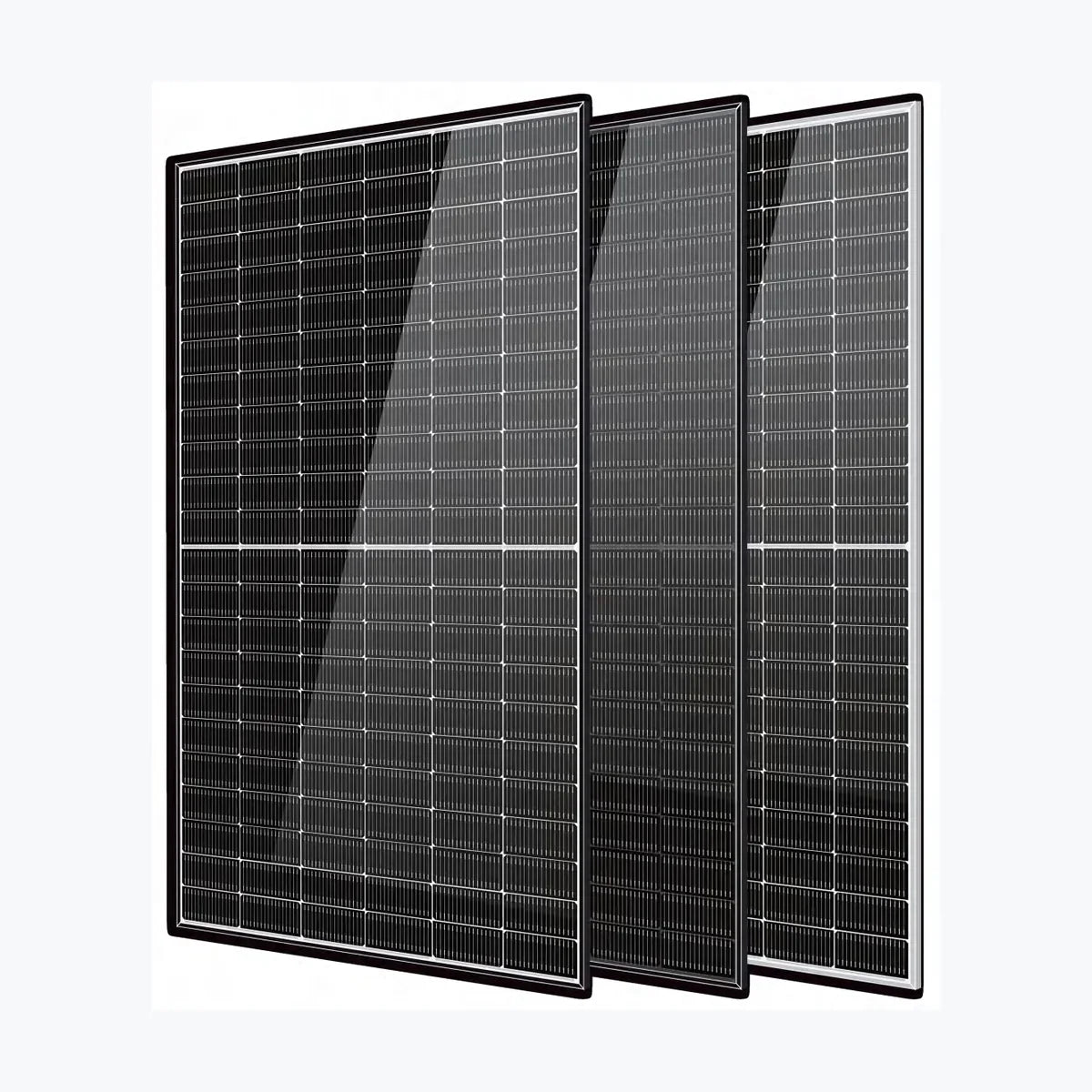

    Horay Solar HS525TC-MHO-D

    Horay Solar HS525TC-MHO-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8598
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,523
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS525TC-MHO-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 525 Wp Voltage at Maximum Power (Vmpp) 40.04 V Current at Maximum Power (Impp) 13.11 A Open Circuit Voltage (Voc) 47.57 V Short Circuit Current (Isc) 14.16 A Panel Efficiency 22.1 % Maximum Power (Pmax) 400 Wp Voltage at Maximum Power (Vmpp) 37.11 V Current at Maximum Power (Impp) 10.76 A Open Circuit Voltage (Voc) 45.02 V Short Circuit Current (Isc) 11.44 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x30 mm Weight 29 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class I

      Technology: Bifacial, N-type
      Power Range: 520 ~ 540 Wp
      Panel Efficiency: 21.9 ~ 22.7 %
      Weight: 29 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
