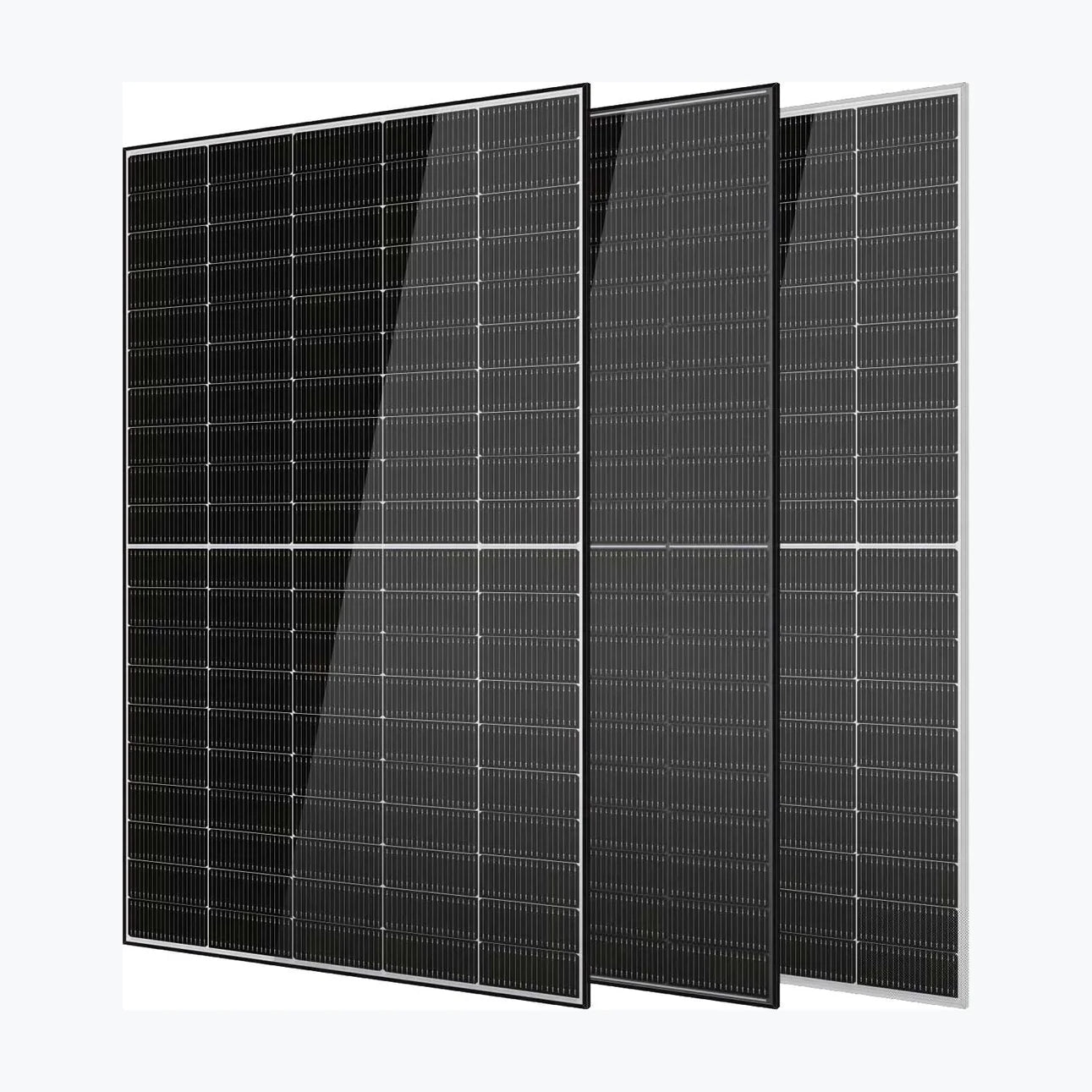

    Horay Solar HS530TC-MHG-D

    Horay Solar HS530TC-MHG-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8600
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,907
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS530TC-MHG-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 530 Wp Voltage at Maximum Power (Vmpp) 32.05 V Current at Maximum Power (Impp) 16.54 A Open Circuit Voltage (Voc) 37 V Short Circuit Current (Isc) 17.86 A Panel Efficiency 22.2 % Maximum Power (Pmax) 405 Wp Voltage at Maximum Power (Vmpp) 29.93 V Current at Maximum Power (Impp) 13.49 A Open Circuit Voltage (Voc) 34.97 V Short Circuit Current (Isc) 14.3 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1096x35 mm Weight 28 kg Cell Number 100 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68

      Technology: Bifacial, N-type
      Power Range: 510 ~ 530 Wp
      Panel Efficiency: 21.4 ~ 22.2 %
      Weight: 28 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
