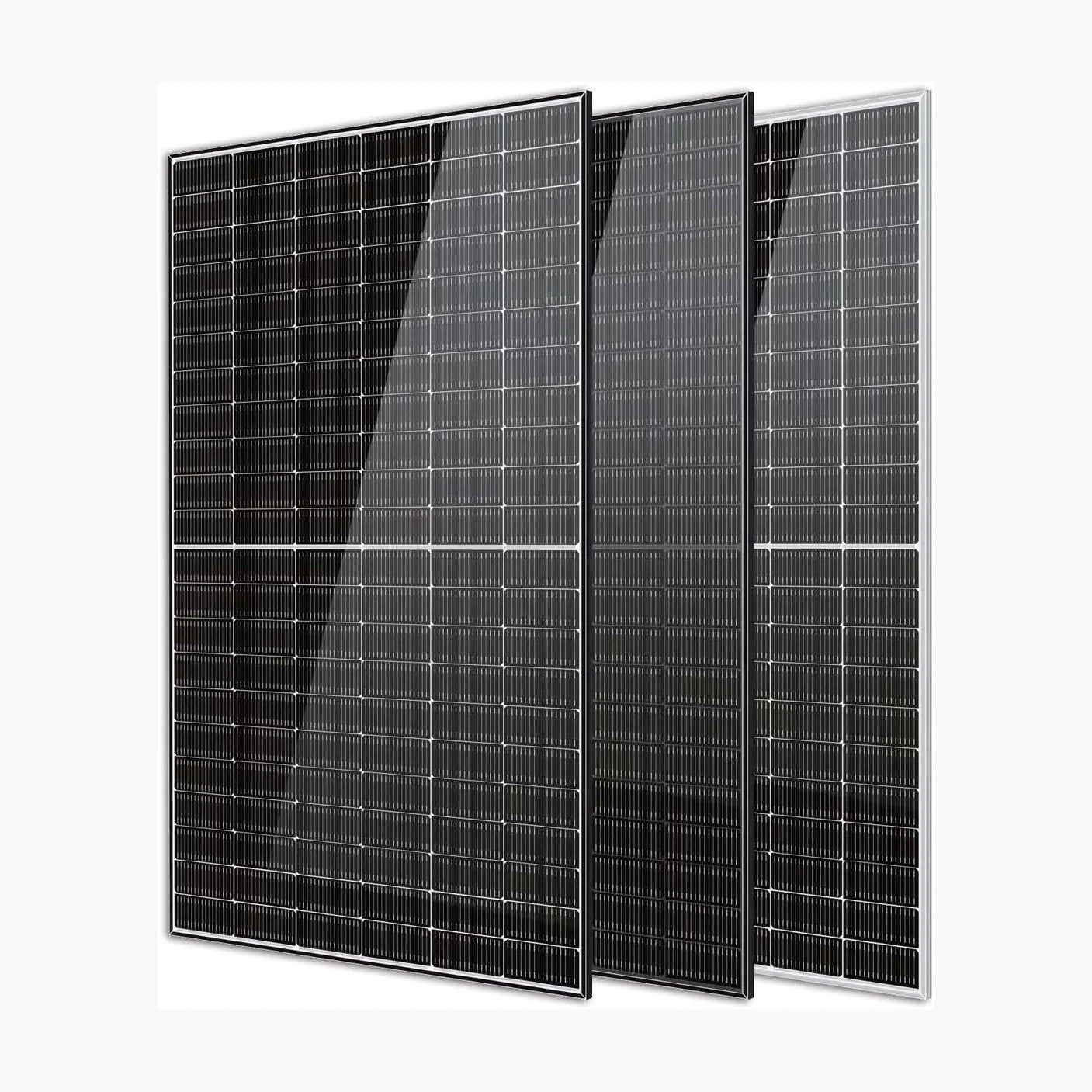

    Horay Solar HS540TC-MHA

    Horay Solar HS540TC-MHA

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8606
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,277
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS540TC-MHA Product Warranty 12 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 39.79 V Current at Maximum Power (Impp) 13.57 A Open Circuit Voltage (Voc) 47.68 V Short Circuit Current (Isc) 14.34 A Panel Efficiency 22.3 % Maximum Power (Pmax) 411 Wp Current at Maximum Power (Impp) 10.34 A Short Circuit Current (Isc) 10.92 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2140x1134x30 mm Weight 24.5 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Downl

      Technology: N-type
      Power Range: 540 ~ 560 Wp
      Panel Efficiency: 22.3 ~ 23.1 %
      Weight: 24.5 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
