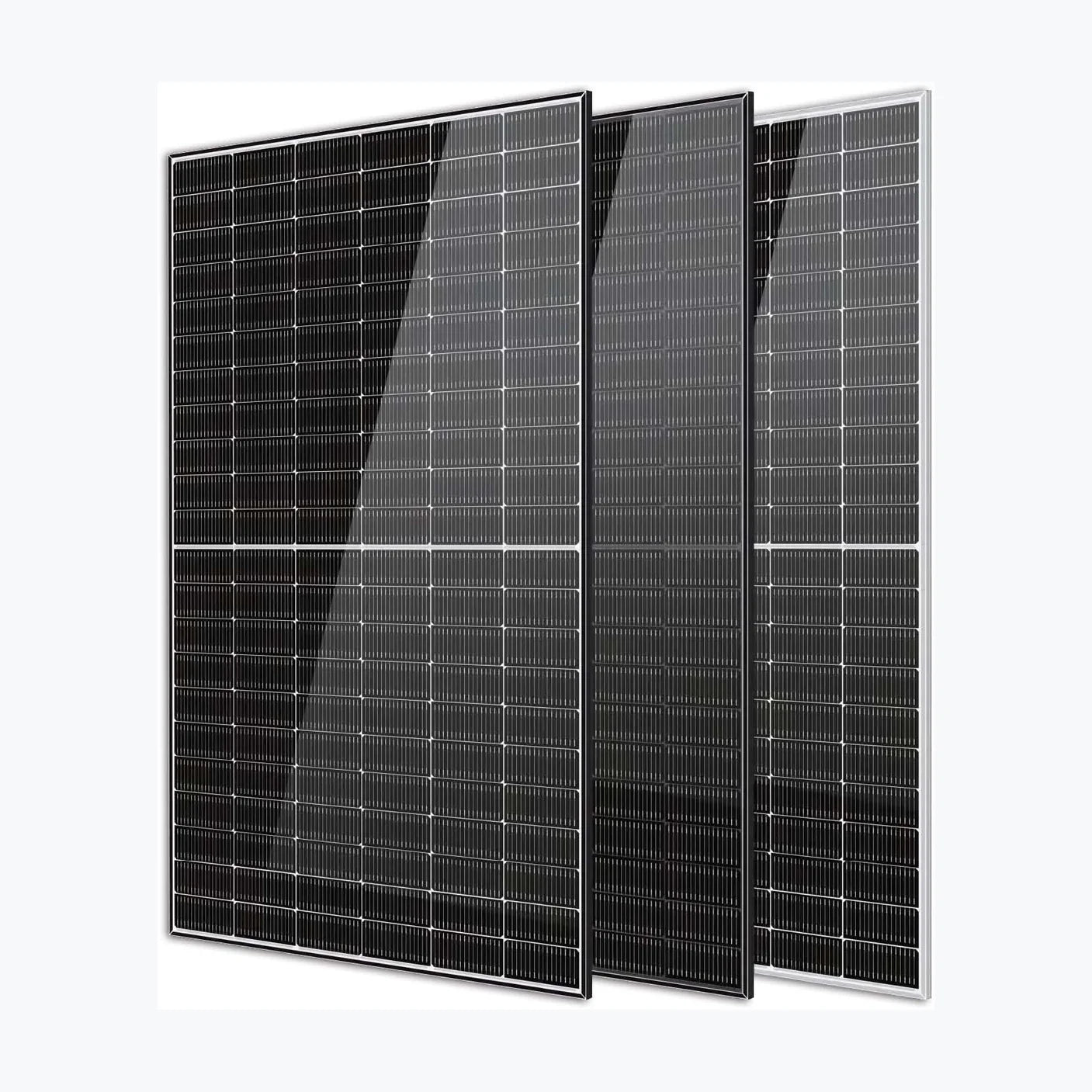

    Horay Solar HS555TC-MHB-D

    Horay Solar HS555TC-MHB-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8618
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,706
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS555TC-MHB-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 555 Wp Voltage at Maximum Power (Vmpp) 40.52 V Current at Maximum Power (Impp) 13.7 A Open Circuit Voltage (Voc) 47.76 V Short Circuit Current (Isc) 14.59 A Panel Efficiency 22.4 % Maximum Power (Pmax) 465 Wp Current at Maximum Power (Impp) 10.44 A Short Circuit Current (Isc) 11.12 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2188x1134x30 mm Weight 30.5 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Downlo

      Technology: Bifacial, N-type
      Power Range: 550 ~ 570 Wp
      Panel Efficiency: 22.2 ~ 23 %
      Weight: 30.5 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
