In Stock

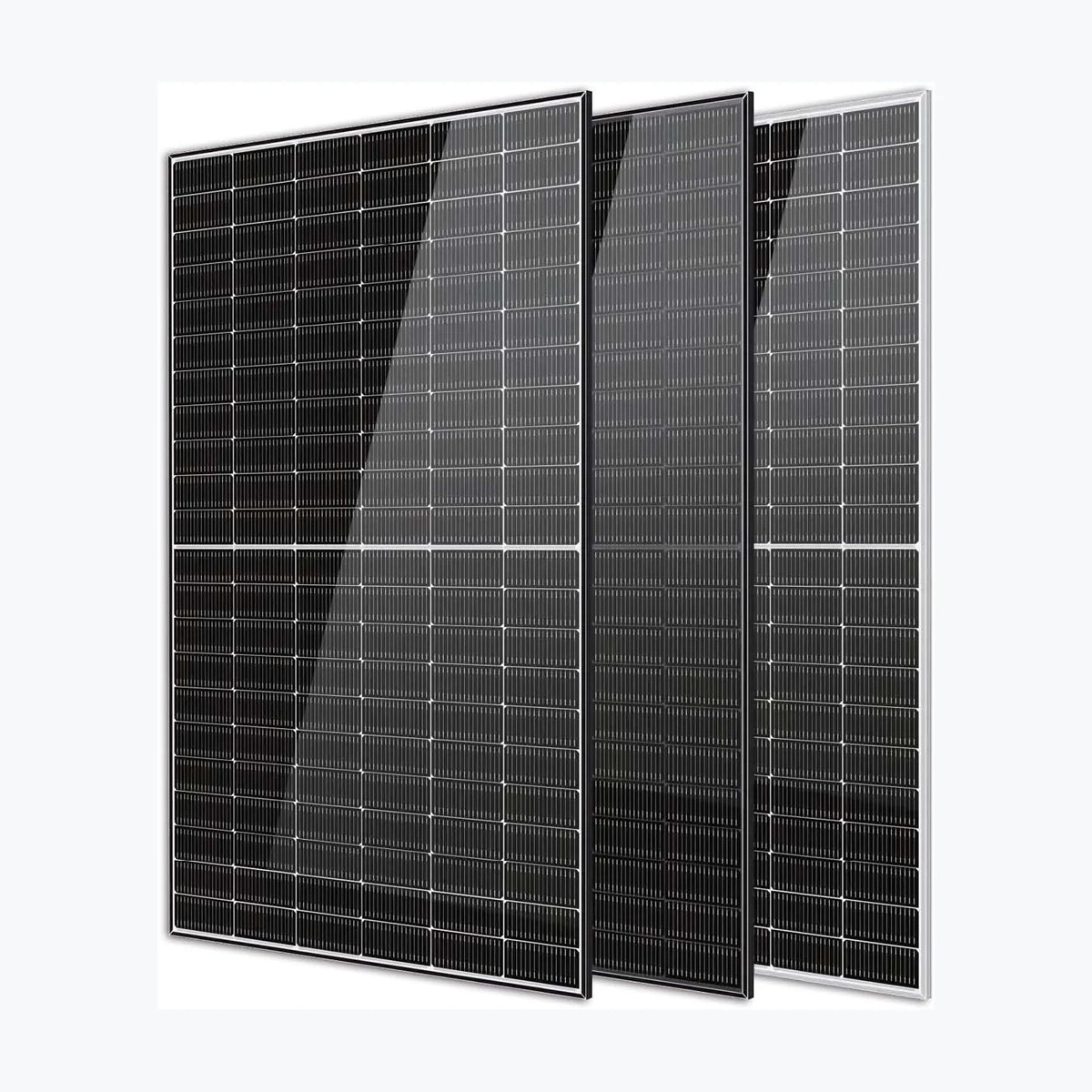

Horay Solar HS560TC-MHA
Horay Solar HS560TC-MHA
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8621
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. HS560TC-MHA Product Warranty 12 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 40.48 V Current at Maximum Power (Impp) 13.83 A Open Circuit Voltage (Voc) 48.51 V Short Circuit Current (Isc) 14.61 A Panel Efficiency 23.1 % Maximum Power (Pmax) 427 Wp Current at Maximum Power (Impp) 10.54 A Short Circuit Current (Isc) 11.14 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2140x1134x30 mm Weight 24.5 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Downl
Technology: N-type
Power Range: 540 ~ 560 Wp
Panel Efficiency: 22.3 ~ 23.1 %
Weight: 24.5 kg
Seller Name: Horay Solar Co., Ltd
Country: China -
