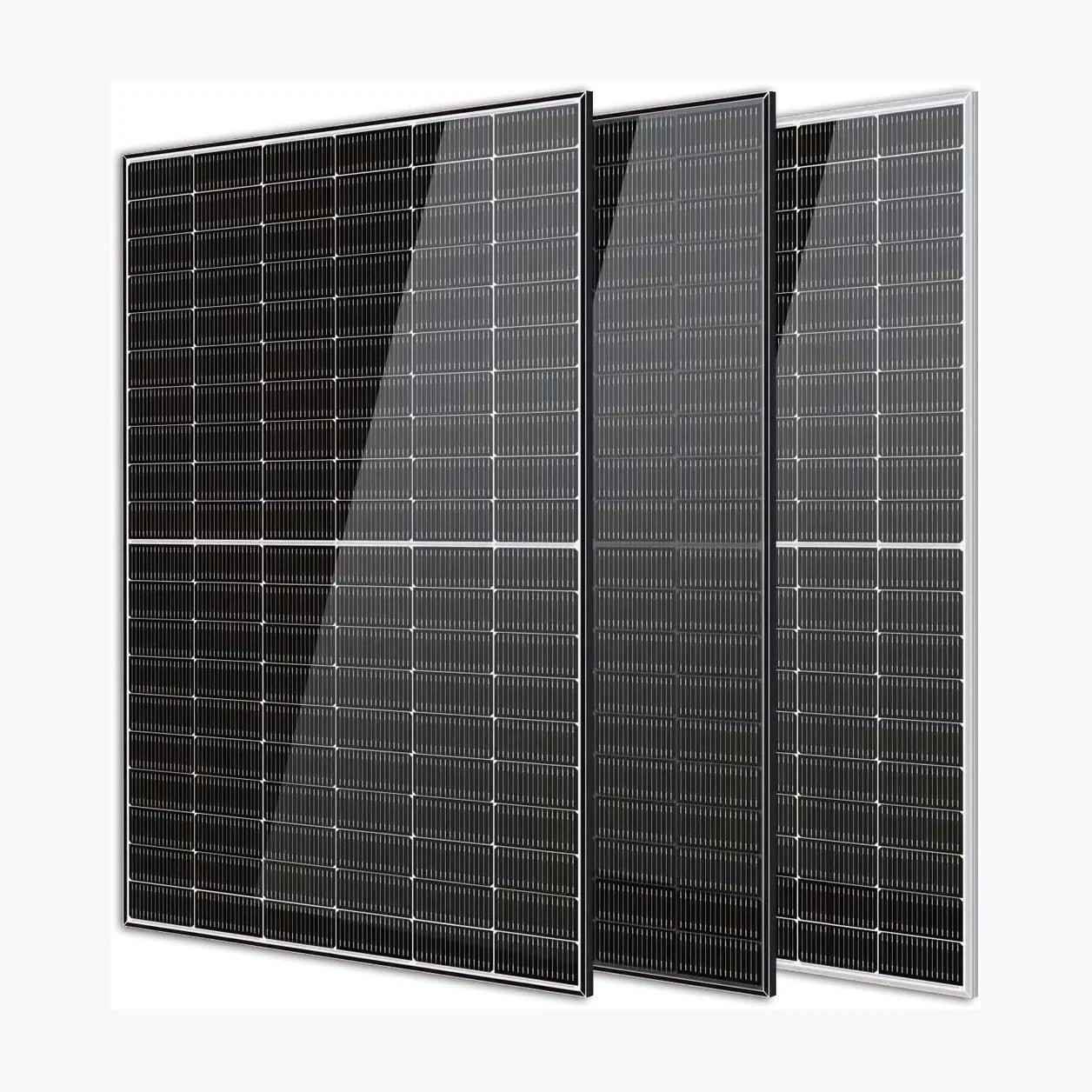

    Horay Solar HS570TC-MHC-D

    Horay Solar HS570TC-MHC-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8632
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,943
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS570TC-MHC-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 570 Wp Voltage at Maximum Power (Vmpp) 37.44 V Current at Maximum Power (Impp) 15.22 A Open Circuit Voltage (Voc) 45.05 V Short Circuit Current (Isc) 16.08 A Panel Efficiency 23.1 % Maximum Power (Pmax) 434 Wp Voltage at Maximum Power (Vmpp) 34.87 V Current at Maximum Power (Impp) 12.46 A Open Circuit Voltage (Voc) 42.79 V Short Circuit Current (Isc) 12.98 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2178x1134x30 mm Weight 30.5 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class

      Technology: Bifacial, N-type
      Power Range: 550 ~ 570 Wp
      Panel Efficiency: 22.3 ~ 23.1 %
      Weight: 30.5 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
