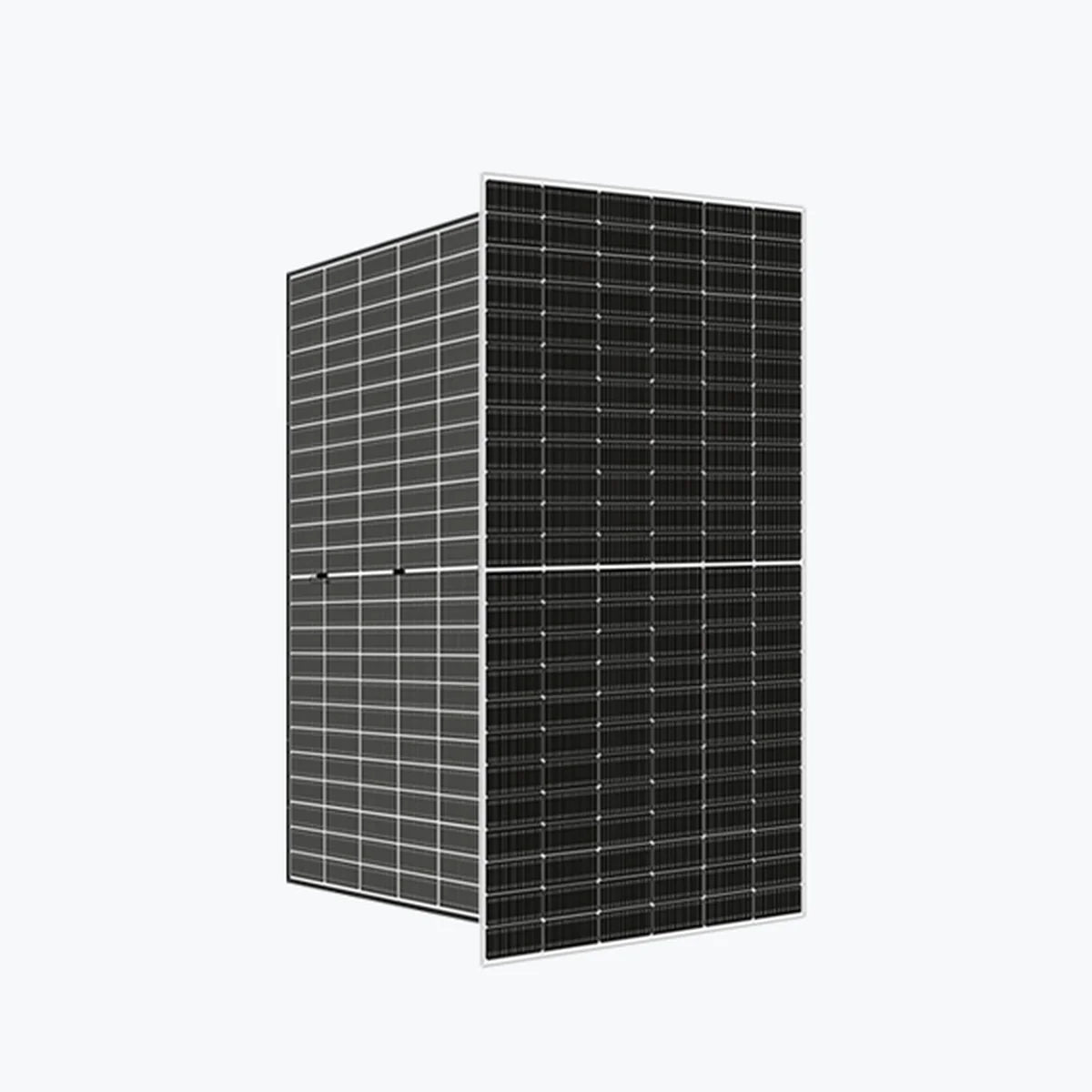

Horay Solar HS580TC-MHO-D
PayPal Pay in 4 interest-free payments of $50.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-8645
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. HS580TC-MHO-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 43.22 V Current at Maximum Power (Impp) 13.42 A Open Circuit Voltage (Voc) 51.41 V Short Circuit Current (Isc) 14.22 A Panel Efficiency 22.5 % Maximum Power (Pmax) 439 Wp Voltage at Maximum Power (Vmpp) 40.42 V Current at Maximum Power (Impp) 10.87 A Open Circuit Voltage (Voc) 48.62 V Short Circuit Current (Isc) 11.49 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x30 mm Weight 31.5 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, N-type
Power Range: 570 ~ 590 Wp
Panel Efficiency: 22.1 ~ 22.8 %
Weight: 31.5 kg
Seller: Horay Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-8645 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
