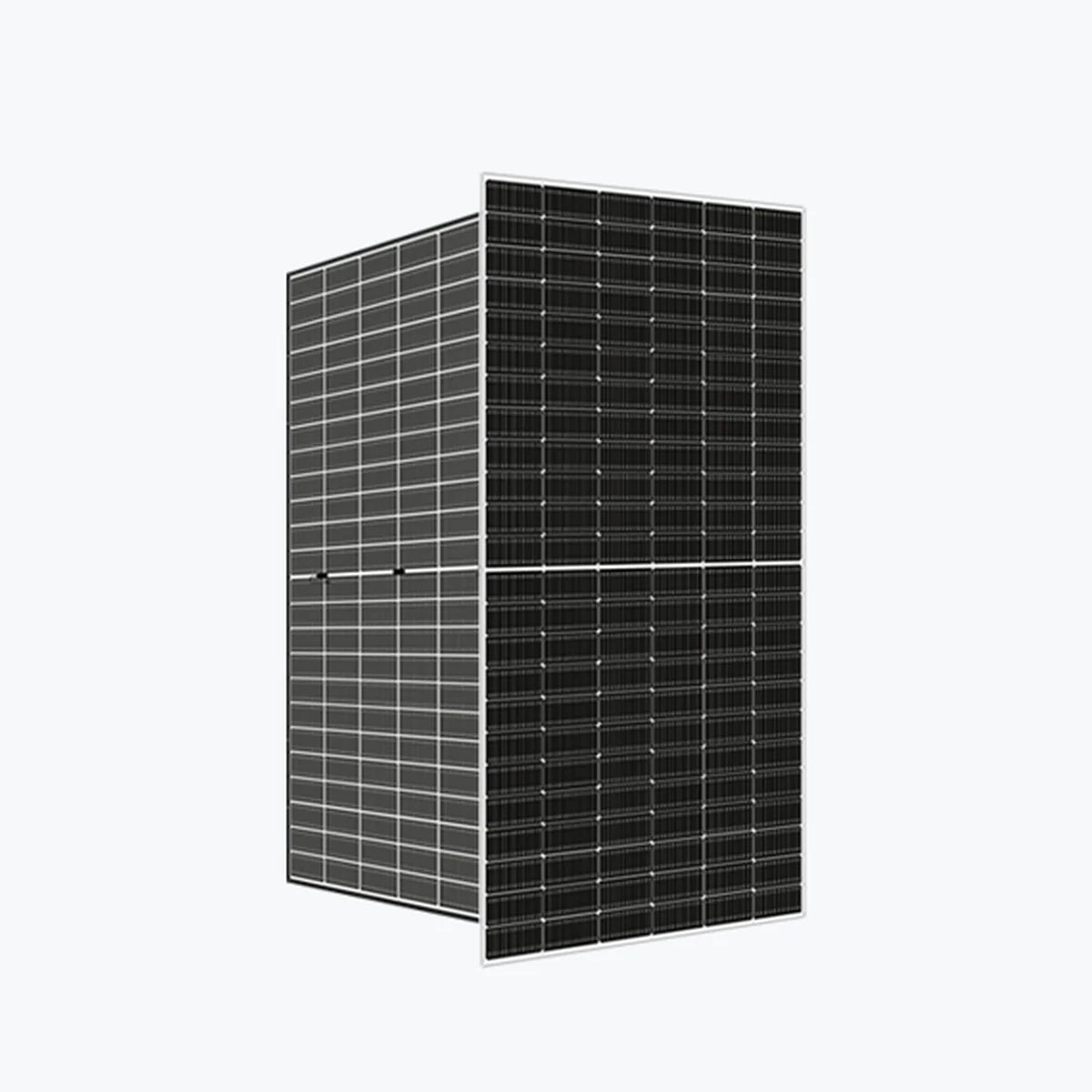

Horay Solar HS610TC-MHC-D
Horay Solar HS610TC-MHC-D
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8668
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. HS610TC-MHC-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 610 Wp Voltage at Maximum Power (Vmpp) 40.66 V Current at Maximum Power (Impp) 15 A Open Circuit Voltage (Voc) 48.92 V Short Circuit Current (Isc) 15.85 A Panel Efficiency 22.6 % Maximum Power (Pmax) 465 Wp Voltage at Maximum Power (Vmpp) 37.86 V Current at Maximum Power (Impp) 12.28 A Open Circuit Voltage (Voc) 46.47 V Short Circuit Current (Isc) 12.8 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 33.7 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, N-type
Power Range: 610 ~ 630 Wp
Panel Efficiency: 22.6 ~ 23.3 %
Weight: 33.7 kg
Seller: Horay Solar Co., Ltd
Country: China -
