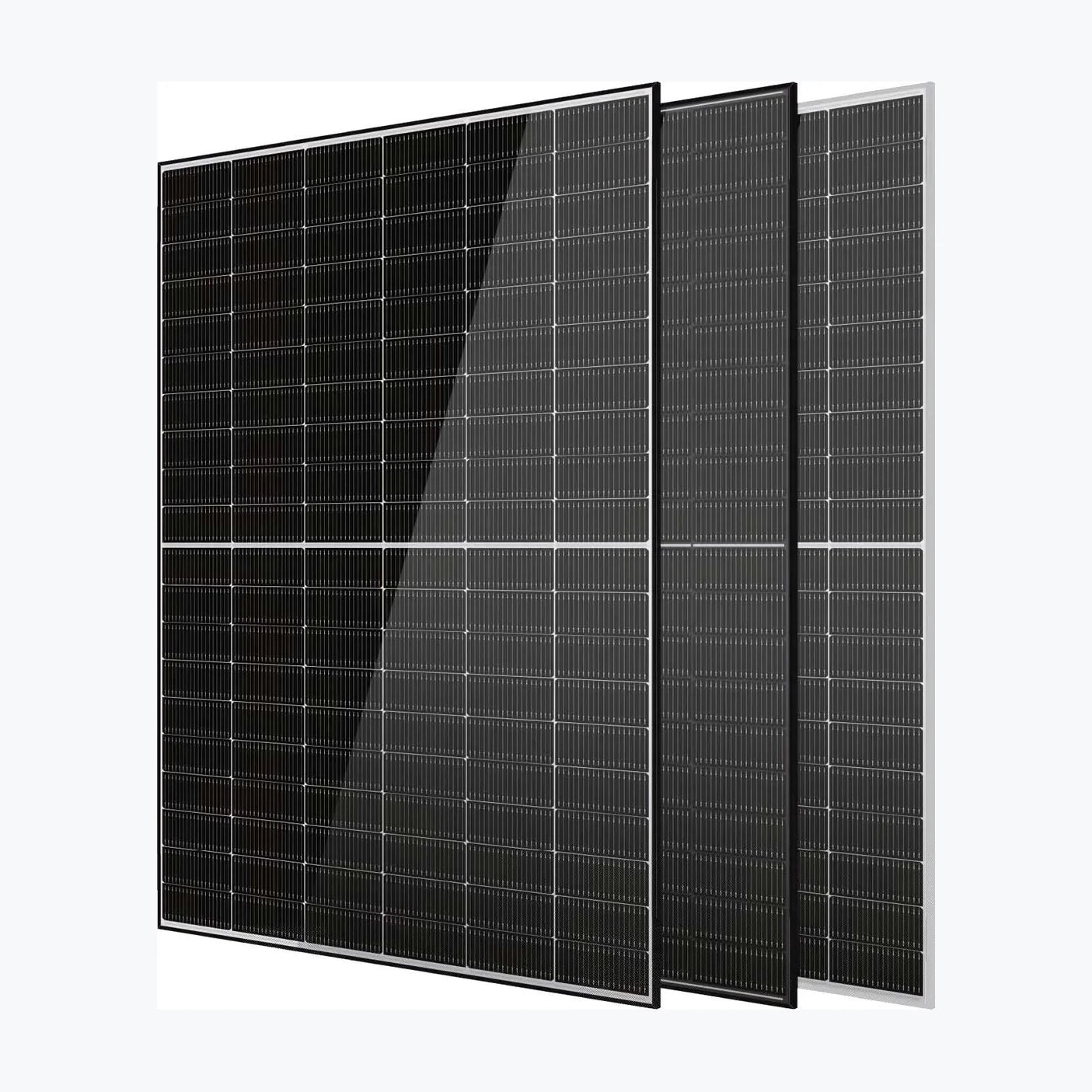

    Horay Solar HS625TC-MHG-D

    Horay Solar HS625TC-MHG-D

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-8678
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,888
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. HS625TC-MHG-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 625 Wp Voltage at Maximum Power (Vmpp) 38.22 V Current at Maximum Power (Impp) 16.35 A Open Circuit Voltage (Voc) 44.22 V Short Circuit Current (Isc) 17.66 A Panel Efficiency 22.1 % Maximum Power (Pmax) 476 Wp Voltage at Maximum Power (Vmpp) 35.7 V Current at Maximum Power (Impp) 13.34 A Open Circuit Voltage (Voc) 41.79 V Short Circuit Current (Isc) 14.14 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2174x1303x35 mm Weight 35 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP

      Technology: Bifacial, N-type
      Power Range: 615 ~ 635 Wp
      Panel Efficiency: 21.7 ~ 22.4 %
      Weight: 35 kg
      Seller Name: Horay Solar Co., Ltd
      Country: China
