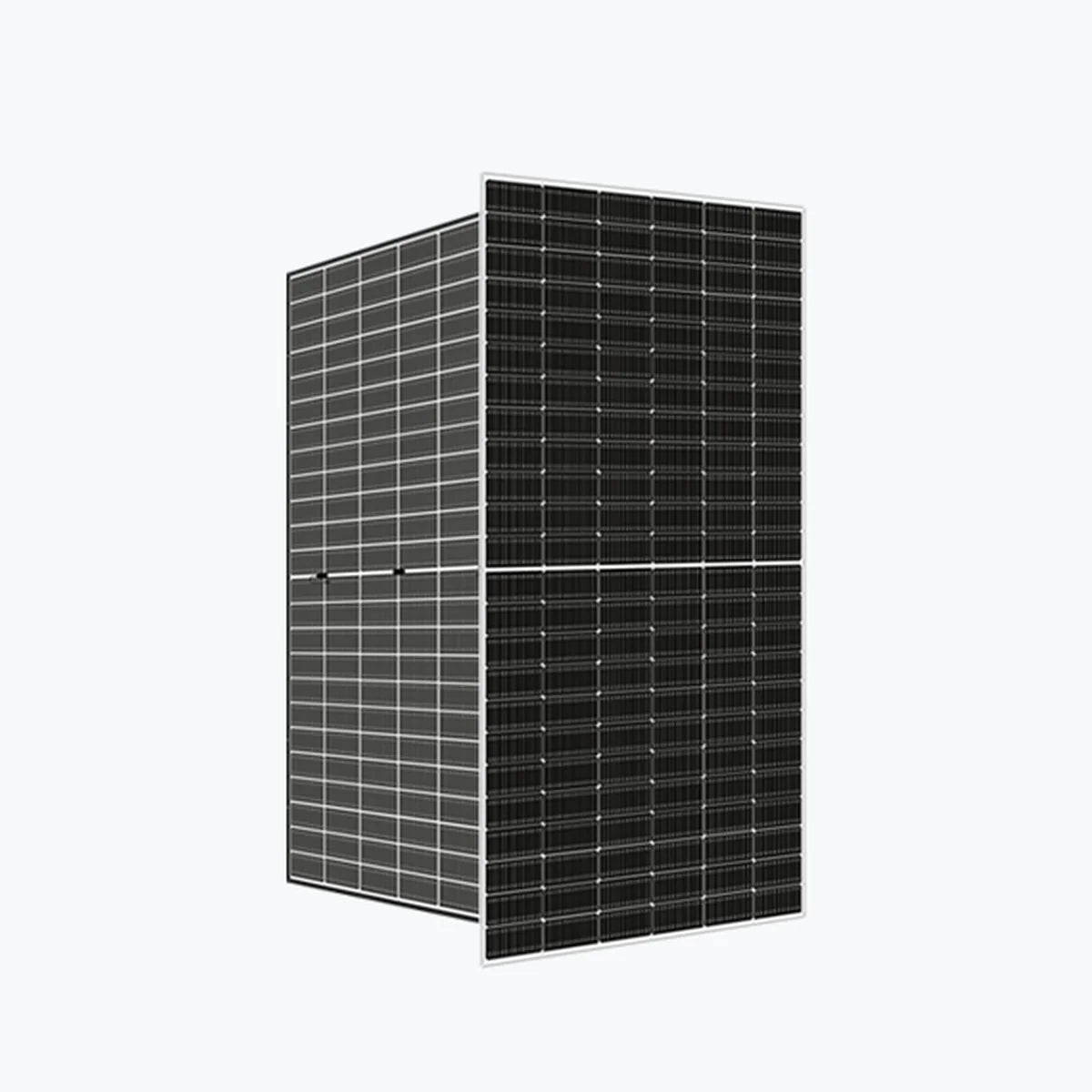

Horay Solar HS680TC-MHG-D
Horay Solar HS680TC-MHG-D
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8687
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. HS680TC-MHG-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 680 Wp Voltage at Maximum Power (Vmpp) 39.7 V Current at Maximum Power (Impp) 17.13 A Open Circuit Voltage (Voc) 47.8 V Short Circuit Current (Isc) 18.15 A Panel Efficiency 21.9 % Maximum Power (Pmax) 520 Wp Voltage at Maximum Power (Vmpp) 37.32 V Current at Maximum Power (Impp) 13.94 A Open Circuit Voltage (Voc) 45.41 V Short Circuit Current (Isc) 14.63 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 38.5 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, N-type
Power Range: 680 ~ 720 Wp
Panel Efficiency: 21.9 ~ 23.2 %
Weight: 38.5 kg
Seller: Horay Solar Co., Ltd
Country: China -
