Hounen Solar 550W Solar Panel 144 Cells Bifacial HNM7-SHDB144-550 Assembled in the USA Wholesale 31 panels per pallet
Hounen Solar 550W Solar Panel 144 Cells Bifacial HNM7-SHDB144-550 Assembled in the USA Wholesale 31 panels per pallet
Regular price
$191.36 USD
Regular price
Sale price
$191.36 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0209
- Documents:
- Height: 1.38
- Length: 89.7
- Width: 44.6
Product Description
-

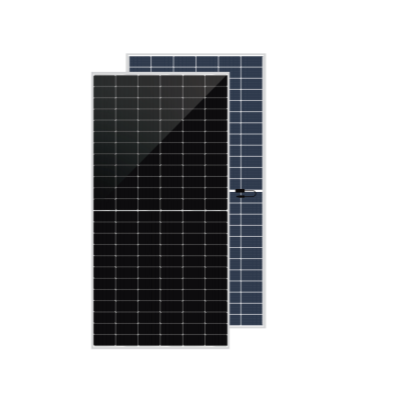

The Hounen Solar HNM7‑SHDB144‑550 is a 550 W bifacial solar module featuring 144 monocrystalline PERC cells in a half‑cut layout, assembled in the USA with a silver anodized frame.
- Rated Power: 550 W • Efficiency: ~21.29%
- Electrical Specs (STC): Voc ~52.5 V; Vmpp & Impp data vary by bin (530–555 W range) • Tolerance: 0 ~ +5 W
- Max System Voltage: ≤1500 V DC • Connector: IP68‑rated MC4; 3 bypass diodes
- Dimensions: Approx. 2278–2280 mm × 1134 mm × ~35 mm (~89.7″ × 44.65″ × 1.38″)
- Weight: Around 31 kg (≈68 lb)
- Operating Temperature: −40 °C to +85 °C • Temp Coeff (Pmax): approx. −0.29%/°C
- Bifacial Gain: ~80% bifaciality; rear‐side yield boost up to ~30%
- Warranty: 12‑year product warranty; 25‑year output warranty
- Packing: 31 panels per pallet (standard wholesale pack)
-
