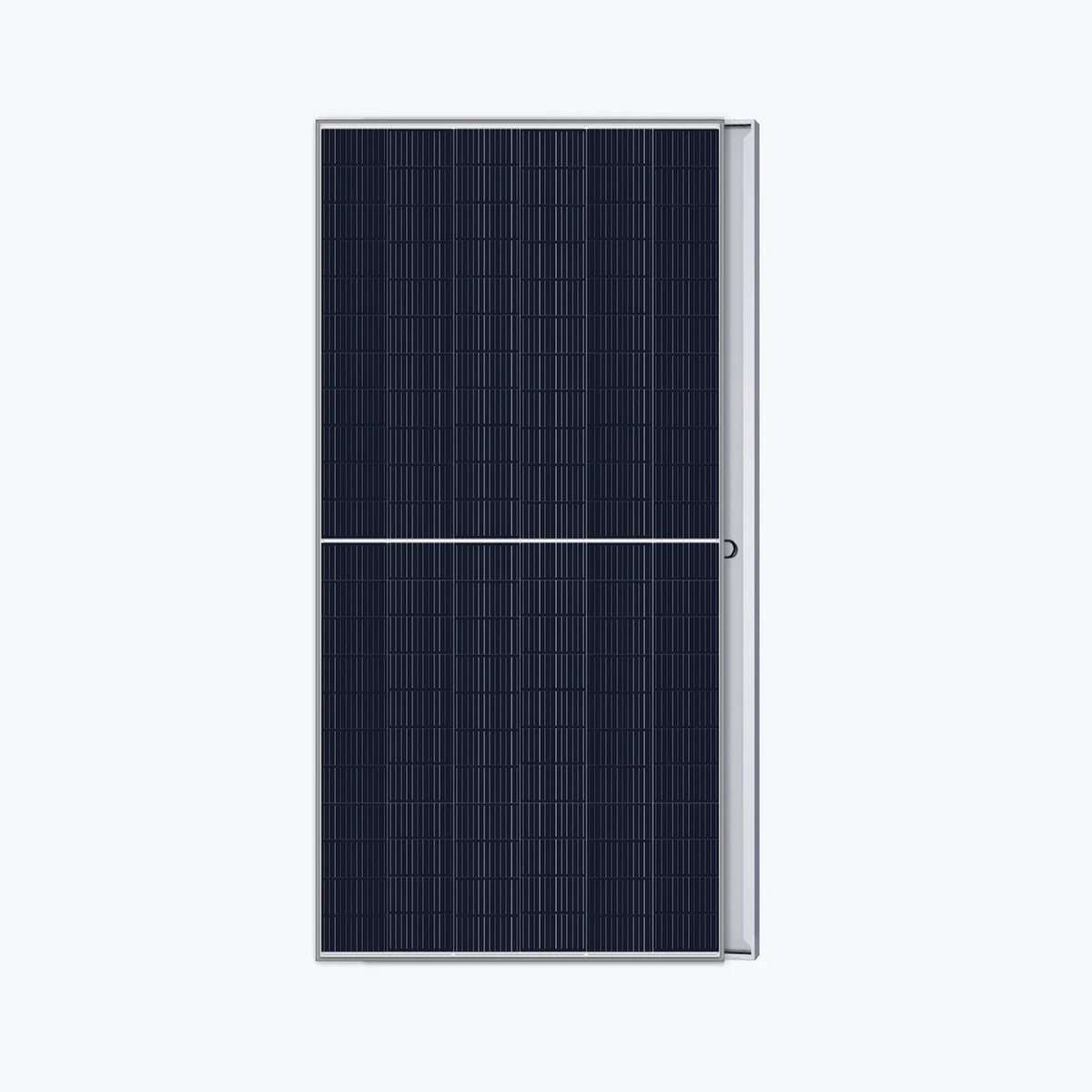

HY SOLAR 620
PayPal Pay in 4 interest-free payments of $54.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-7857
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 620 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 620 Wp Voltage at Maximum Power (Vmpp) 40.9 V Current at Maximum Power (Impp) 15.16 A Open Circuit Voltage (Voc) 48.9 V Short Circuit Current (Isc) 15.96 A Panel Efficiency 23 % Maximum Power (Pmax) 473.1 Wp Voltage at Maximum Power (Vmpp) 38.4 V Current at Maximum Power (Impp) 12.32 A Open Circuit Voltage (Voc) 46.3 V Short Circuit Current (Isc) 12.93 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc +0.043 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.4 kg Cell Size 210×182.3 mm Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 610 ~ 630 Wp
Panel Efficiency: 22.6 ~ 23.3 %
Weight: 32.4 kg
Seller: Hongyuan Green Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-7857 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
