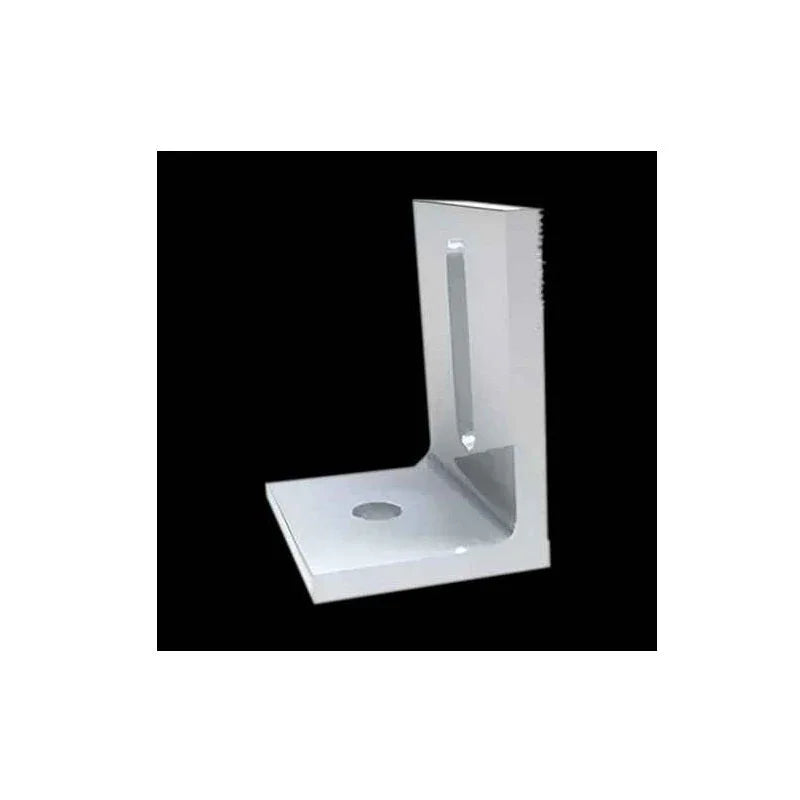

Ironridge QM-TLF10-M1 Quick Mount PV Mill Fixed L-Foot

The Ironridge QM-TLF10-M1 is specifically designed to enhance solar installation efficiency, offering a robust and reliable solution for mounting photovoltaic (PV) arrays on flat roofs. This fixed L-foot ensures stability and strength, accommodating various solar module configurations while maintaining the aesthetic standards homeowners seek. With its durable construction, this mounting foot is ideal for supporting solar systems that need dependable performance under diverse weather conditions.

Product Features

Durable Construction

The Ironridge QM-TLF10-M1 features a construction made from high-quality aluminum and stainless steel, contributing to its corrosion resistance and longevity. This ensures that your solar panel installation remains in optimal condition, significantly reducing maintenance efforts over time.

Versatile Compatibility

This fixed L-foot is adaptable to a wide range of solar panels, allowing for seamless integration into various installations. The Ironridge QM-TLF10-M1 is a flexible solution that caters to different system designs while ensuring efficiency and secure mounting.

Easy Installation

Designed with the user in mind, the Ironridge QM-TLF10-M1 allows for quick and easy installation. The straightforward design minimizes installation time and complexity, enabling installers to complete projects efficiently without compromising safety or support.

Fixed Positioning

This product provides a fixed tilt mounting solution, ensuring precise solar module angles that optimize energy capture throughout the day. Users benefit from consistent performance, as the Ironridge QM-TLF10-M1 maintains an ideal orientation for sunlight exposure.

Secure Mounting

Thanks to its robust design, the Ironridge QM-TLF10-M1 guarantees secure mounting of solar panels, providing peace of mind even in extreme weather conditions. This fixed L-foot is engineered to withstand high winds and snow loads, ensuring safety and durability.

How It Works

The Ironridge QM-TLF10-M1 is designed to be attached directly to flat roofs, using adjustable tilt legs to facilitate the optimal angle for solar modules. This L-foot system integrates with Ironridge XR Rails®, providing a comprehensive mounting solution that promotes solar energy efficiency.

Attachment System

The QM-TLF10-M1 utilizes a simplified attachment system that connects the solar modules to the underlying structure, offering stability and strength. This ensures that each solar panel remains securely anchored, regardless of external conditions.

Support Structure

Featuring North and South tilt legs, the Ironridge QM-TLF10-M1 allows for a wide range of mounting angles, optimizing the solar array's exposure to sunlight for enhanced energy production throughout the day.

Integration with Other Components

This L-foot integrates seamlessly with other Ironridge components, such as UX rails and flashings, creating a comprehensive mounting framework that is both reliable and adaptable for various project needs.

Specifications
