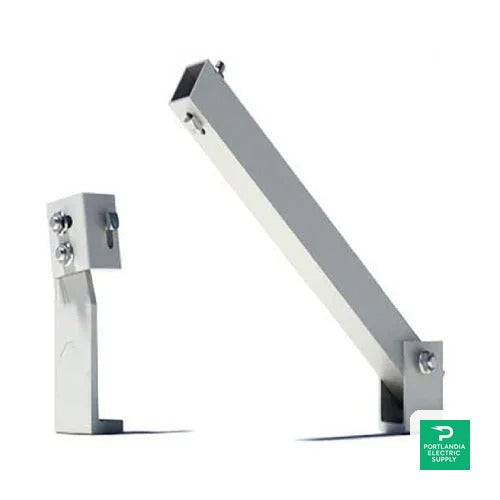

IronRidge Fixed Tilt Leg - TM-FTL-010

The IronRidge Fixed Tilt Leg TM-FTL-010 is designed to provide optimal support and performance for solar modules. This component is specifically engineered to securely hold solar panels at a fixed tilt angle, enhancing energy efficiency. Made with high-quality materials that resist corrosion, it ensures durability and longevity, making it an essential addition for any solar installation. Its unique features cater to various environmental conditions, ensuring robust performance over time.

Product Features

Unique Curved Profile

The IronRidge TM-FTL-010 features a distinct curved profile that allows for efficient spanning capabilities, making it suitable for a variety of installation scenarios. This design not only enhances structural integrity but also supports effective tilting angles up to 30 degrees, optimizing solar exposure throughout the day.

Versatile Length Options

Available in multiple length options, the TM-FTL-010 can accommodate a variety of project requirements. Whether you need a shorter leg or an extended one, this flexibility allows for tailored configurations based on specific wind and snow load calculations for ultimate safety.

Durable Construction Materials

Constructed from high-quality aluminum and stainless steel, the TM-FTL-010 is built to withstand harsh weather conditions. Its clear anodized finish protects against corrosion, ensuring the leg maintains its structural integrity and performance throughout its lifespan.

Integrated Grounding Technology

This fixed tilt leg incorporates an integrated grounding system that simplifies your solar installation process. By eliminating the need for separate grounding components, it enhances efficiency while ensuring compliance with electrical safety standards.

Compatibility with Accessories

The IronRidge TM-FTL-010 is designed to work seamlessly with various IronRidge accessories, promoting a cohesive installation. This compatibility allows for broader project adaptability, ensuring that engineers and installers can easily customize their designs to fit specific needs.

How It Works

The IronRidge Fixed Tilt Leg TM-FTL-010 operates by securely attaching to solar rails and providing a stable base for solar modules. Its carefully engineered design ensures precise alignment and optimal solar panel performance. The leg is versatile in use with features that offer stability and resilience against environmental stresses.

Attachment Mechanism

This product features an easy-to-use attachment mechanism that simplifies the installation process. By integrating into existing rail systems, it reduces installation time while ensuring security and stability for solar panels.

Weather Resistance

By utilizing anodized aluminum and stainless steel, the TM-FTL-010 effectively resists wind, snow, and other harsh weather conditions. Its structural design ensures it withstands prolonged exposure to the elements, offering a reliable support system for solar modules.

Adaptation to Site Conditions

The TM-FTL-010 is specifically designed to adapt to varying site conditions, accommodating different angles and lengths based on the energy needs of each unique installation. This adaptability translates into better energy capturing efficiencies for users.

Specifications

Specification Title	Specification Value
Material	Aluminum and Stainless Steel
Finish	Clear Anodized
Length Options	7", 10", 15", 20", 25", 30"
Angle Adjustment	Up to 30 degrees
Weight	Variable by length
Spanning Capability	Up to 12'
Grounding	Integrated Grounding System
Clamping Systems	Compatible with IronRidge Clamping Systems
Bonding	Legs Electrically Bonded to Rails
Certification	PE Certified
